CAUTION: You must ensure that power connections maintain the proper
polarity. The power source cables might be labeled (+) and (–) to indicate
their polarity. There is no standard color coding for DC power cables. The
color coding used by the external DC power source at your site determines
the color coding for the leads on the power cables that attach to the
terminal studs on each power supply.
NOTE: For information about connecting to DC power sources, see “MX5,
MX10, MX40, and MX80 Routers DC Power Specifications” on page 39.
8. Replace the clear plastic cover over the terminals on the faceplate.
9. Verify that the power cables are connected correctly, that they are not touching or
blocking access to router components, and that they do not drape where people could
trip on them.
10. If you are installing two power supplies, repeat Steps 3 through 9 for the other power
supply.

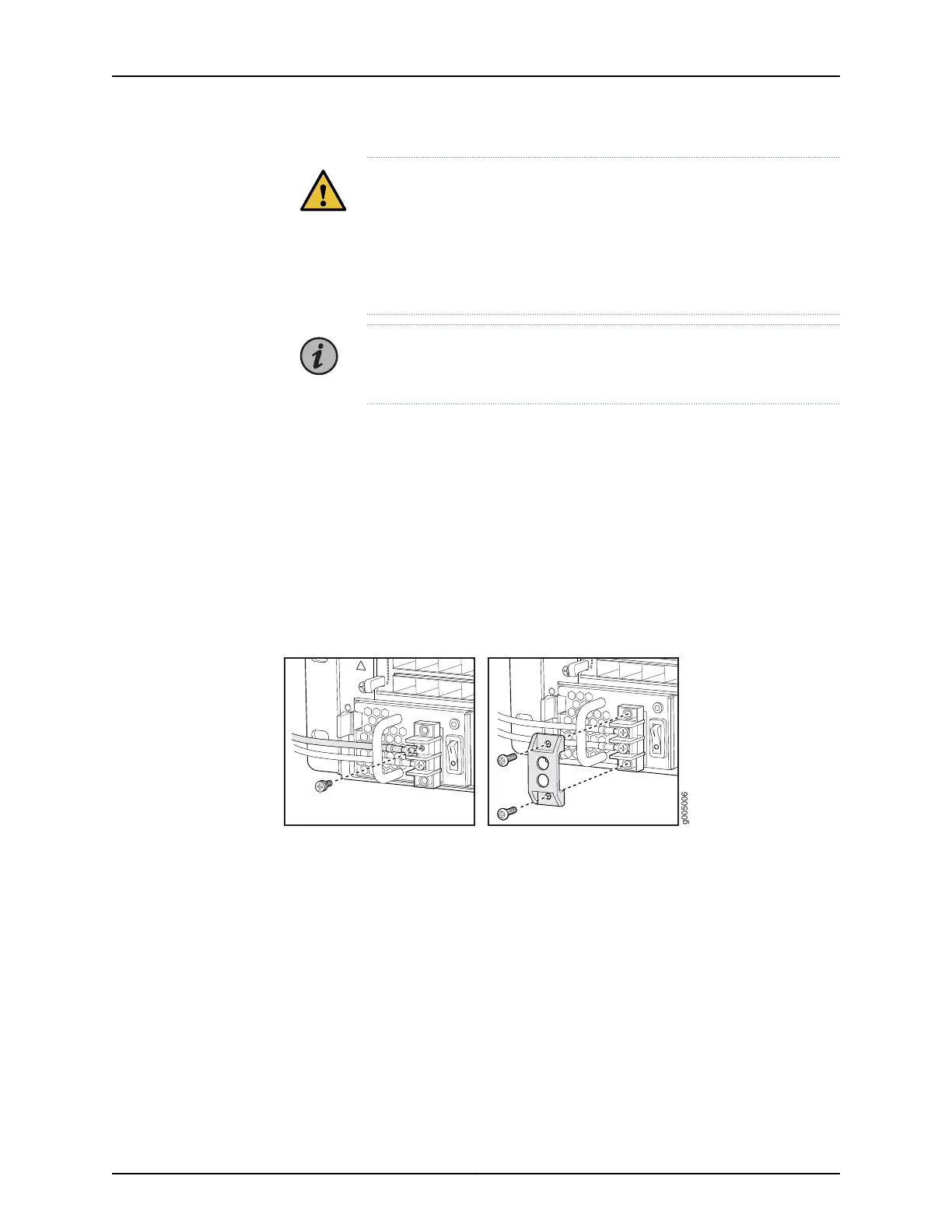

Figure 34: Connecting DC Power to the Router
g005006
See Also MX5, MX10, MX40, and MX80 Router Grounding Specifications on page 62•
Powering On a DC-Powered MX5, MX10, MX40, and MX80 Router
To power on a DC-powered router:
1. Verify that an external management device is connected to one of the Routing Engine
ports (AUX, CONSOLE, or ETHERNET).
2. Turn on the power to the external management device.
3. Verify that the power supplies are fully inserted in the chassis.
Copyright © 2019, Juniper Networks, Inc.88
MX5, MX10, MX40, and MX80 Universal Routing Platforms Hardware Guide

Juniper MX80 Specifications

General

Model	MX80
Category	Network Router
Throughput	80 Gbps
Power Supply	AC or DC
Operating System	Junos OS
Memory	4 GB
Height	1U
