MX5, MX10, MX40, and MX80 Routing Engine LED
The Routing Engine LED appears on the left of the front panel and is labeled RE. For more
information see “Component LEDs on the MX5, MX10, MX40, and MX80 Front Panel” on
page 30.
MX5, MX10, MX40, and MX80 Interface Modules
•
MX5, MX10, MX40, and MX80 Modular Interface Card Description on page 43
•
MICs Supported by MX Series Routers on page 46
•
MX5, MX10, MX40, and MX80 Port and Interface Numbering on page 54
•
MX5, MX10, MX40, and MX80 Modular Interface Card LEDs on page 57
MX5, MX10, MX40, and MX80 Modular Interface Card Description
Modular Interface Cards (MICs) provide the physical connections to various network
media types. MICs receive incoming packets from the network and transmit outgoing
packets to the network. During this process, each MIC performs framing and high-speed
signaling for its media type. Before transmitting outgoing data packets through the MIC
interfaces, the router encapsulates the packets received.
On the fixed MX80 chassis, the MICs come preinstalled and cannot be replaced.
On the modular MX5, MX10, MX40, and MX80 chassis, you can install a variety of MICs
in the two front slots of the router, and the optional Multiservices MIC can be installed in
the rear slot.

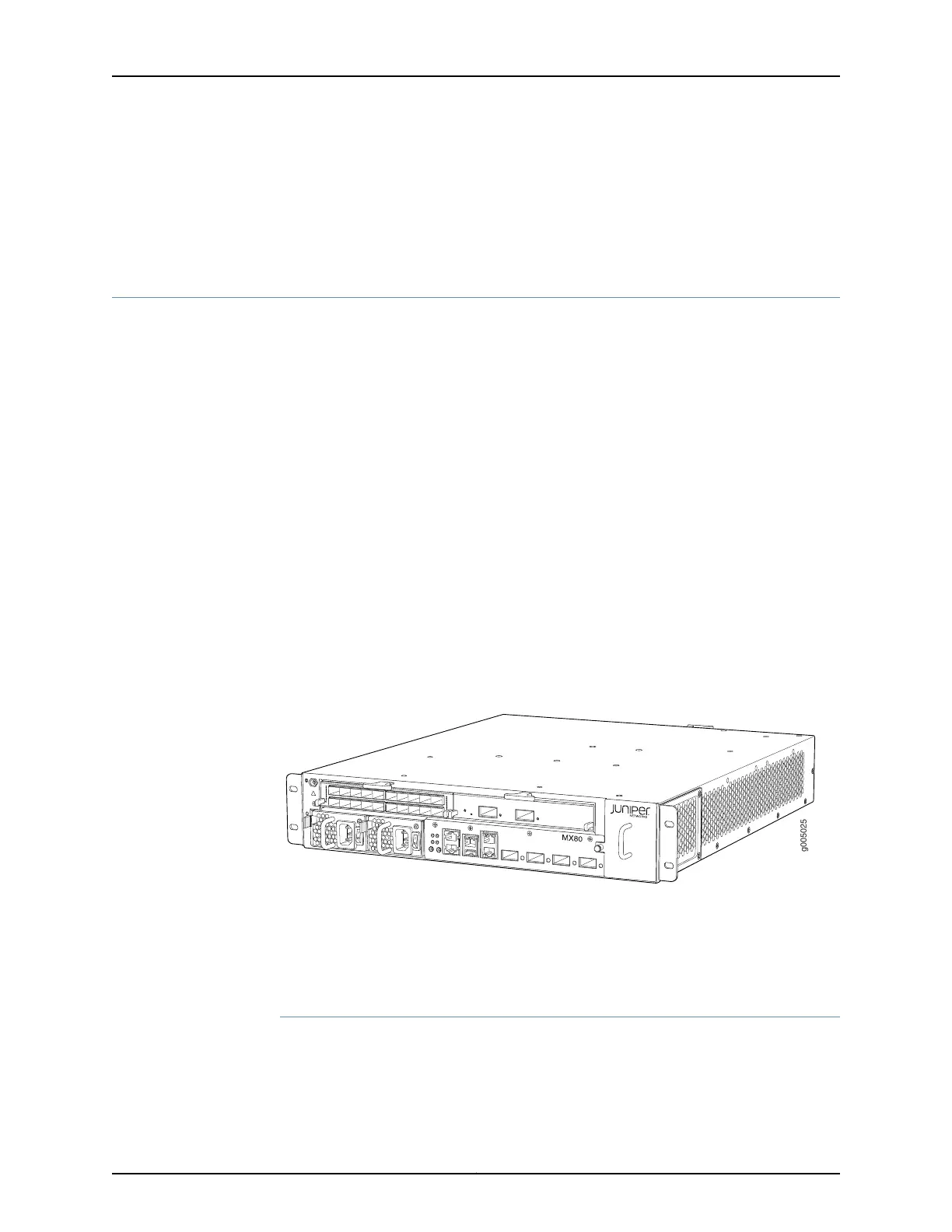

Figure 20: MICs Installed in an MX5, MX10, MX40, and MX80 Router
g005025
The MX5, MX10, MX40, and MX80 routers support the following types of MICs:
•
Front-Pluggable MICs on page 43
•
Fixed (Built-in) MICs on page 44
Front-Pluggable MICs
You can install and remove MICs in the MX5, MX10, MX40, and modular MX80 chassis.
The MIC slots are labeled 1/MIC 0 and 1/MIC 1. Each MIC slot has an ejector handle located
above the MIC slot.
43Copyright © 2019, Juniper Networks, Inc.
Chapter 1: Overview
