MX5 router: Allows usage of the MIC slot labeled 1/MIC 0, which comes prepopulated
with the Gigabit Ethernet MIC with SFP.

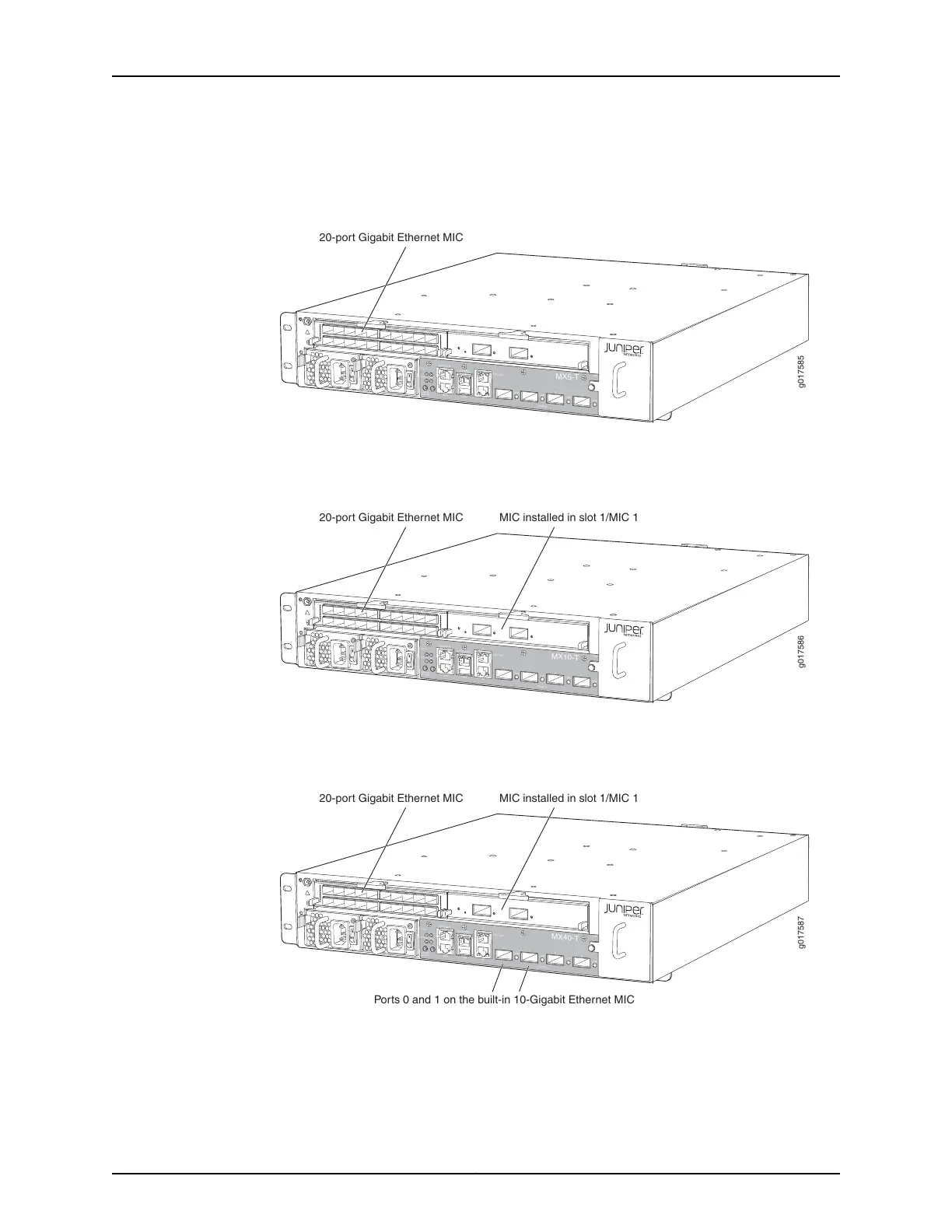

Figure 1: MX5 Router
g017585
MX5-T
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
20-port Gigabit Ethernet MIC
•
MX10 router: Allows usage of the MIC slot labeled 1/MIC 0, which comes prepopulated
with the Gigabit Ethernet MIC with SFP and the second MIC slot labeled 1/MIC 1.
Figure 2: MX10 Router
g017586
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
MX10-T
20-port Gigabit Ethernet MIC
MIC installed in slot 1/MIC 1
•
MX40 router: Allows usage of the front MIC slots and ports 0 and 1 of the built-in
10-Gigabit Ethernet MIC (labeled 0/MIC 0).
Figure 3: MX40 Router
g017587
SYS OK
ONLINE
OFFLINE
RE
CONSOLE
ETHERNET
A
B
AUX
USB
EXT CLK
FAN
0/ MIC 0
PS 1
0
1
2
3
LINK
LINK
LINK
LINK
MX40-T
20-port Gigabit Ethernet MIC
MIC installed in slot 1/MIC 1
Ports 0 and 1 on the built-in 10-Gigabit Ethernet MIC
•
MX80 router: Allows usage of all MIC slots (front and back) and all four ports of the
built-in 10-Gigabit Ethernet MIC (labeled 0/MIC 0).
21Copyright © 2019, Juniper Networks, Inc.
Chapter 1: Overview

Juniper MX80 Specifications

General

Model	MX80
Category	Network Router
Throughput	80 Gbps
Power Supply	AC or DC
Operating System	Junos OS
Memory	4 GB
Height	1U
