CHAPTER 4

Cooling System Description

•

SRX220 Services Gateway Cooling System on page 21

SRX220 Services Gateway Cooling System

The cooling system for the SRX220 Services Gateway includes two fixed fans. The fans

draw air through vents along the left and right sides of the chassis and exhaust the air

through the back of the chassis.

The airflow produced by the fans keeps device components within the acceptable

temperature range.

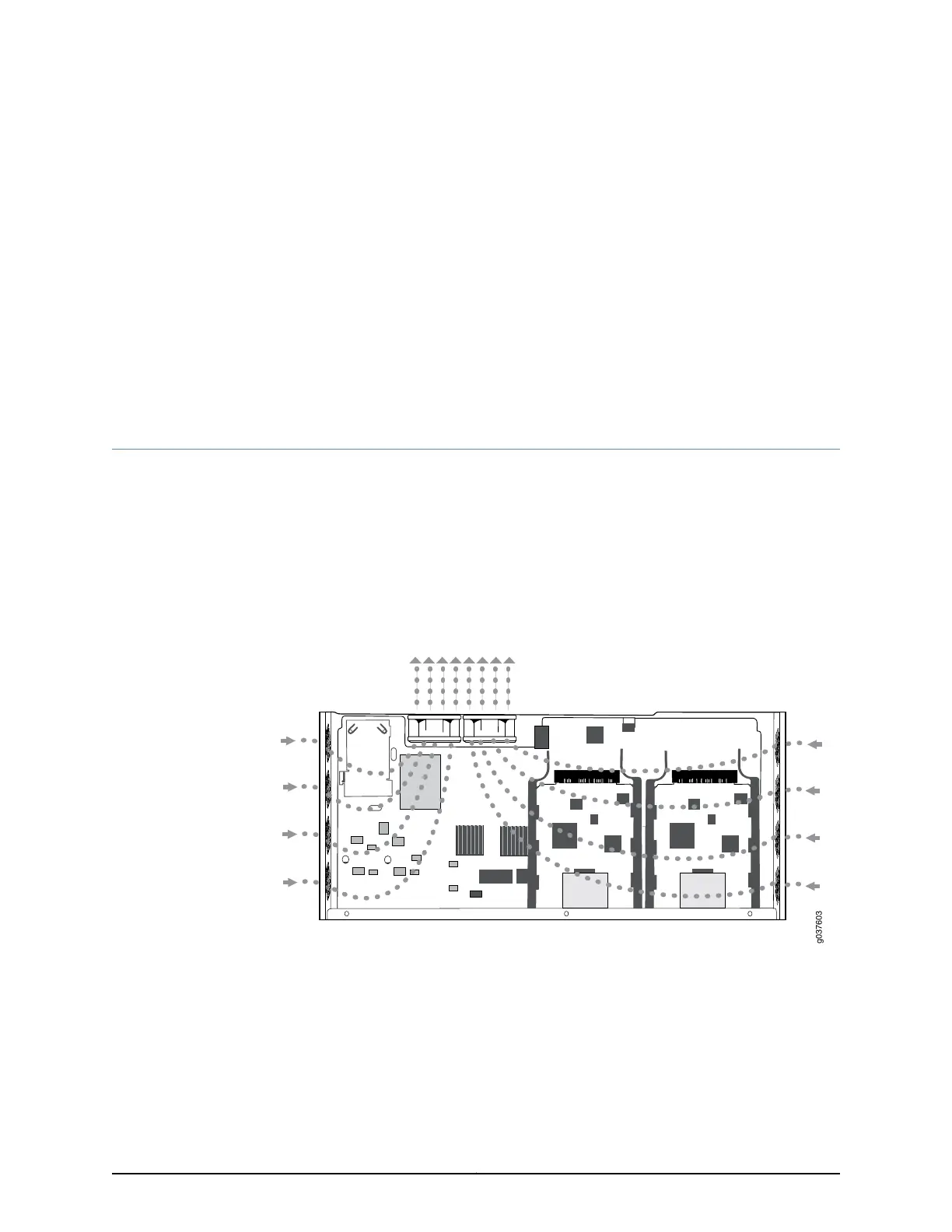

Figure 5 on page 21 shows the airflow for the SRX220 Services Gateway.

Figure 5: Airflow Through the SRX220 Services Gateway Chassis

g037603

Documentation

• SRX220 Services Gateway Specifications on page 29

• SRX220 Services Gateway Front Panel and Back Panel Views on page 11

• SRX220 Services Gateway Power Supply on page 23
