Table 20: RJ-45 Connector Pinouts for the Services Gateway Ethernet

Port (1 Gbps)

SignalPin

BI_DA+1

BI_DA-2

BI_DB+3

BI_DC+4

BI_DC-5

BI_DB-6

BI_DD+7

BI_DD-8

Documentation

Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39•

• RJ-45 Connector Pinouts for the SRX220 Services Gateway Console Port on page 40

RJ-45 Connector Pinouts for the SRX220 Services Gateway Console Port

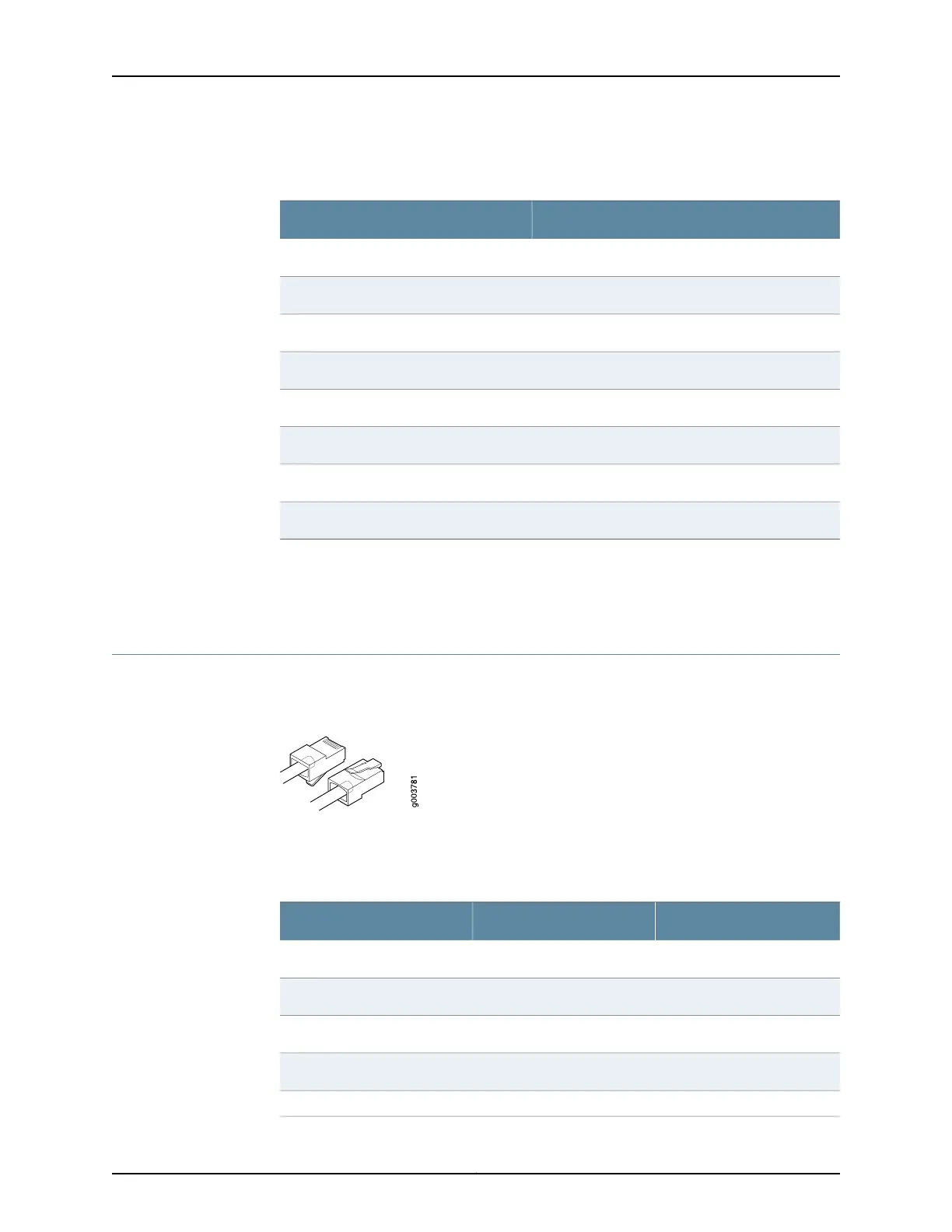

Figure 9 on page 40 shows the RJ-45 connector pinouts for the console port.

Figure 9: Console Cable Connector

Table 21 on page 40 describes the RJ-45 connector pinouts for the console port.

Table 21: RJ-45 Connector Pinouts for the Services Gateway Console

Port

DescriptionSignalPin

Request to SendRTS1

Data Terminal ReadyDTR2

Transmit DataTXD3

Signal GroundGround4

Signal GroundGround5

SRX220 Services Gateway Hardware Guide for H Model Numbers
