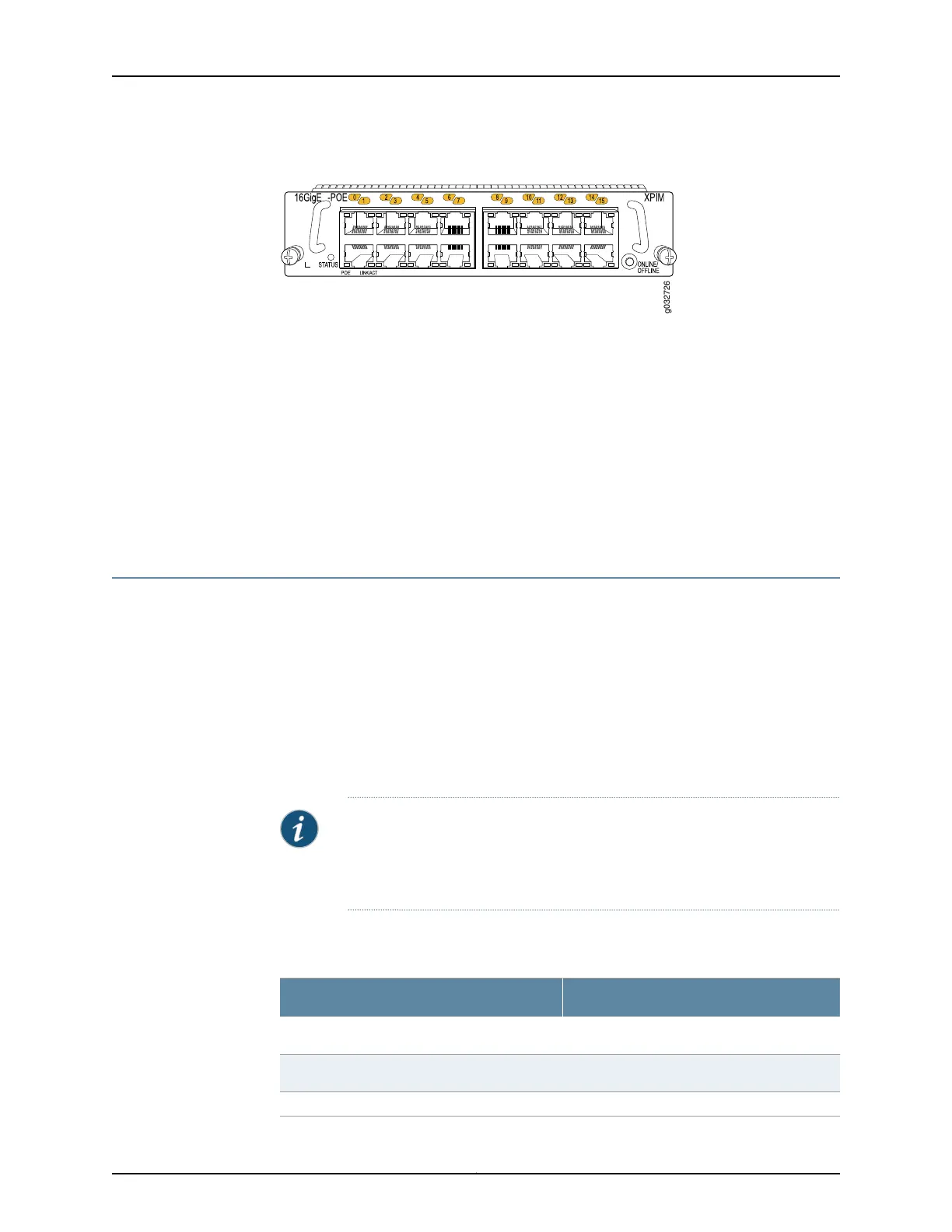

Figure 3: Example of a Double-High, Single-Wide XPIM
g032726
Related
Documentation
MTU Default and Maximum Values for Physical Interface Modules on page 8
Power over Ethernet Support on SRX550 High Memory Services Gateway Interfaces
on page 10
SRX300 Series and SRX550 High Memory Services Gateway Interfaces Power and
Heat Requirements on page 12
Interfaces Port Naming Conventions for the SRX300 Series and SRX550 High Memory
Services Gateways on page 6
Interfaces Port Naming Conventions for the SRX300 Series and SRX550 High Memory
Services Gateways
When configuring a port on a Mini-Physical Interface Module (Mini-PIM) or
Gigabit-Backplane Physical Interface Module (GPIM), you must know the slot and port
number assigned to the Mini-PIM or GPIM. The slot number identifies the slot on the
services gateway in which you insert the Mini-PIM or GPIM, and is typically named 1, 2, 3,
and so on. The port number is the port on the Mini-PIM or GPIM that is being configured.
The name of each network interface has the following format to identify the physical
device that corresponds to a single physical network connector:
type-slot/pim/port
NOTE: For SRX Series Services Gateways, pim equals 0 for the port-naming
convention.
For the LTE Mini-PIM, port equals 0.
Table 5 on page 6 lists the typical interface types and interface numbers.
Table 5: Interface Port Number Examples
Interface Number ExampleInterface Type
t1–1/0/0T1
e1–1/0/0E1
se–1/0/0Serial
Copyright © 2017, Juniper Networks, Inc.6
