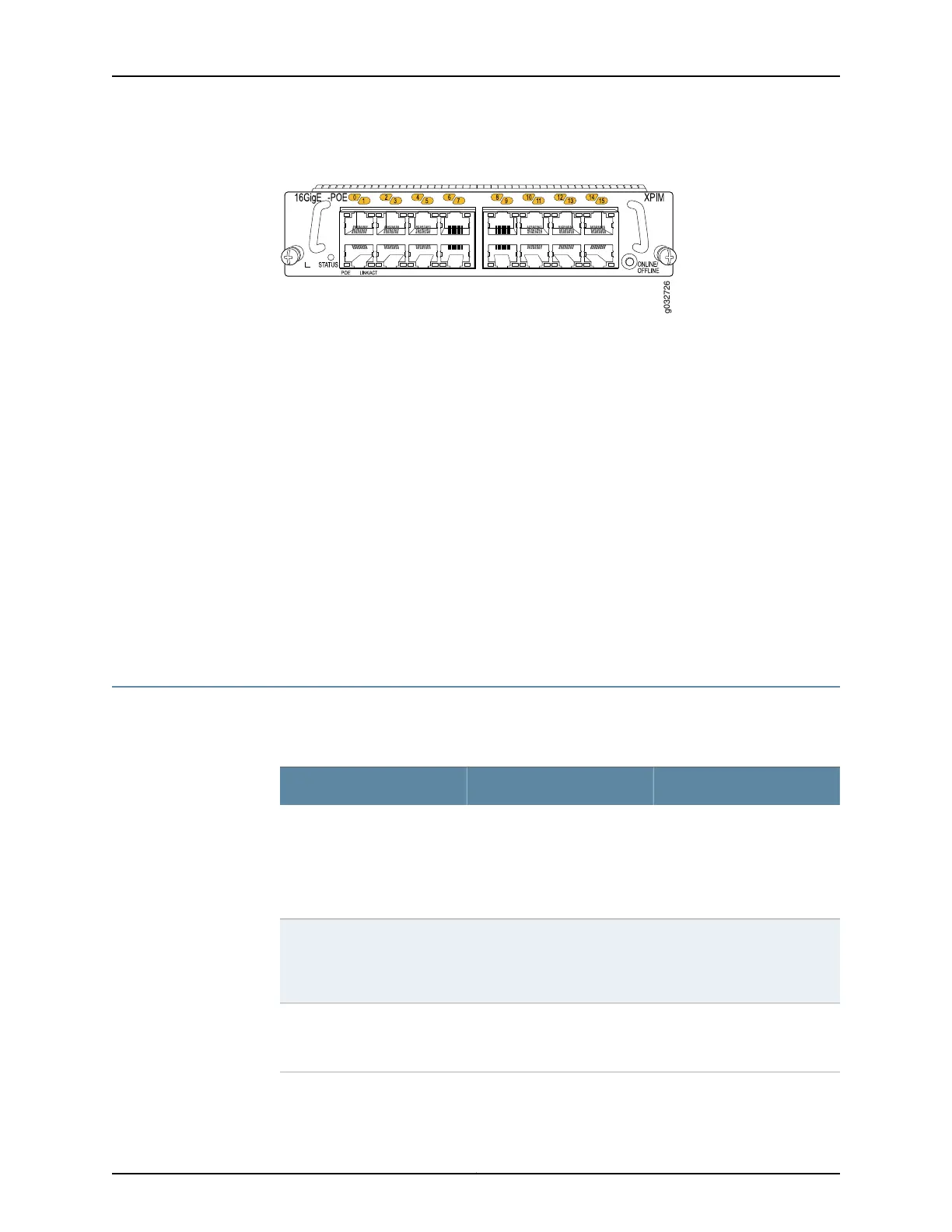

Figure 8: 16-Port Gigabit Ethernet with PoE XPIM
g032726
The 16-Port Gigabit Ethernet XPIM has the following key features:
•
16 triple-speed (10/100/1000 Mbps) Ethernet ports, double-high card
•
PoE support for all ports
•
PCI-Express interface for control and management
•
I2C interface for module monitor and identification
•
Maximum module power of 40 W without PoE
•
JTAG support for boundary scan test
Related
Documentation
16-Port Gigabit Ethernet XPIM (PoE) Components on page 36•
• 16-Port Gigabit Ethernet XPIM (PoE) Hardware Specifications on page 37
• 16-Port Gigabit Ethernet XPIM (PoE) LEDs on page 37
16-Port Gigabit Ethernet XPIM (PoE) Components
The 16-Port Gigabit Ethernet XPIM contains the components listed in Table 26 on page 36.
Table 26: 16-Port Gigabit Ethernet XPIM Components
DescriptionLocationComponent
Use the XPIM
ONLINE/OFFLINE button to
gracefully shut down the XPIM.
Right side of the XPIMXPIM ONLINE/OFFLINE button
The SRX550 High Memory
Services Gateway does not
support hot-swappable
functionality for GPIMs.
Each port on the 16-Port
Gigabit Ethernet with PoE
XPIM supports Power over
Ethernet (PoE).
Middle of the XPIM16 PoE ports labeled 0 to 15
Use the captive screws to hold
the XPIM in place in the
services gateway.
One on each side of the XPIMCaptive screws
Copyright © 2017, Juniper Networks, Inc.36
SRX300 Series and SRX550 High Memory Gateway Interface Modules Reference

Juniper SRX340 Specifications

General

Firewall Throughput	3 Gbps
Maximum Concurrent Sessions	256, 000
Memory	4 GB
Redundant Power Supplies	No
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Storage	8 GB
