CHAPTER 9
VDSL2 Mini-Physical Interface Module
Cable Specifications
•
1-Port VDSL2 Annex A (SRX-MP-1VDSL2-R) Mini-Physical Interface Module Cable
Specifications on page 51
1-Port VDSL2 Annex A (SRX-MP-1VDSL2-R) Mini-Physical Interface Module Cable
Specifications
The 1-Port VDSL2 (Annex A) Mini-Physical Interface Module (Mini-PIM) requires a
standard RJ-11 cable.
Figure 11 on page 51 shows the RJ-11 cable design.

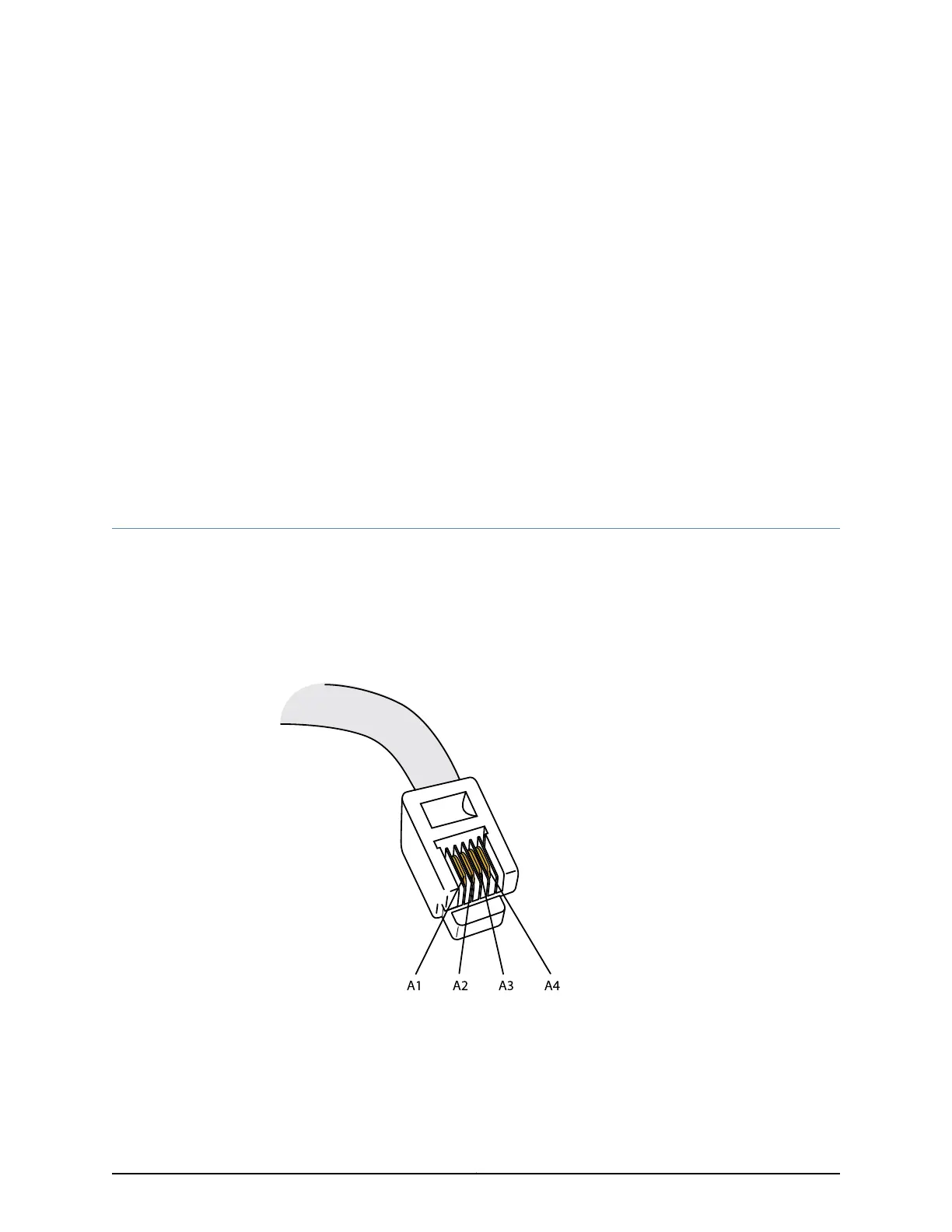

Figure 11: RJ-11 Cable Pinout for 1-Port VDSL2 Annex A
(SRX-MP-1VDSL2-R) Mini-PIM
Table 39 on page 52 shows the pin assignments of the RJ-11 cable.
51Copyright © 2017, Juniper Networks, Inc.

Juniper SRX340 Specifications

General

Firewall Throughput	3 Gbps
Maximum Concurrent Sessions	256, 000
Memory	4 GB
Redundant Power Supplies	No
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% non-condensing
Storage	8 GB
