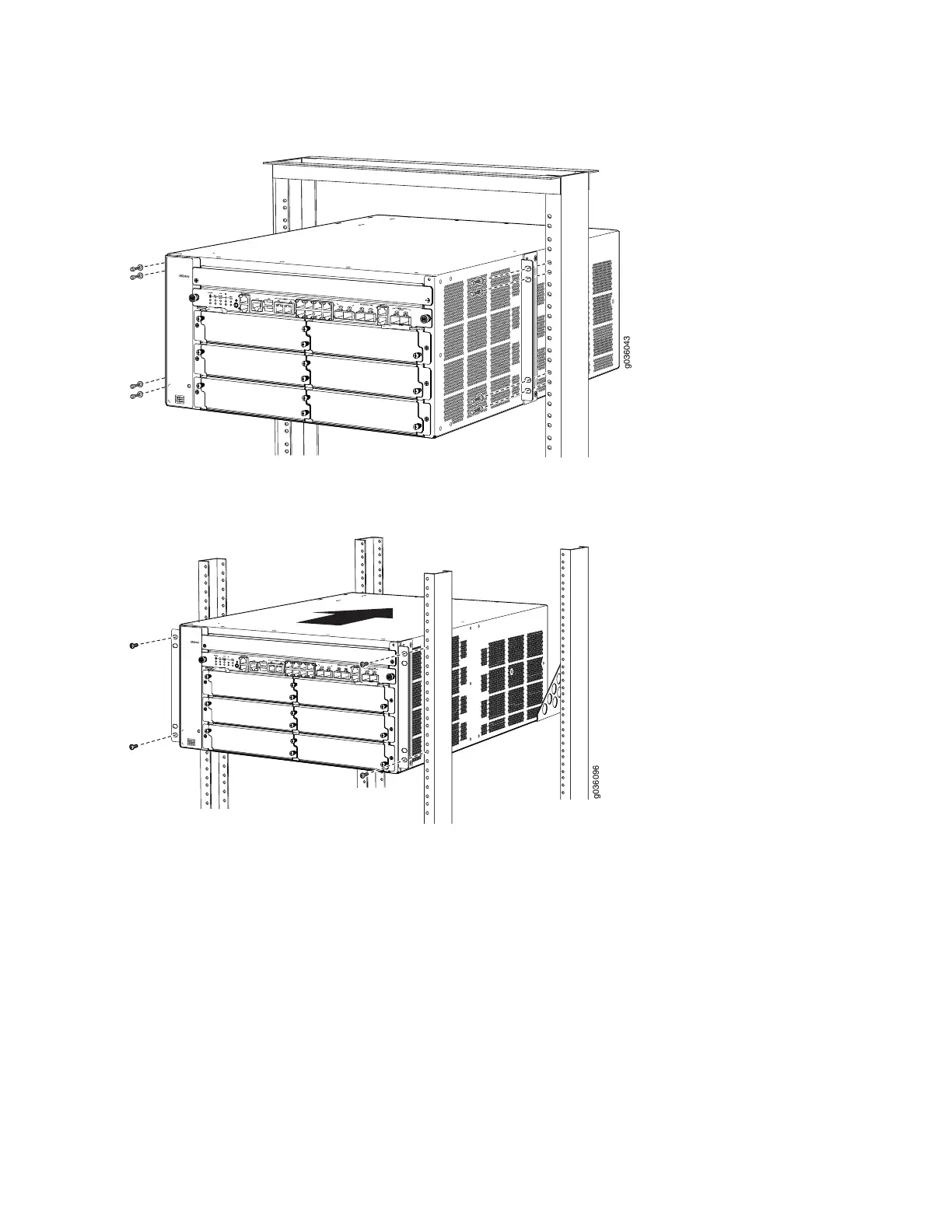

Figure 44: Installing the Services Gateway in a Two-Post Rack
Figure 45: Installing the Services Gateway in a Four-Post Rack
5. Install the remaining screws in each mounting bracket.
6. Move the lift away from the rack.
7. Visually inspect the alignment of the services gateway. If the services gateway is installed properly in
the rack, all the mounting screws on one side of the rack should be aligned with the mounting screws
on the opposite side and the services gateway should be level.
RELATED DOCUMENTATION
116
