NOTE:
For console devices, configure the serial port to the following values:
•
Baud rate—9600
•
Parity—N
•
Data bits—8
•
Stop bits—1
•
Flow control—none
RELATED DOCUMENTATION
Required Tools and Parts for Connecting the SRX3600 Services Gateway | 141
Connecting the SRX3600 Services Gateway to a Network for Out-of-Band Management | 143
Grounding the SRX3600 Services Gateway | 139
Console Port Cable and Wire Specifications for the SRX3600 Services Gateway | 91
SRX3600 Services Gateway Switch Fabric Board | 7
Connecting the SRX3600 Services Gateway to a Network for Out-of-Band
Management
To connect the Routing Engine to a network for out-of-band management:
1. Plug one end of an Ethernet cable with RJ-45 connectors (Figure 59 on page 143 shows the connector)
into the RE ETHERNET 0 port on the front of the SFB.

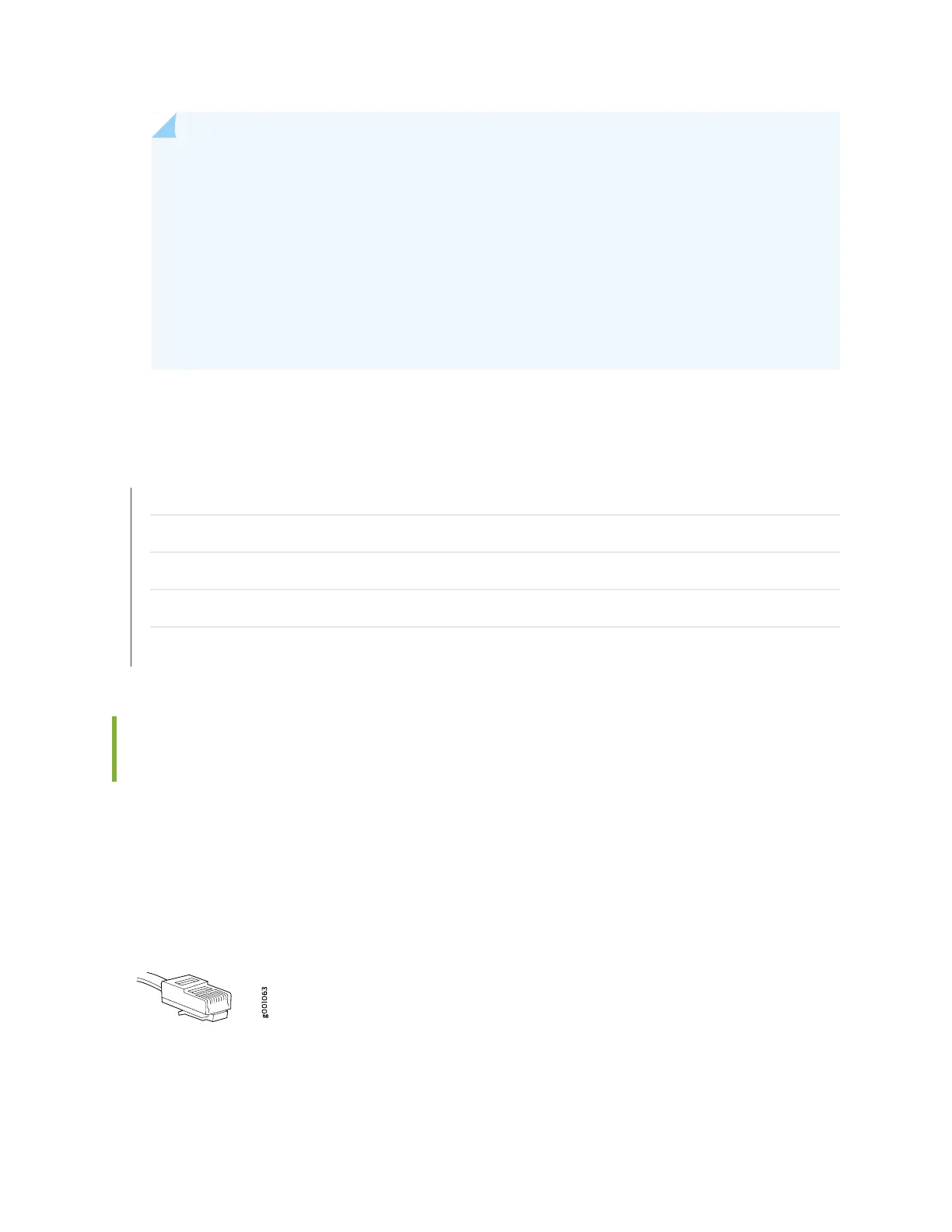

Figure 59: SFB Ethernet Cable Connector
One Ethernet cable is provided with the services gateway.
2. Plug the other end of the cable into the network device.
