CHAPTER 10
Grounding Specifications
IN THIS CHAPTER
SRX3600 Services Gateway Grounding-Cable Lug Specification | 73
SRX3600 Services Gateway Grounding Cable Specification | 74
SRX3600 Services Gateway Grounding-Cable Lug Specification
The cable attaches to the grounding cable (see Figure 36 on page 73) and two M5 screws are used to
secure the grounding cable to the grounding point.

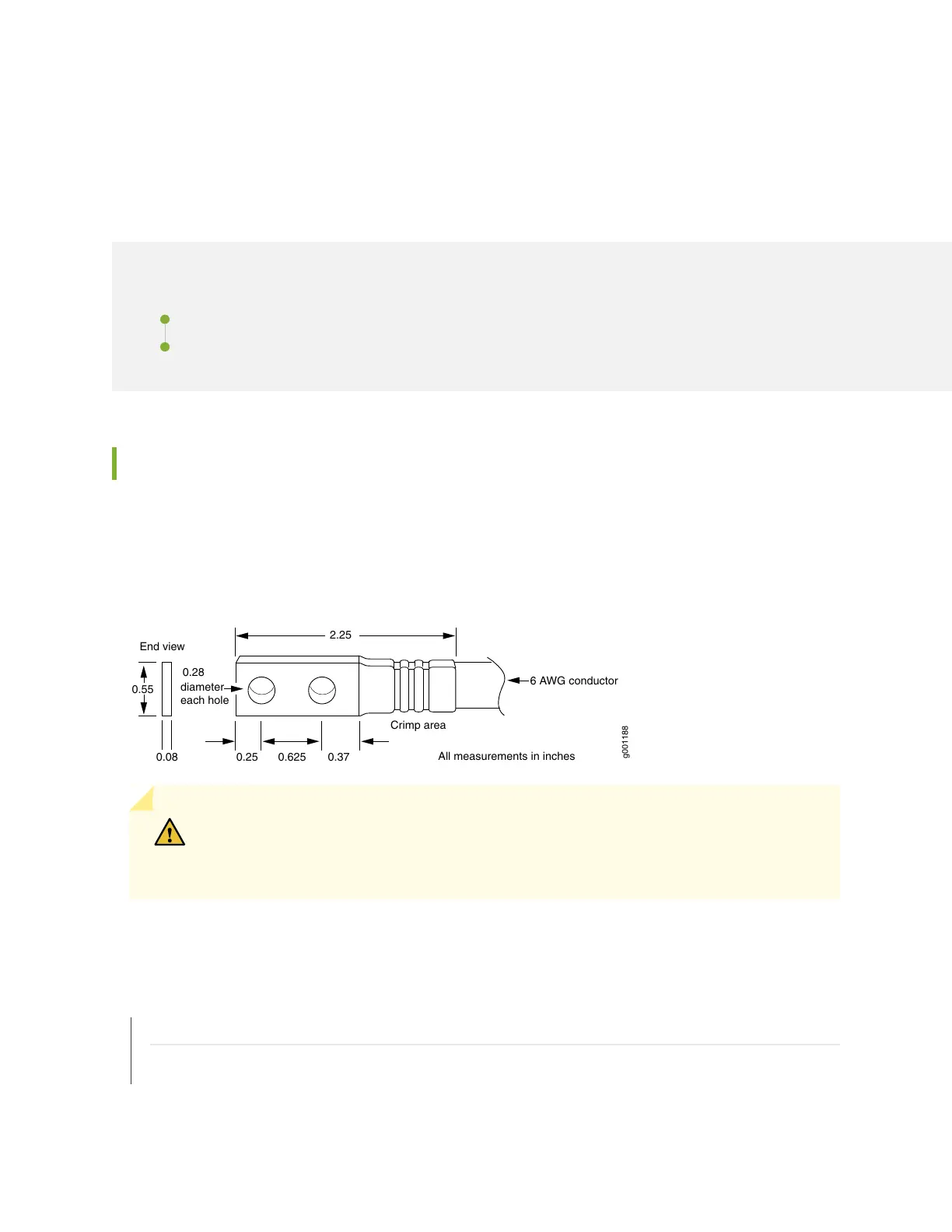

Figure 36: Grounding Cable Lug
Crimp area
6 AWG conductor
All measurements in inches
0.28
diameter
each hole
2.25
0.25 0.370.625
g001188
0.55
End view
0.08
CAUTION: Before services gateway installation begins, a licensed electrician must attach
appropriate cable lugs to the grounding and power cables that you supply. A cable with
an incorrectly attached lug can damage the services gateway.
RELATED DOCUMENTATION
SRX3600 Services Gateway Chassis Grounding Point | 138
SRX3600 Services Gateway Grounding Cable Specification | 74
73
