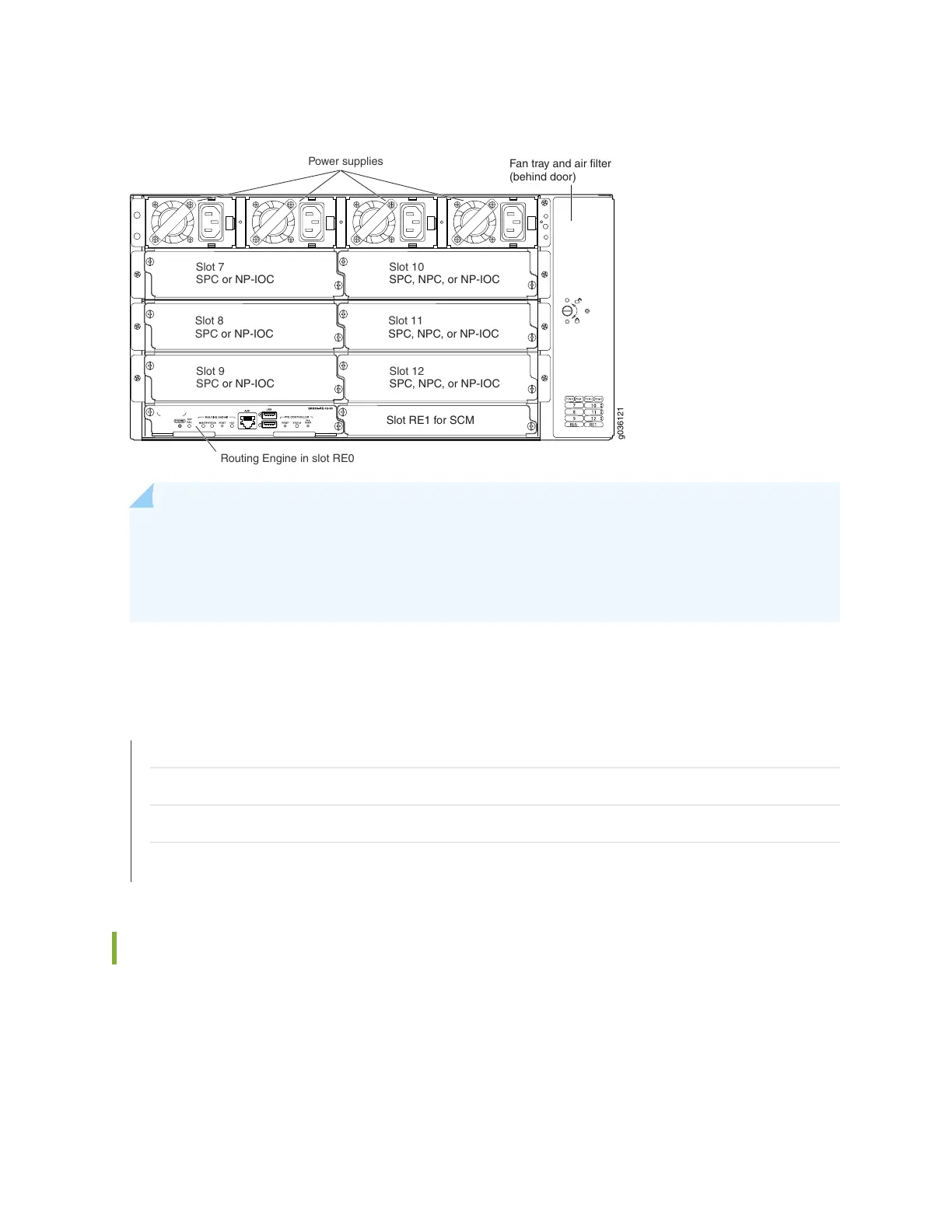

Figure 12: Rear Slots on the SRX3600 Services Gateway
g036121
Power supplies
Routing Engine in slot RE0
Slot 10
SPC, NPC, or NP-IOC
Slot 7
SPC or NP-IOC
Slot 11
SPC, NPC, or NP-IOC
Slot 8
SPC or NP-IOC
Slot 12
SPC, NPC, or NP-IOC
Slot 9
SPC or NP-IOC
Slot RE1 for SCM
Fan tray and air filter
(behind door)
NOTE: A minimum configuration must include one SPC and either one NPC or one NP-IOC.
However, if there are no NPCs in the chassis, the Ethernet ports in the SFB will not be functional.
See“SRX3600 Services Gateway NPCs” on page 14 and“SRX3600 Services Gateway SPCs” on
page 15 for details about these cards.
RELATED DOCUMENTATION
SRX3600 Services Gateway Chassis | 21
Available Components for the SRX3600 Services Gateway | 5
Data Flow in the SRX3600 Services Gateway | 4
Installation Overview for the SRX3600 Services Gateway | 101
SRX3600 Services Gateway Midplane
The midplane in the SRX3600 Services Gateway is in the center of the chassis and provides connections
for installing up to six common form-factor modules (CFMs) through the front of the chassis and up to six
CFMs through the rear of the chassis. See “Hardware Component Locations in the SRX3600 Services
Gateway Chassis” on page 22 for details about where the individual modules can be installed. The power
24
