SRX3600 Services Gateway Chassis Grounding Point
WARNING: To meet safety and electromagnetic interference (EMI) requirements and
to ensure proper operation, you must properly ground the services gateway chassis
before connecting power. See “Grounding the SRX3600 Services Gateway” on page 139
for instructions.
CAUTION: Before services gateway installation begins, a licensed electrician must attach
appropriate cable lugs to the grounding and power cables that you supply. A cable with
an incorrectly attached lug can damage the services gateway.
The services gateway chassis has one grounding point at the upper left corner of the back panel. The
grounding point consists of two threaded holes spaced 0.625-in. (15.86-mm) apart (Figure 55 on page 138).
The grounding point holes fit M5 screws. The accessory box shipped with the services gateway includes
the cable lug that attaches to the grounding cable and two M5 screws used to secure the grounding cable
to the services gateway grounding point.

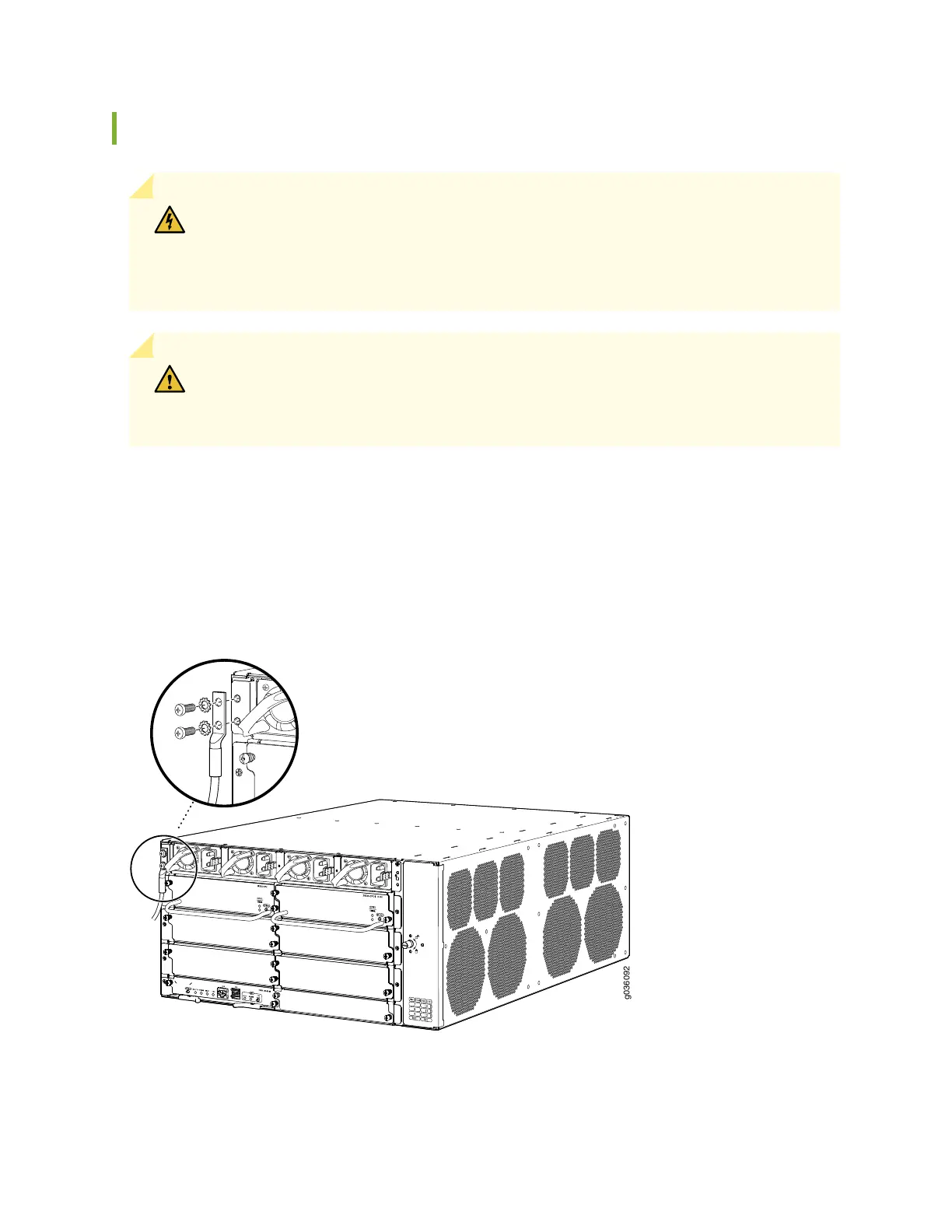

Figure 55: Grounding Point on Rear of SRX3600 Services Gateway
To ground the services gateway, you must connect a grounding cable to earth ground and then attach it
to the chassis grounding point using the two screws provided.
138
