9. Place the Routing Engine on the antistatic mat.
10. Carefully align the sides of the replacement Routing Engine with the guides inside the chassis.
11. Slide the Routing Engine into the slot until you feel resistance, and then press the Routing Engine's
faceplate until it engages the connectors.
12. Press both of the ejector handles inward to seat the Routing Engine.
13. Tighten the captive screws on the left and right of the Routing Engine.

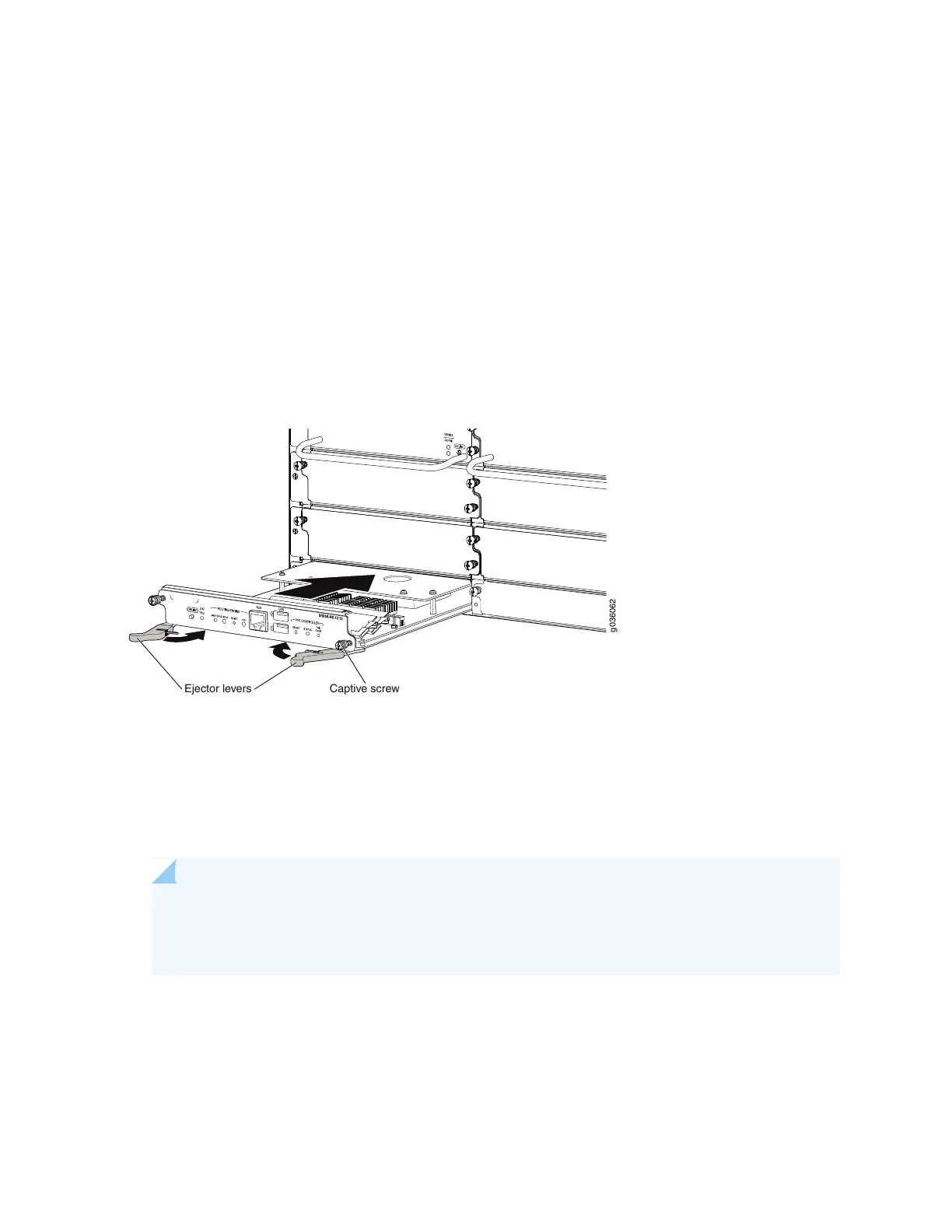

Figure 66: Installing a Routing Engine
g036062
Captive screwEjector levers
14. Reconnect cables that were previously attached to the AUX or USB ports.
15. Power on the services gateway by pressing the Power button on the front panel of the SFB for three
to five seconds. Wait for the services gateway to start. The OK/FAIL LED on the Routing Engine
faceplate should blink green, then light steadily.
NOTE: The Routing Engine might require several minutes to boot. If after this time the OK/FAIL
LED is red, remove and reinstall the Routing Engine. If the OK/FAIL LED remains red, the Routing
Engine is not functioning properly. Contact your customer support representative.
To check the status of the Routing Engine:
user@host> show chassis routing-engine
211
