Installation (continued)
Pump Protection (continued)
® In the above example
this would mean zones
5 through to 6 would
become active and would
cause the pump to operate
against a closed head
Á This could possibly
cause permanent pump,
pipe and pressure
vessel damage
® It is mandatory if the system
test routine is going to
be used, that all unused,
spare zones, should be
linked together and then
looped to the last working
zone with a valve on it

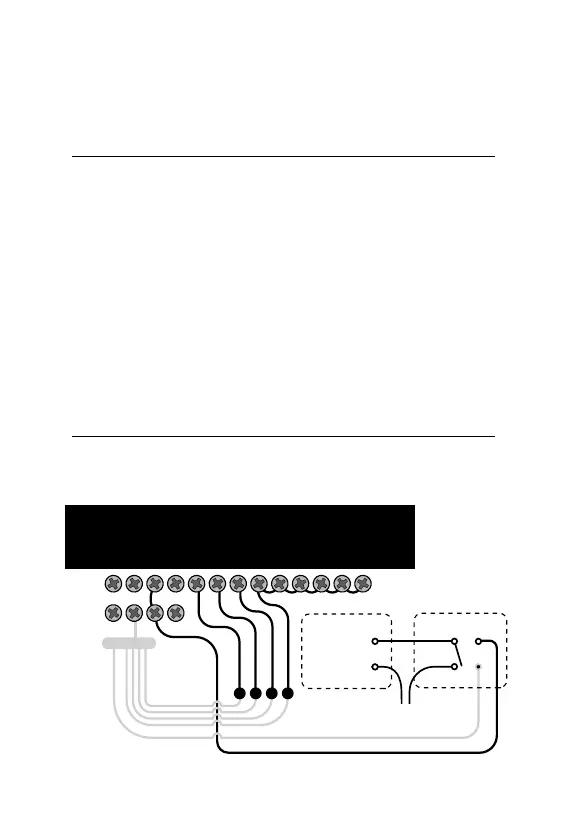

® Using this example,
the connector block
should be wired as per
the diagram below
Pump Installation
® It is recommended to always use a relay between the controller
and the pump starter for single phase pump installation
COMMON
ST1PUMP
SENS
COM
COM
COM
COM
24VAC
24VAC
ST2 ST3 ST4 ST5 ST6 ST7 ST8 ST9
TERMINAL BLOCK
ST1 ST2 ST3 ST4
PUMP
MOTOR
MAGNETIC
STARTER
24V AC RELAY
POWER SUPPLY
To Next Page
