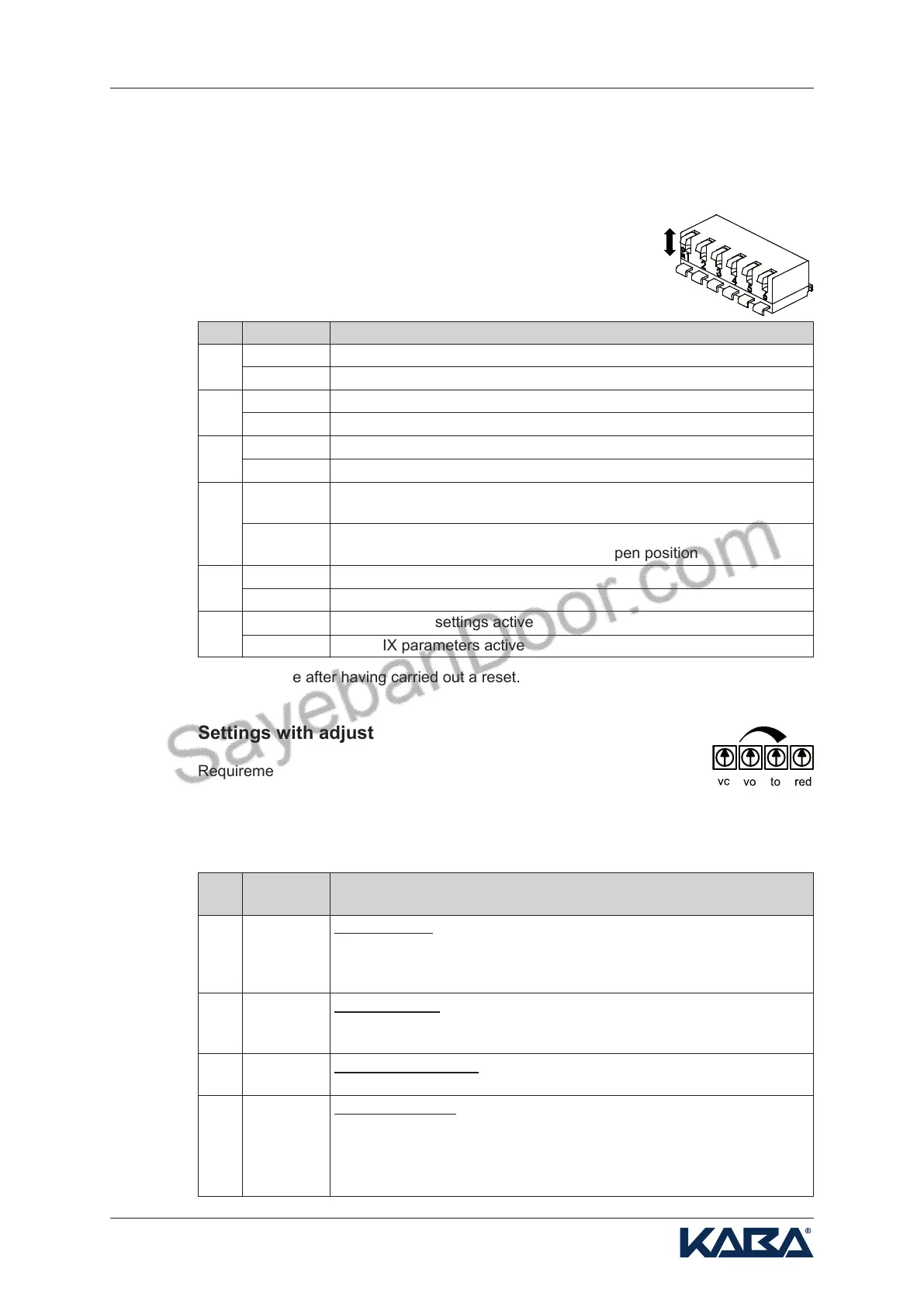

Operating instructions
 
OperatingmodesNIGHT,EXIT,AUTOMAT,MANUALarechosenbytheexternalcom-
manded key-operated program switch or the D-BEDIX.
 
Ondeliveryex-works,allDIPswitchesareinOFFposition.
Function
Sense of rotation GEMO = standard
Sense of rotation GEMO = conversely
On EXIT will be locked
On EXIT will not be locked
without manual locking
with manual locking
Creepage distances standard
without reduced speed in front of Open position
Creepage distance when opening DIN 18650
with reduced speed 200 mm in front of Open position
no BAT-NOT
BAT-NOT controlled
Potentiometer settings active
D-BEDIX parameters active
 
Requirement: DIP-Switch 6 = OFF
Adjusting trimmers (with linear setting range) have always the same factory-pre-settings.
Achangeofthesettingswillonlybeeffectiveatthenextdoormovement.
Function
Closing speed
100...600 mm/s
Themaximumvalueislimitedbymassgauging(dynamicforces
1’400Nresp.creepagespeed400N).
Opening speed
100...600 mm/s
Themaximumvalueisnotlimitedbymassgauging.
Hold open time (day)
0...45 s
Reduced opening
10...100 % of the opening range
If the sliding wings are already in REDUCED-OPEN-Position during
the switch over, they then move slowly towards the new position.
Setting
OFF*
ON*
OFF
ON
OFF
ON
OFF*
ON
OFF
ON
OFF
ON
Factory-
settings
Max.
Max.
Min.
Min.
* only effective after having carried out a reset.
