Kaba SLA - Control; Key-operated Program Switch

0639-990-21---30j_2010.07.indd
SLA
Reset
Reset
0639-990/22j
Page 20 of 46
Operating instructions
 
The door opening is performed automatically via radar or manually by means of a push-
button. The door is automatically closed as soon as the programmed hold-open time has
expired.
 
The door command is carried out by a key-
operated program switch. This is attended
by a simple unnumbered key which is remo-
vable in any position.
Further, a reset button/key is installed on the
key-operated program switch allowing to set
off a setting-up procedure.
The following operating modes can be
selected:
NIGHT
The installation is locked
1
. As
opening command, only the key-
operated impulse switch (with Key
function) is accepted.
AUTOMATIC
Automatic operation (summer or
winter
2
opening width). The instal-
lation is not locked.
MANUAL
The installation opens. The sliding
wings are released and can be
shifted by hand.
EXIT
 One-waytrafcfrominsideto-
wards the outside (inside = dri-
ve unit side). The installation is
locked
1
(shop closing switching
mode).
1
Provided that the locking mechanism (optional) is installed and DIP2 on OFF.
2
 Forswitchingfromsummertowinteropening,anexternalswitchcanbeconnectedto
the control unit.

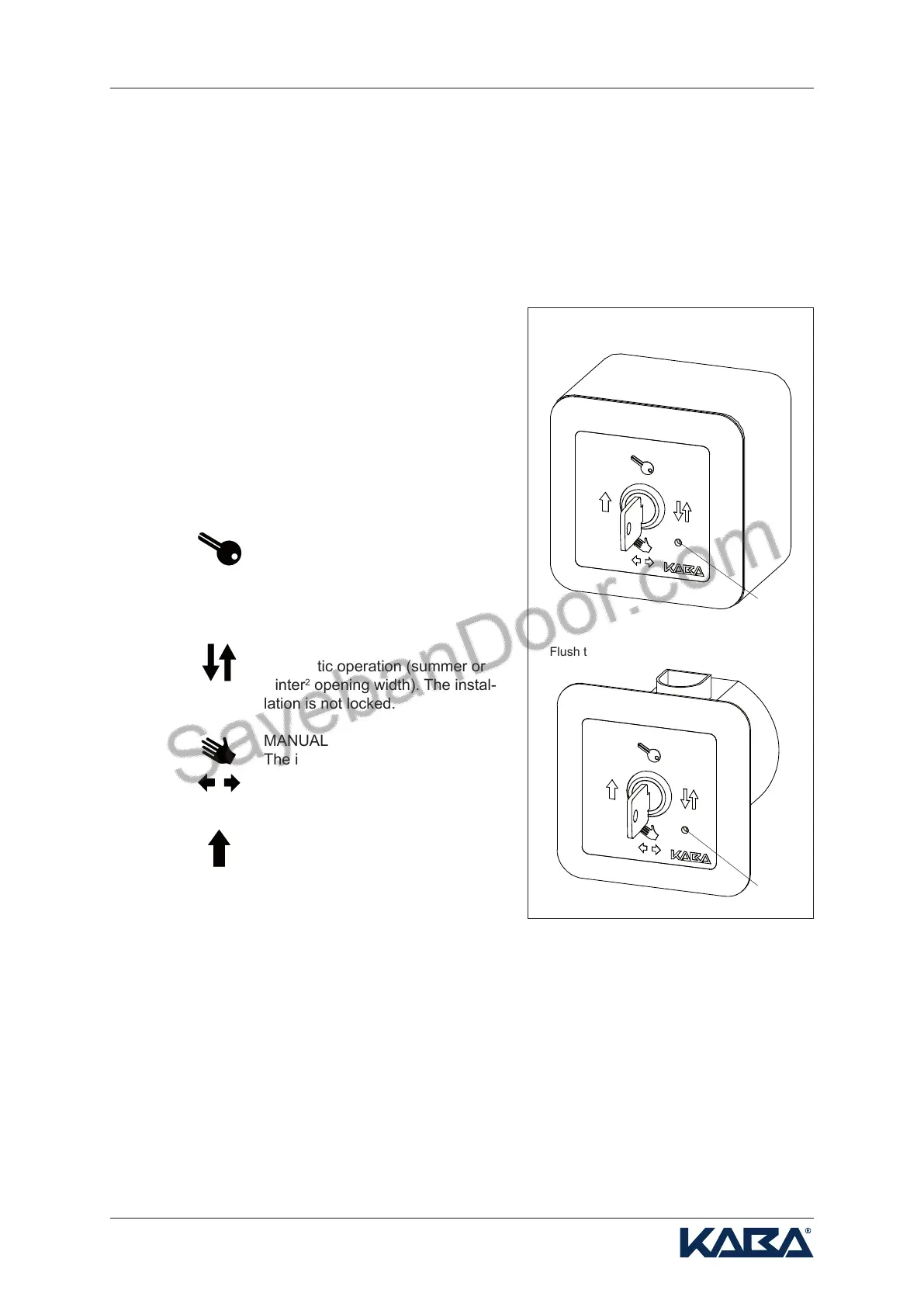

Surface-type mounting
Flush type mounting
