Operating instructions
 

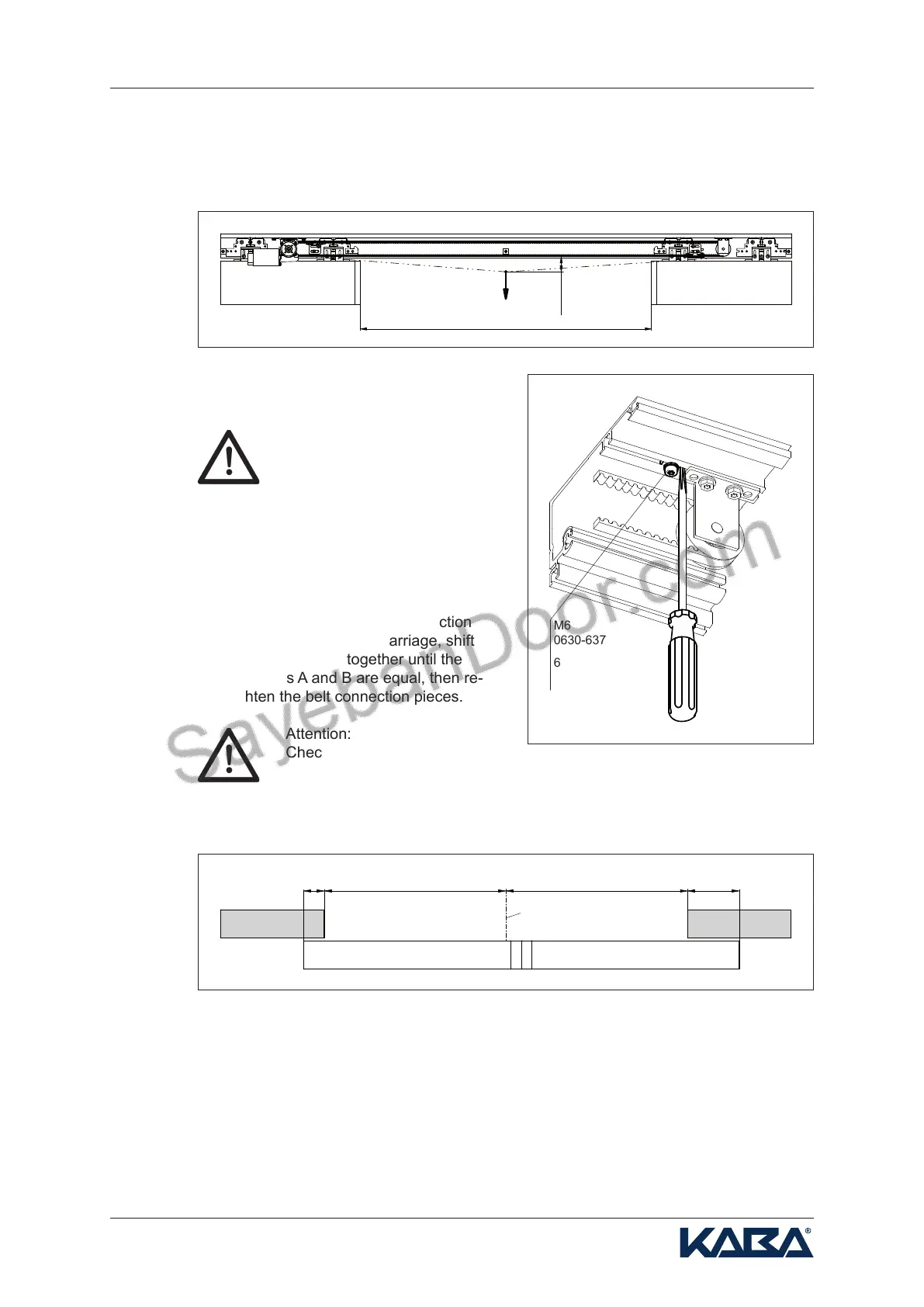

1. Check the tension of the toothed belt (by means of 500 g): Measure 10...20 mm.
2. If required correct the tension: with des-
place the guide unit.
Attention:
Proceed carefully when tigh-
tening the toothed belt. An
obliquely mounted guide unit
respectivelyaninsufcientor
anexcessivetensionofthetoo-
thed belt increases its wear and
causes a noisy operation.
3. Setting the door center:
Slightly loosen both belt connection
pieces on the running carriage, shift
the sliding wings together until the
distances A and B are equal, then re-
tighten the belt connection pieces.
Attention:
Checking the OPEN stop pi-
eces: In the OPEN position, the
sliding doors must touch both
stop pieces.
