Operating instructions
Attention:
First check if all the settings have been made according to the instructions.
Makesurethatallthemovingelementsaredirt-free(thisinuencesthe
static friction).
Settings:
• Prestresstootheddrivingbelt
• ParallelityofGEMOandULEwithregardtothecarrierprole
• Mountingofthecounter-pressureroller
• Adjustmentsofthewings
Check the cleanliness:
• Rollers
• Carrierprole
• Floorguideway

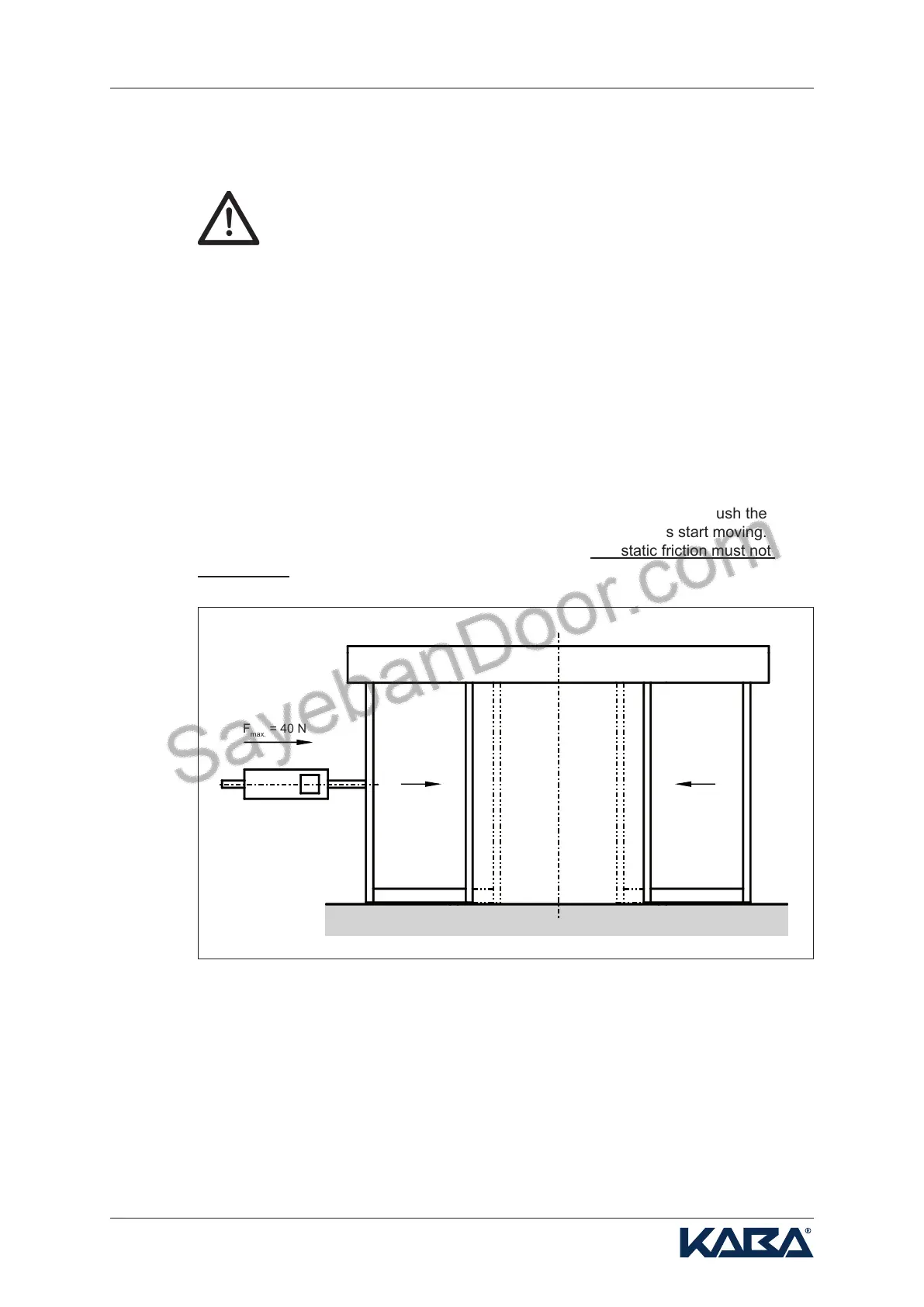

Measuring the static friction (without rubber cable):
Move the wings to the open or half-open position. Using a spring balance, push them
slowly and continuously towards the CLOSED position until the wings start moving. The
maximumappliedforcecorrespondstothestaticfriction.The static friction must not
exceed40N.
Spring balance
