TECHNICAL DESCRIPTION MULTICAL
®
401
5512-091 GB/02.2008/Rev. J1
11

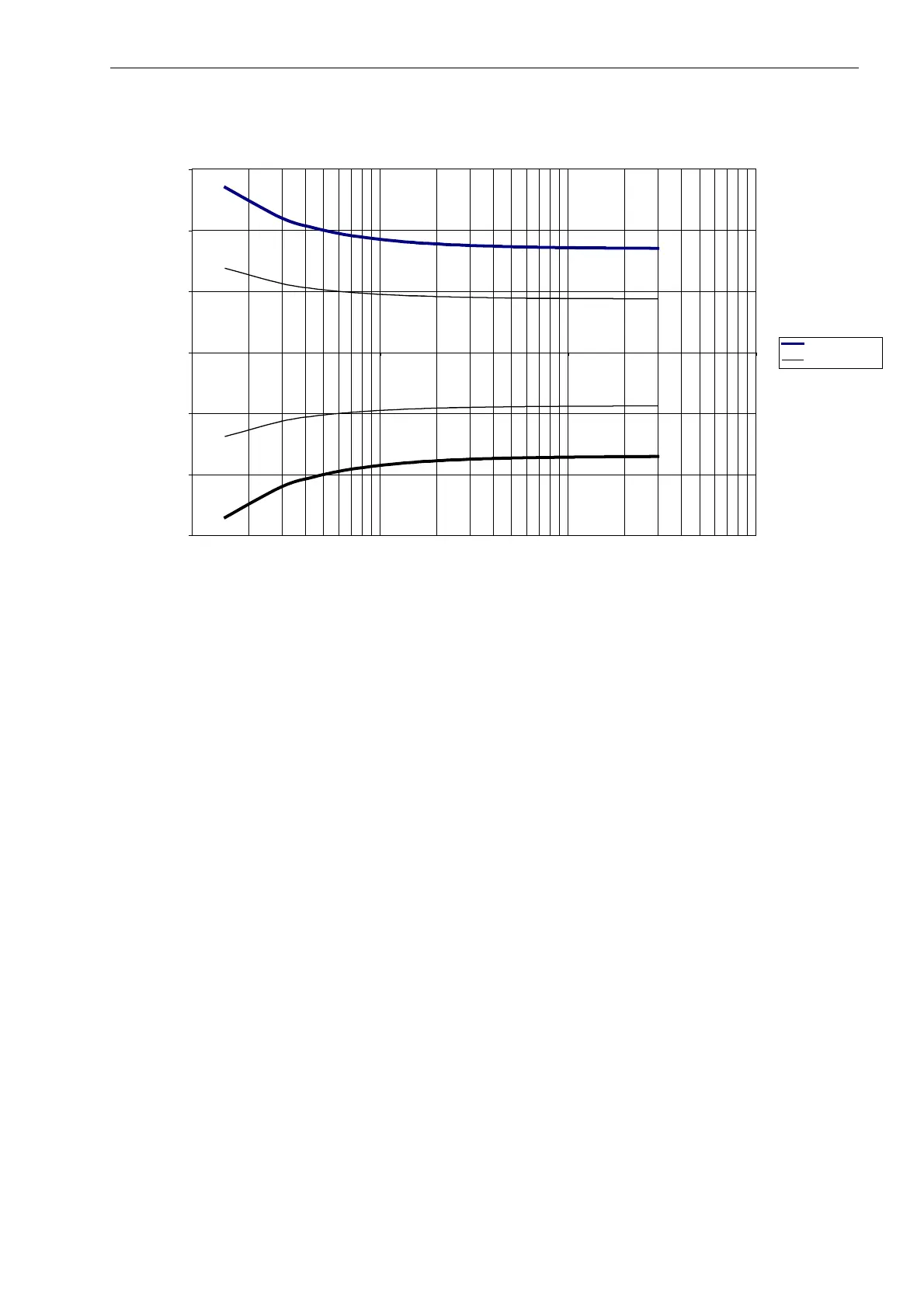

Diagram 1: MULTICAL
®
401 typical accuracy compared with EN 1434-1.
2.5 Materials
Wetted parts
Housing, gland Enkotal (alpha brass)
Housing, flange RG5204 (red brass)
Transducer AISI 316
Gaskets EPDM
Measuring pipe PES 30% GF
Reflectors AISI 304
Flow sensor housing
Top/wall fittings PC + 20% glass
Calculator housing
Top PC
Base ABS with TPE gaskets (thermoplastic elastomer)
Internal cover PP
Flow sensor cable
Silicone cable with internal teflon insulation
MULTICAL
®
401 q
p
1.5 m³/h @
30K
-6,0
-4,0
-2,0
0,0
2,0
4,0
6,0
0,01 0,10 1,00 10,00
q [m³/h]
Tol [%]
Ec+Et+Ef (EN)
Ec+Et+Ef (Typ)
