14.4 Flow meter adjustment
Should it be necessary to adjust the flow sensor during verification, this can be carried out by selecting
“Flowmeter Adjustment” under the “Utility” menu. This function is protected by a password which can only be
disclosed by Kamstrup A/S. Data connection between the PC and MULTICAL
®
401 can be made either by means of
a data cable type 66-99-108 or via verification equipment 66-99-385.
Example: Verification of a MULTICAL
®
401 flow sensor shows following result:
1% af qp: +1.1%
10% af qp: +0.3%
100% af qp: -0.1%
To adjust the deviation following corrections must be typed in:
1% af qp: -1.1%
10% af qp: -0.3%
100% af qp: +0.1%
Adjustments larger than +/-5% should not be carried out, as this might be caused by a faulty flow sensor.

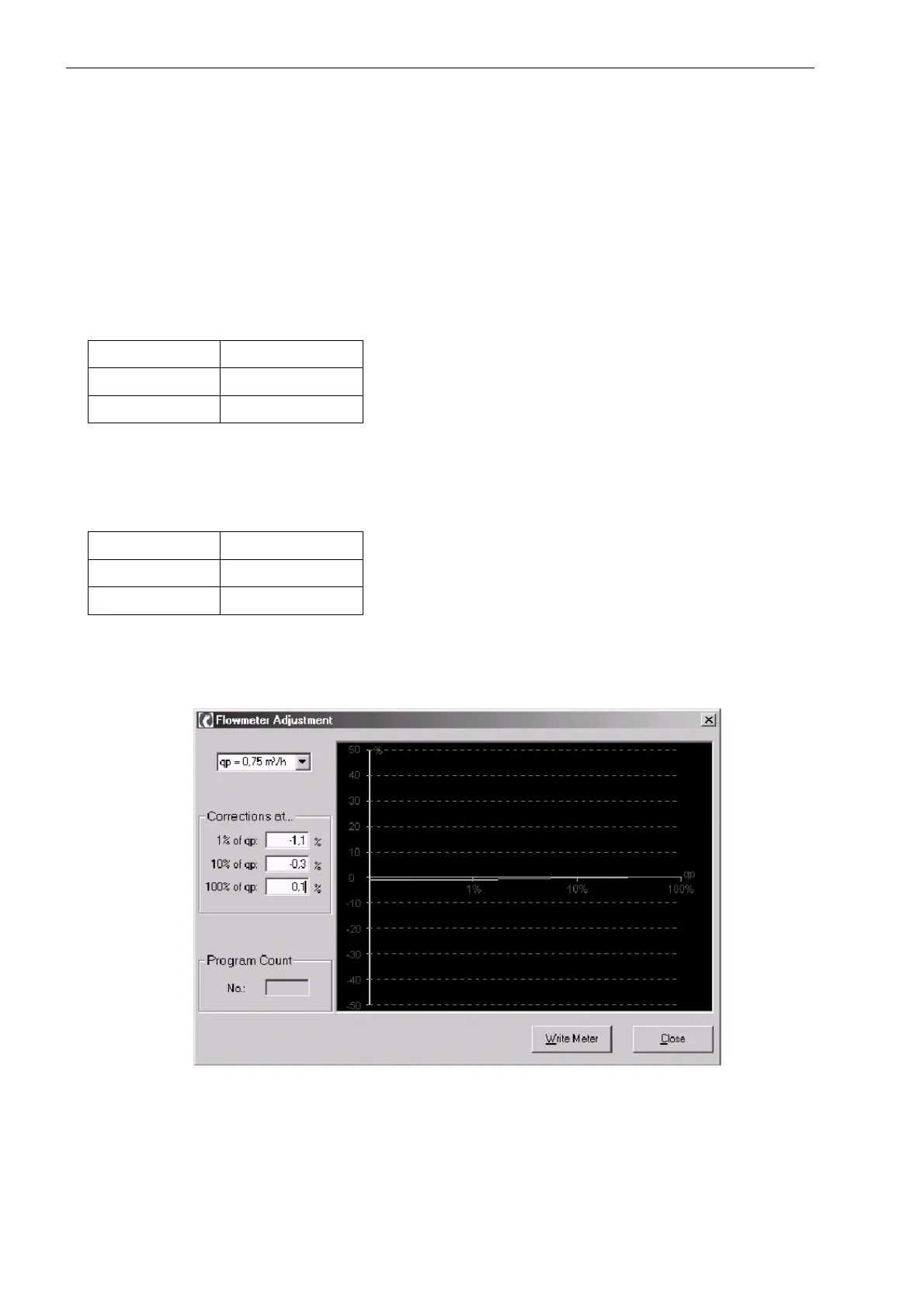

Figure 59
