13.4 Pulse Interface for MULTICAL
®
401
When the meter is in testing mode, verification on rigs with pulse interface, the pulse interface type type 66-99-
109 is to be used. Type 66-99-109 can be used for both MULTICAL
®
Compact (MCC) and for MULTICAL
®
401 (MC
401). Please note, that the pulse values change for meters larger than qp 2.5 m
3
/h.

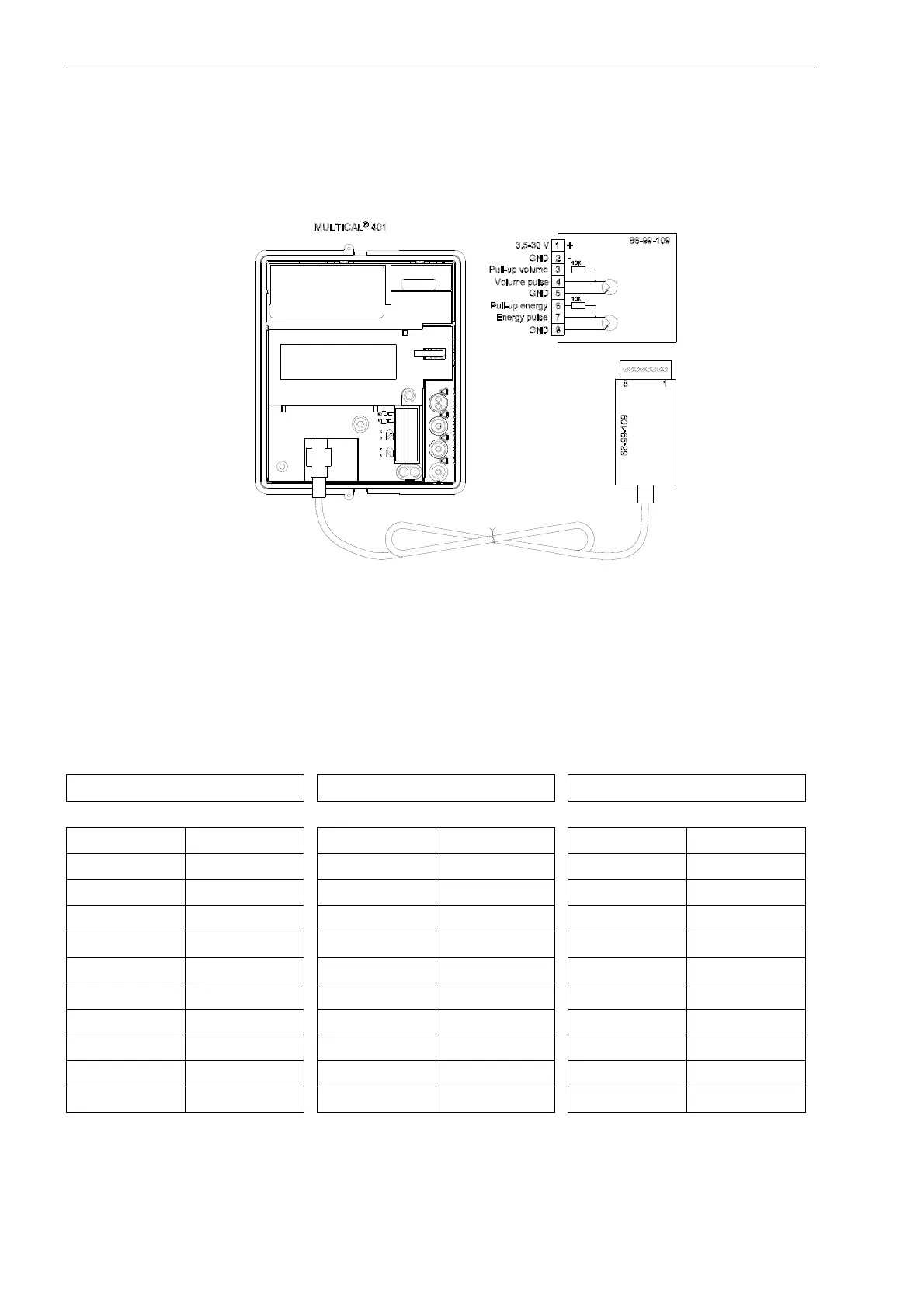

Figure 47
Supply: 3.5-30 VDC  5 mA
Stand-by:
 1 mA
Pulse:
 30 V  15 mA
Puls duration: 50% Duty cycle or pulse
 0.1 sec.
Meter size Energy (pulses/kWh) Volume (pulses/litre)
MCC MC 401 MCC MC 401 MCC MC 401
- qp 0.6 - 1000 - 100
qp 0.75 - 1000 - 100 -
- qp 1.5 - 1000 - 100
qp 1.5 - 1000 - 100 -
qp 2.5 - 1000 - 100 -
- qp 3.0 - 500 - 50
- qp 3.5 - 500 - 50
- qp 6.0 - 250 - 25
- qp 10 - 125 - 12.5
- qp 15 - 125 - 12.5
Table 22
