TECHNICAL DESCRIPTION MULTICAL
®
401
5512-091 GB/02.2008/Rev. J1
44
10 Supply modules
Type 66-
      
Supply
No module 0
Battery, D-cell 2
230 VAC supply module 7
24 VAC supply module 8
MULTICAL
®
401 must always be supplied internally with approx. 3.6 VDC between terminals 60(+) and 61(-). This
is obtained through one of the following supply modules:
10.1 Built-in D-cell lithium battery
A lithium D-cell battery must always be used for the meter. The battery is placed in the upper part of the
connection bracket and is easily replaced solely by using a screw driver.
The battery lifetime partly depends on the temperature that the battery is exposed to, and partly if a fast
calculation interval has been selected.
Battery lifetime
Application
Normal mode Fast mode
MULTICAL
®
401 mounted on the wall 12 years 4 years
MULTICAL
®
401 mounted on the flow part 10 years 3 years
Table 17
Above battery lifetimes apply to standard installations. The following may reduce the battery lifetime:
- Warm ambient temperature
- Frequent data communication
- Connection of data modules
- Fast mode
For further information, please contact Kamstrup.

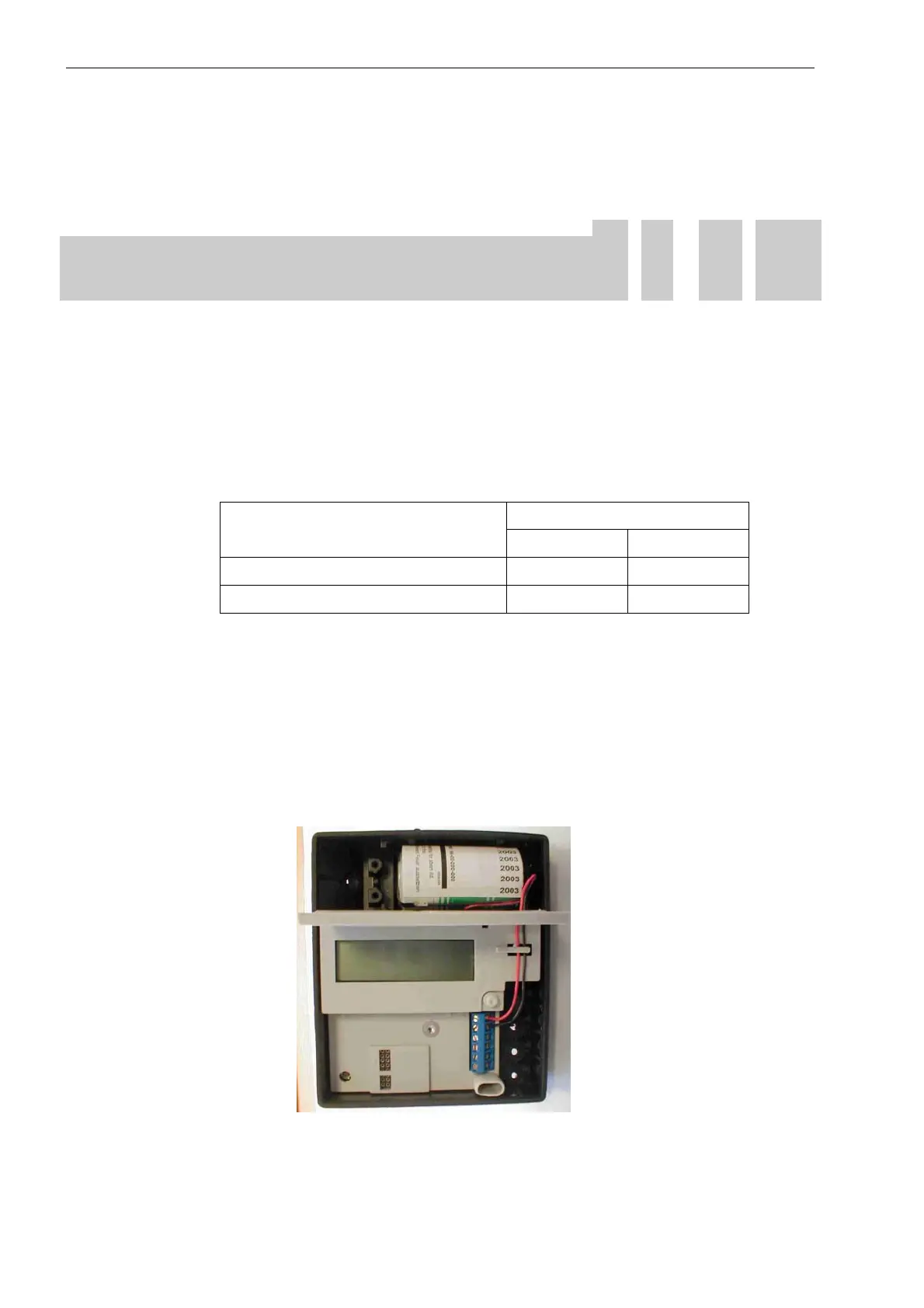

Figure 30
