Kamstrup MULTICAL 401 - Dimentional sketches

TECHNICAL DESCRIPTION MULTICAL
®
401
5512-091 GB/02.2008/Rev. J1
19
4 Dimentional sketches
MULTICAL
®
401

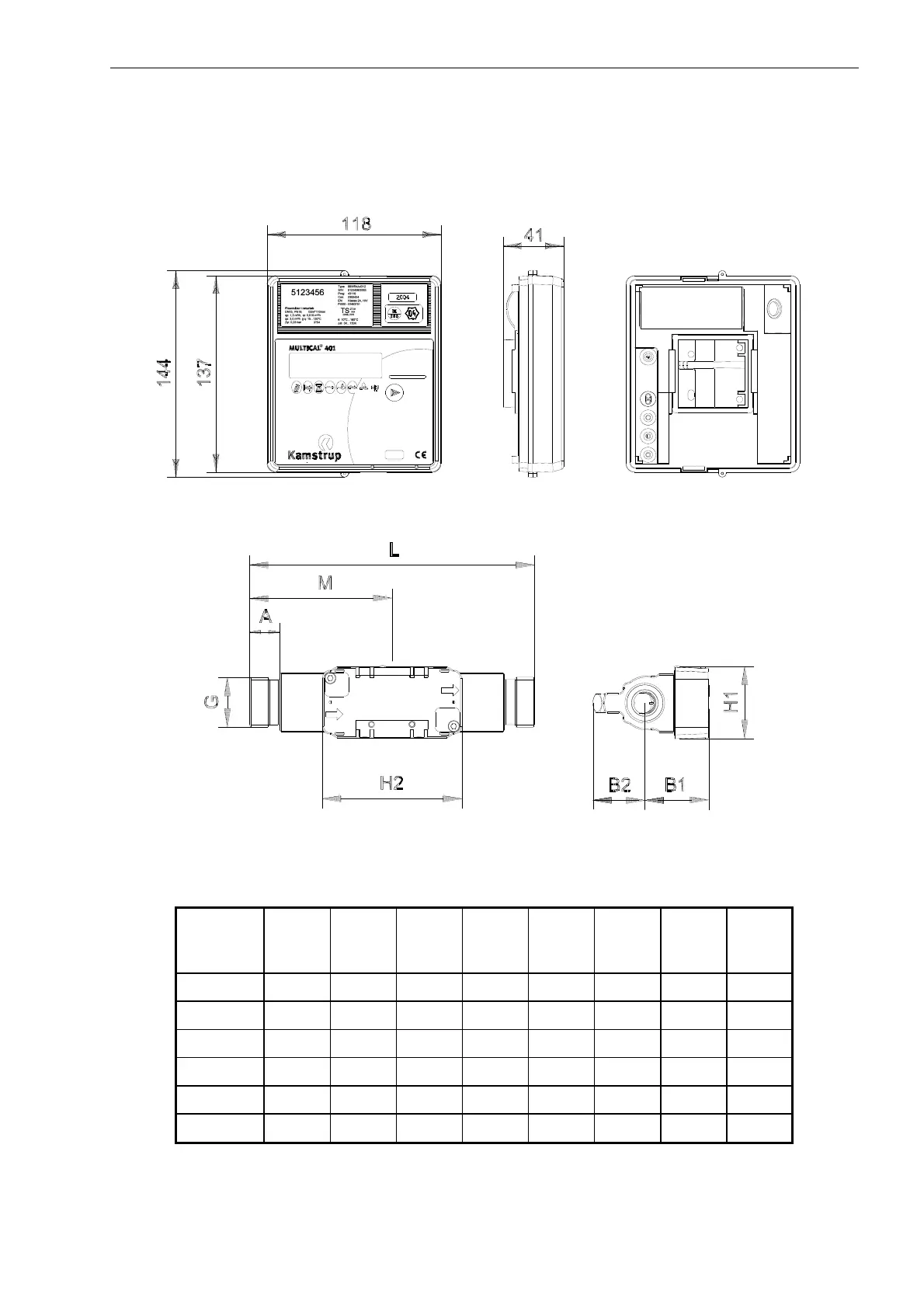

Figure 2: Mechanical dimensions on the electronic unit
Figuer 3: Flow sensor with G¾ and G1 thread connection
Thread L M H2 A B1 B2 H1
Approx.
weight
kg
G¾ 110 L/2 92.5 10.5 42 35 47.5 1.4
G1 (q
p
1.5) 130 L/2 92.5 20.5 42 35 47.5 1.5
G1 (q
p
3.0) 130 L/2 92.5 20.5 42 35 47.5 1.4
G¾ 165 L/2 92.5 20.5 42 35 47.5 1.8
G1 (q
p
1.5) 190 L/2 92.5 20.5 42 35 47.5 2.0
G1 (q
p
3.0) 190 L/2 92.5 20.5 42 35 47.5 1.9
Table 2: Weight includes 3 m short direct sensor set. Packing not included.
