6.2 Installation angle for MULTICAL
®
401

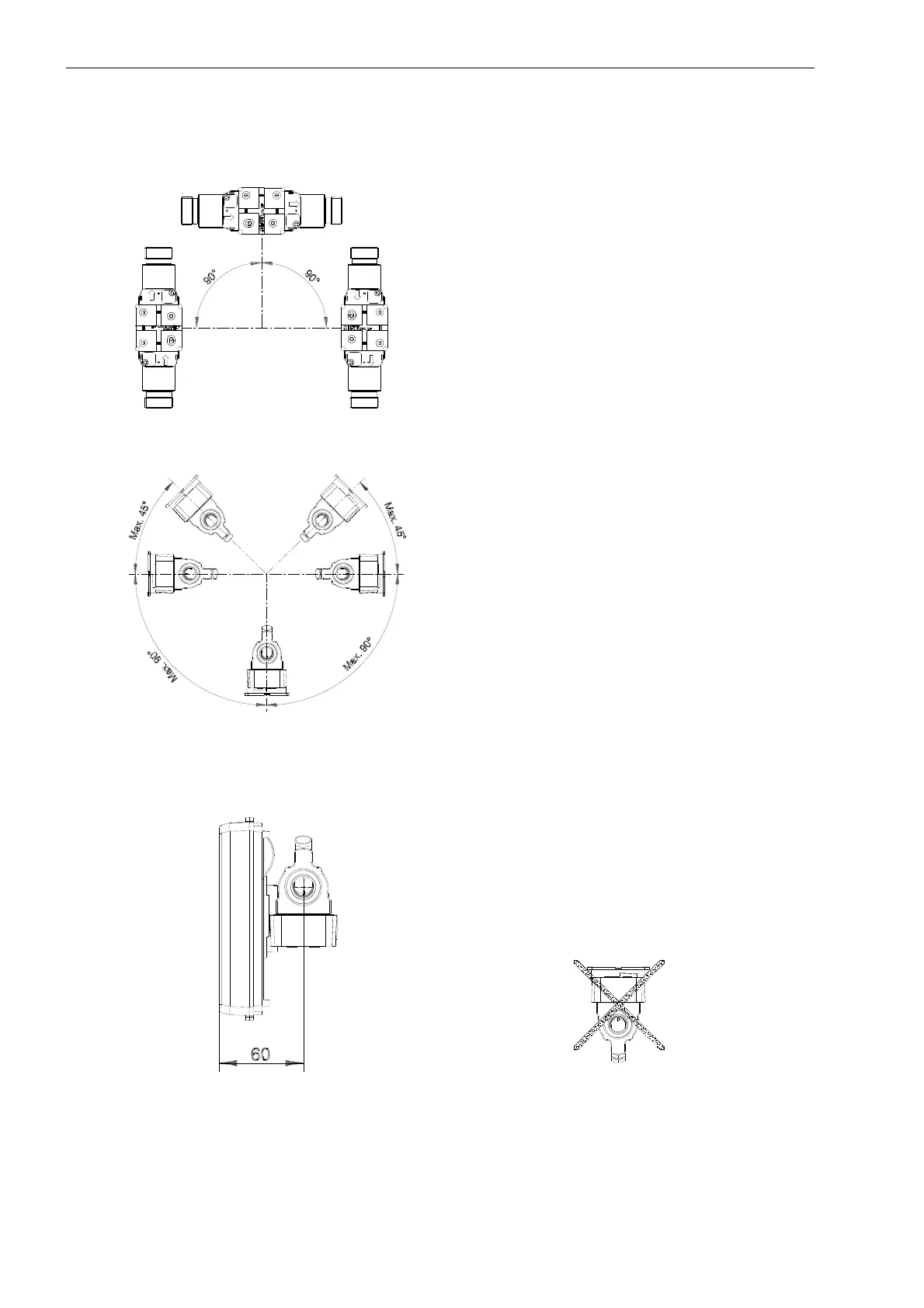

Figure 6
Figure 7
Figure 8 Figure 9
If min. built-in depth (G¾ and G1) is required, the
flow sensor must be turned with the plastic case The plastic housing must not be turned upwards.
downwards and the calculator on the side.
MULTICAL
®
401 may be installed
horizontally, vertically, or at an angle.
Important!
MULTICAL
®
401 may be turned upwards to
max. 45° and downwards to max. 90° in
relation to the pipe axis.
