Kamstrup MULTICAL 401 - Mechanical construction

TECHNICAL DESCRIPTION MULTICAL
®
401
5512-091 GB/02.2008/Rev. J1
8

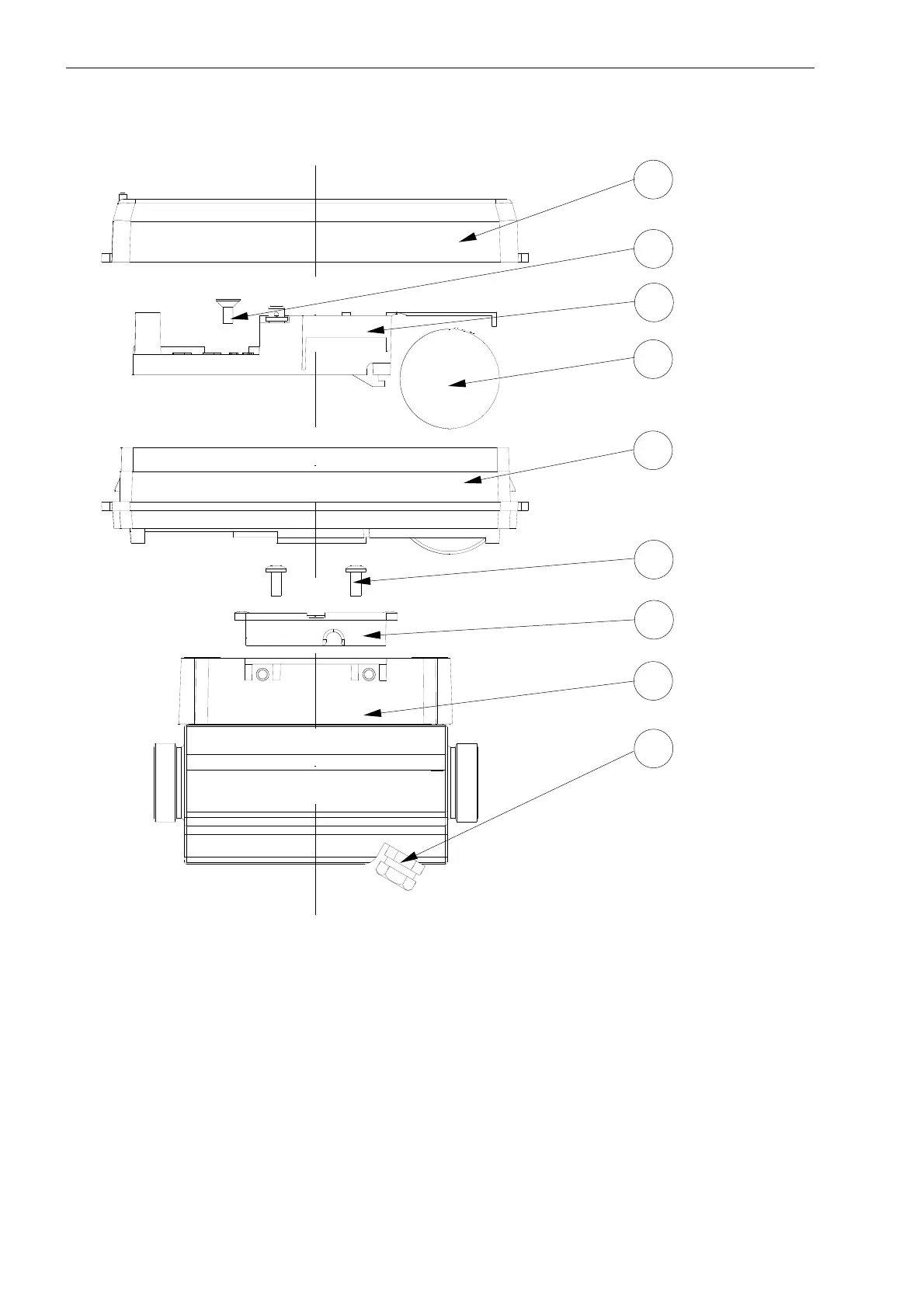

1.1 Mechanical construction
1 Transparent top cover with front plate
2 Sealing screw for verification cover
3 Verification cover including push button. The lid of the supply unit can be opened
without breaking the verification
4 Supply: Battery, 24 VAC or 230 VAC. Can be replaced without breaking the verification
5 Case for electronics unit
6 Screws for bracket
7 Bracket. Can also be used for wall mounting (bracket: 3026-290)
8 Meter case with holes for cable binders (cable binders: 1650-145)
9 Connecting piece and blind plug for short direct sensor
1
3
4
5
2
6
7
8
9
Figure 1
