Connecting to Other Devices
Connecting to Other Devices
This instrument features a variety of jacks that allow the instrument to be connected to MIDI devices,
computers, speakers, and mixers. It is also possible to connect external audio sources, such as an MP3

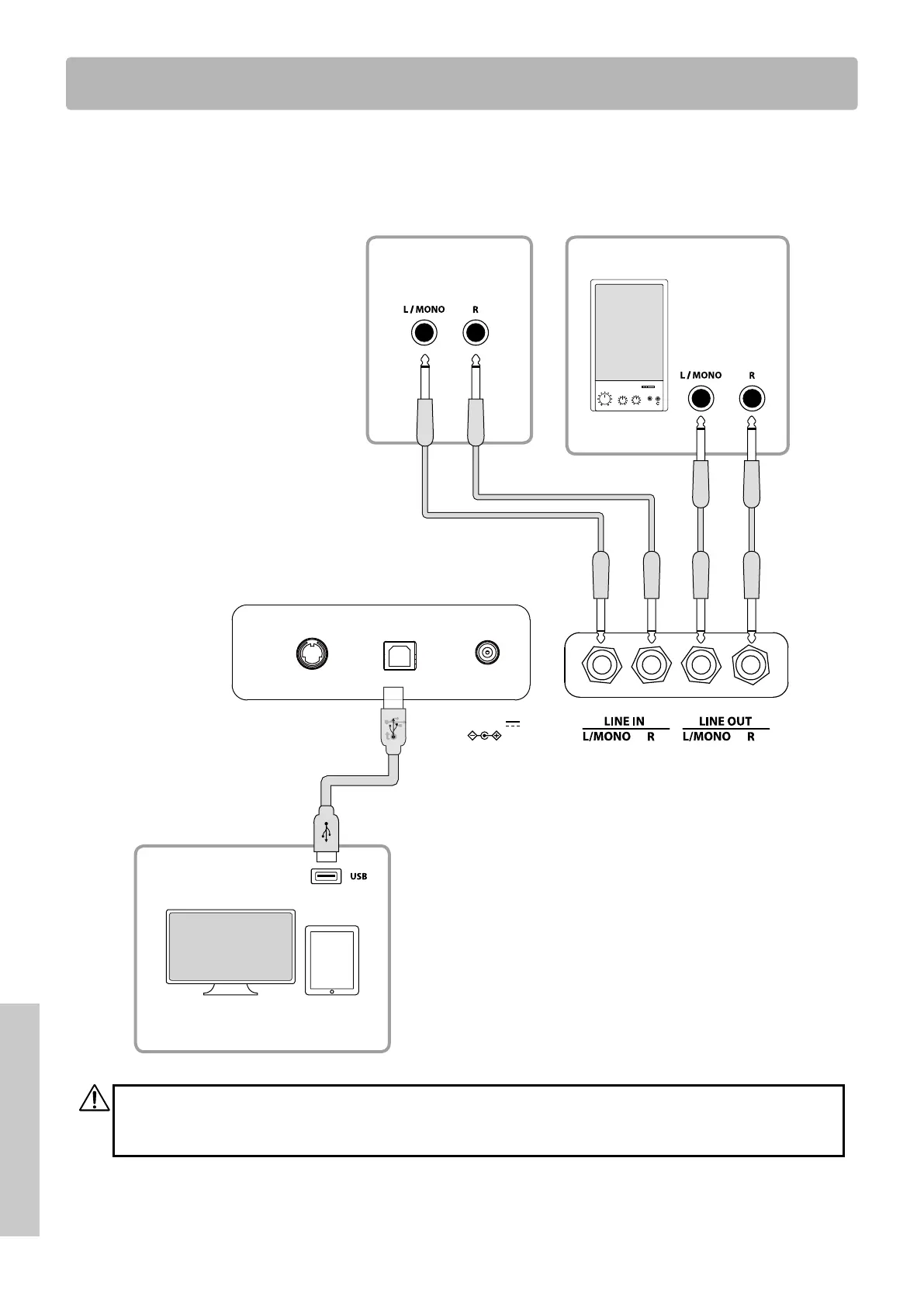

player, tablet, or a secondary keyboard, to the instrument’s amplier and speaker system. The illustration
below provides a visual overview of the connectors and their typical applications.
USB to HOST
PEDAL
DC IN 15V
Computer
Computer, etc.
Amplier, speaker, etc.
Other electronic music
instruments or CD player
Smart
device
• Turn o this instrument before connecting to other devices.
• Do not connect LINE IN and LINE OUT on this instrument directly with a cable. A noise will occur and may result in a failure
of the instrument.
