KEB combivert R6-S Applications Manual

Page3.7 - 8 COMBIVERT R6-S © KEB, 2008-02
Parameter sets
Example
Binary coded set source
At binary coded set source:
- maximally three of the internal or external inputs may be programmed to set source (23 = 8 sets) in
order to avoid set source errors.
- the valence of the programmed inputs for set source is increasing
(ID>IC>IB>IA>I4>I3>I2>I1>R>F>RST>ST)

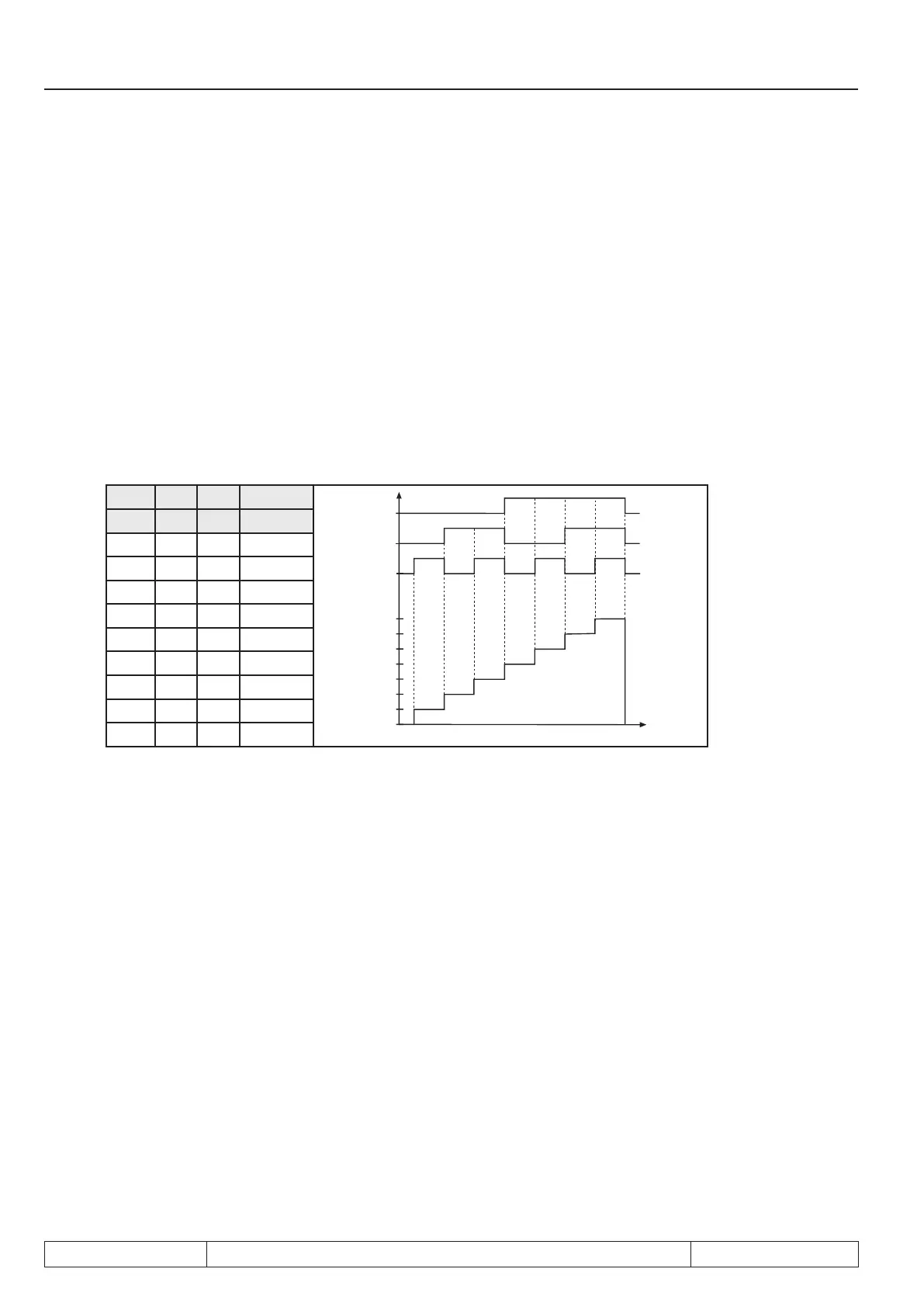

Example1: set0...7 shall be selected with 3 inputs (I1, I2, and I3)
1.) Set parameter Fr.07 to value „148"
2.) Set Fr.02 to value „2“ (set source binary-coded via terminal strip)
I3 I2 I1 Input
F
I1
I4
t
Set 0
Set 1
Set 2
Set 3
Set 4
Set 5
Set 6
Set 7
2² 2
1
2
0
Set
0 0 0 0
0 0 1 1
0 2 0 2
0 2 1 3
4 0 0 4
4 0 1 5
4 2 0 6
4 2 1 7
