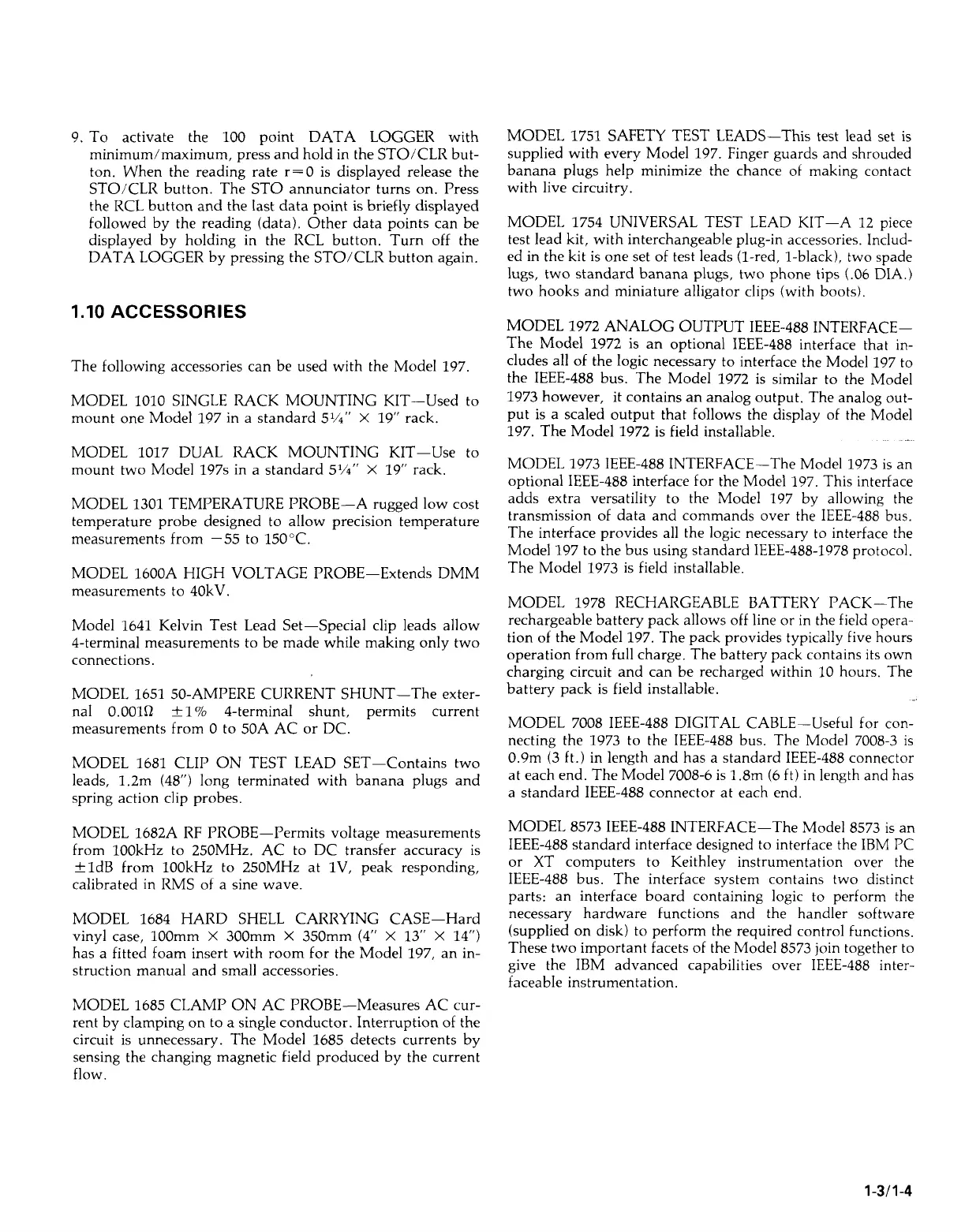

9. To activate the
100
point DATA
LOGGER
with
minimum/maximum, press and hold in the STO/CLR but-
ton. When the reading rate r=O is displayed release the
STO/CLR button. The STO annunciator turns on. Press
the RCL button and the last data point is briefly displayed
followed by the reading (data). Other data points can be
displayed by holding in the RCL button. Turn off the
DATA LOGGER by pressing the STO/CLR button again.
1.10 ACCESSORIES
The following accessories can be used with the Model 197
MODEL
1010
SINGLE RACK MOUNTING KIT-Used to
mount one Model 197 in a standard 5%’’
X
19” rack.
MODEL 1017 DUAL RACK MOUNTING KIT-Use to
mount two Model 197s in a standard
5Y4”
X
19” rack.
MODEL
1301 TEMPERATURE PROBE-A rugged low cost
temperature probe designed to allow precision temperature
measurements from -55 to 150°C.
MODEL 1600A HIGH
VOLTAGE
PROBE-Extends
DMM
measurements to 40kV.
Model 1641 Kelvin Test Lead Set-Special clip leads allow
4-terminal measurements to be made while making only two
connections.
MODEL 1651 50-AMPERE CURRENT SHUNT-The exter-
nal
0.001Q
f
1
%
4-terminal shunt, permits current
measurements from
0
to 50A
AC
or DC.
MODEL 1681 CLIP ON TEST LEAD SET-Contains two
leads, 1.2m (48”) long terminated with banana plugs and
spring action clip probes.
MODEL 1682A RF PROBE-Permits voltage measurements
from 100kHz to 250MHz.
AC
to DC transfer accuracy is
+IdB from 1OOkHz to 250MHz at
1V,
peak responding,
calibrated in RMS of a sine wave.
MODEL 1684 HARD SHELL CARRYING CASE-Hard
vinyl case, 100mm
X
300mm
X
350mm (4”
X
13”
X
14”)
has a fitted foam insert with room for the Model 197, an in-
struction manual and small accessories.
MODEL 1751 SAFETY TEST LEADS-This test lead set is
supplied with every Model 197. Finger guards and shrouded
banana plugs help minimize the chance
of
making contact
with live circuitry.
MODEL 1754 UNIVERSAL TEST LEAD KIT-A 12 piece
test lead kit, with interchangeable plug-in accessories. Includ-
ed in the
kit
is one set of test leads (1-red, 1-black), two spade
lugs,
two standard banana plugs, two phone tips (.06 DIA.)
two hooks and miniature alligator clips (with boots).
MODEL 1972 ANALOG OUTPUT IEEE-488 INTERFACE-
The Model 1972 is an optional IEEE-488 interface that in-
cludes all of the logic necessary to interface the Model 197 to
the IEEE-488 bus. The Model 1972 is similar to the Model
1973 however,
it
contains an analog output. The analog out-
put is a scaled output that follows the display of the Model
197. The Model 1972 is field installable.
MODEL 1973 IEEE-488 INTERFACE-The Model 1973 is an
optional IEEE-488 interface for the Model 197. This interface
adds extra versatility to the Model 197 by allowing the
transmission of data and commands over the IEEE-488 bus.
The interface provides all the logic necessary to interface the
Model 197 to the bus using standard IEEE-488-1978 protocol.
The Model 1973 is field installable.
MODEL 1978 RECHARGEABLE BATTERY PACK-The
rechargeable battery pack allows off line or in the field opera-
tion of the Model 197. The pack provides typically five hours
operation from full charge. The battery pack contains its own
charging circuit and can be recharged within
10
hours. The
battery pack is field installable.
MODEL 7008 IEEE-488 DIGITAL CABLE-Useful for con-
necting the 1973 to the IEEE-488 bus. The Model 7008-3 is
0.9m (3
ft.)
in length and has a standard IEEE-488 connector
at each end. The Model 7008-6 is 1.8m (6
ft)
in length and has
a standard IEEE-488 connector at each end.
MODEL 8573 IEEE-488 INTERFACE-The Model 8573 is an
IEEE-488 standard interface designed to interface the
IBM
PC
or
XT
computers to Keithley instrumentation over the
IEEE-488 bus. The interface system contains two distinct
parts: an interface board containing logic to perform the
necessary hardware functions and the handler software
(supplied on disk) to perform the required control functions.
These two important facets of the Model 8573 join together to
give the IBM advanced capabilities over IEEE-488 inter-
faceable instrumentation.
MODEL 1685 CLAMP ON
AC
PROBE-Measures AC cur-
rent by clamping on to
a
single conductor. Interruption of the
circuit is unnecessary. The Model 1685 detects currents by
sensing the changing magnetic field produced by the current
flow.
1-311-4
