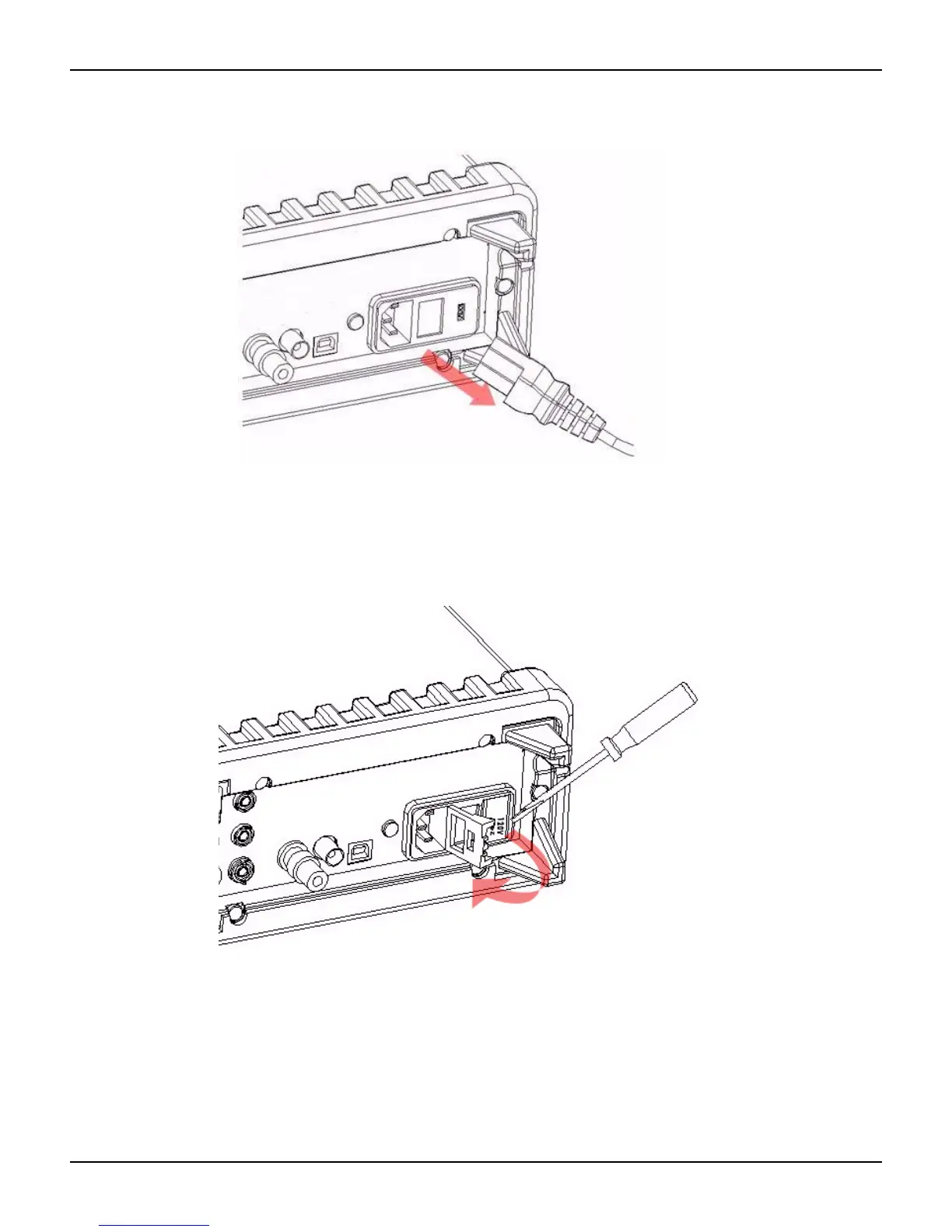

Figure 2-6
Disconnecting AC power
Step 2: Open the voltage setting selector
Open the voltage setting selector cap as shown in Figure 2-7 (a flat blade screwdriver may be
required).
Figure 2-7
Opening the voltage setting selector
Step 3: Remove the red voltage setting selector
Remove the red voltage selector fuse holder from the right middle seam as shown in Figure 2-8 (a
flat blade screwdriver may be required).
