2-18 Return to Section Topics 2100-900-01 Rev. D / September 2011
Section 2: Getting Started Model 2100 6 1/2-Digit Resolution Digital Multimeter User’s Manual

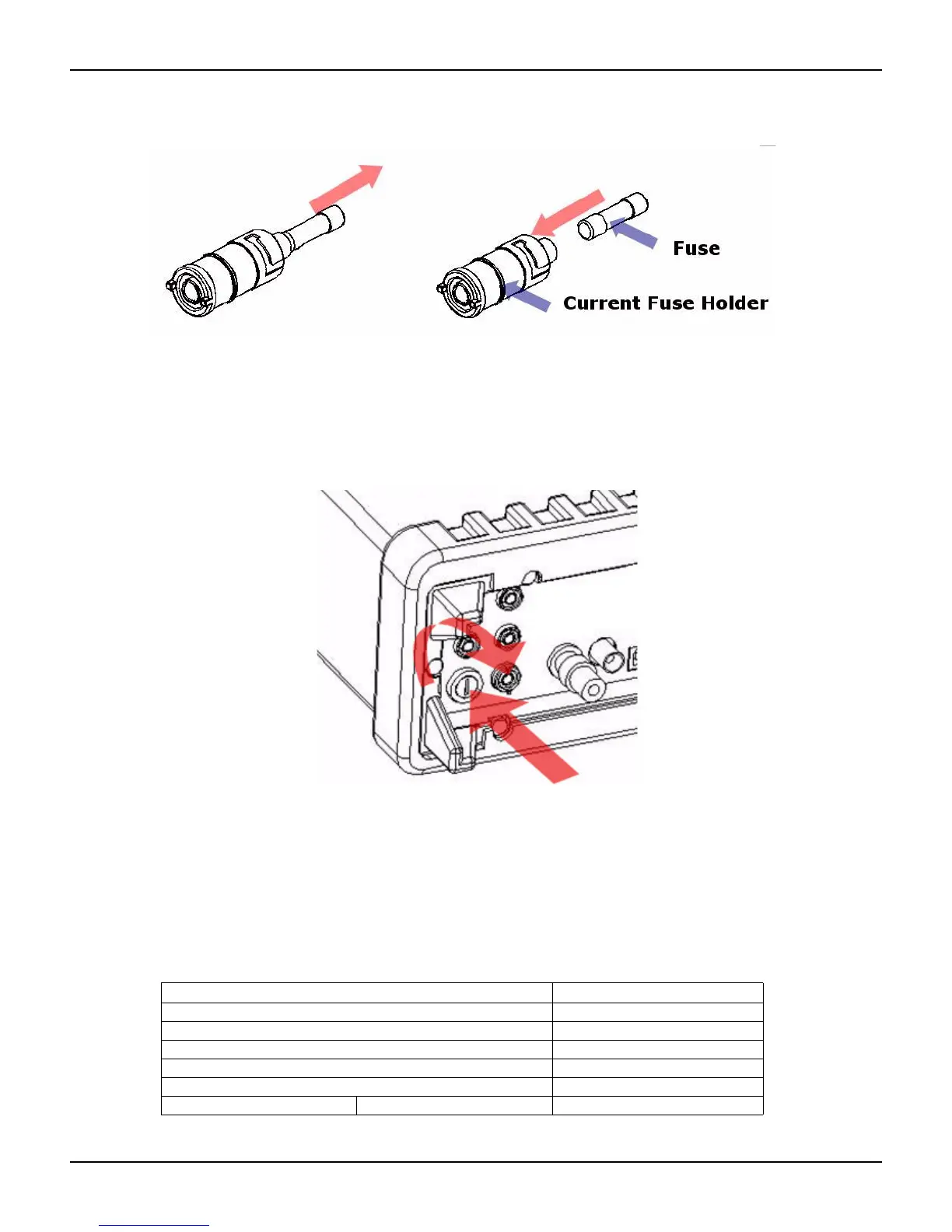

Figure 2-28
Removing and replacing the damaged fuse
Step 5: Reinsert and secure the 7A current input terminal fuse holder
Reinsert the 7A current input terminal fuse holder, turning it to the right as you push it in (see
Figure 2-29). Ensure that the fuse holder is properly seated and secured.
Figure 2-29
Reinserting and securing the 7A current input terminal fuse holder
WARNING Before reconnecting the power line cord to your multimeter, ensure that the
power switch is in the "POWER OFF" position.
Factory default settings
Table 2-2 shows the factory default settings for the Model 2100.
Table 2-2
Factory default
Function Default
Function DCV
Autozero On
Frequency and period source AC voltage
Output format ASCII
Ratio Off
AC bandwidth Input frequency 20Hz

Keithley 2100 Specifications

General

DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Continuity	Yes
Diode Test	Yes
Frequency Range	3 Hz to 300 kHz
DC Voltage Accuracy	0.0035%
DC Current Range	100 µA to 10 A
DC Current Accuracy	0.05%
AC Current Range	100 µA to 10 A
Frequency Accuracy	0.01%
Capacitance Range	1 nF to 10 mF
Temperature Range	-200 °C
Connectivity	RS-232
Type	6.5-digit digital multimeter
