Model 2100 6 1/2-Digit Resolution Digital Multimeter User’s Manual Section 2: Getting Started

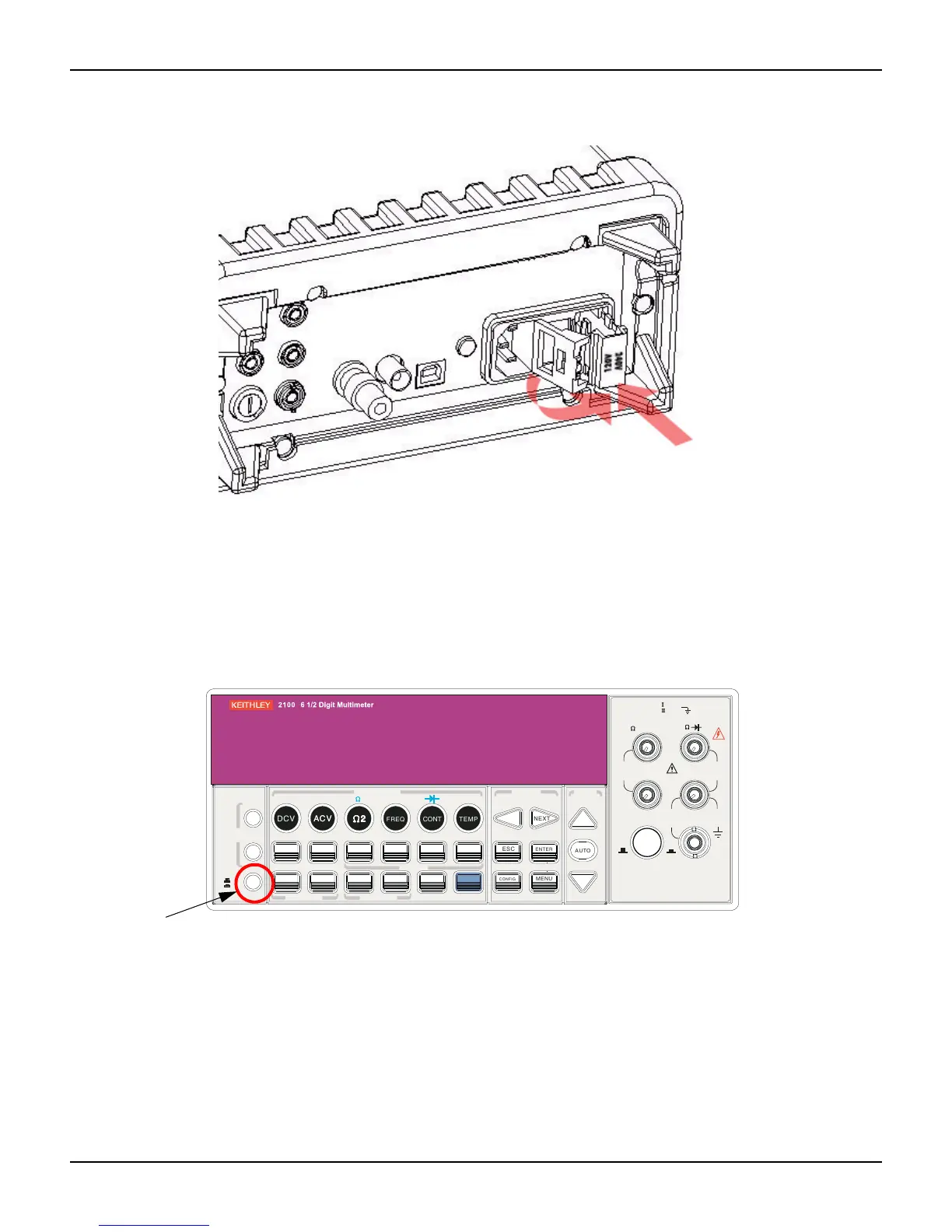

Figure 2-9
Inserting the voltage selector
Connecting the power
Power-off the multimeter
Ensure that the power switch on the front panel is in the "POWER OFF" position before plugging
the Model 2100 in (refer to
Figure 2-10).
Figure 2-10
Powering-off the multimeter
Plug-in the power cord
After finishing the above procedures, you can plug-in your power cord as shown in Figure 2-11.
FILTER
NEXT
PREV
DIGITS
RATIO
%
MIN/MAX
NULL
ESC
ENTER
AUTO
SINGLE
TRIGGER
STORE
RECALL
LOCAL
SHIFT
CONFIG
MENU
AUT O
DCV
ACV
2
2
FREQ
CONT
TEMP
4 WIRE
RATIO
V
INPUT
PEAK
200V
PEAK
HI
LO
PEAK
500V
3A
RMS
INPUTS
3A 250V
FRONT/REAR
AMPS
R
1000V
REF
CAT 1000V
CAT 600V
LOCK
SETUP
ACV
2
2
FUNCTION
DCI ACI
4
PERIOD
LIMITS MX+B
dB
EXTRIG
HOLD
MATH
TRIGGER MEMORY
dBm
RANGE
DISPLAY
NEXT
PREV
POWER
OFF
ON
SENSE
F

Keithley 2100 Specifications

General

DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Continuity	Yes
Diode Test	Yes
Frequency Range	3 Hz to 300 kHz
DC Voltage Accuracy	0.0035%
DC Current Range	100 µA to 10 A
DC Current Accuracy	0.05%
AC Current Range	100 µA to 10 A
Frequency Accuracy	0.01%
Capacitance Range	1 nF to 10 mF
Temperature Range	-200 °C
Connectivity	RS-232
Type	6.5-digit digital multimeter
