• Rotating plate with counter-balance arm for one wire feeder.

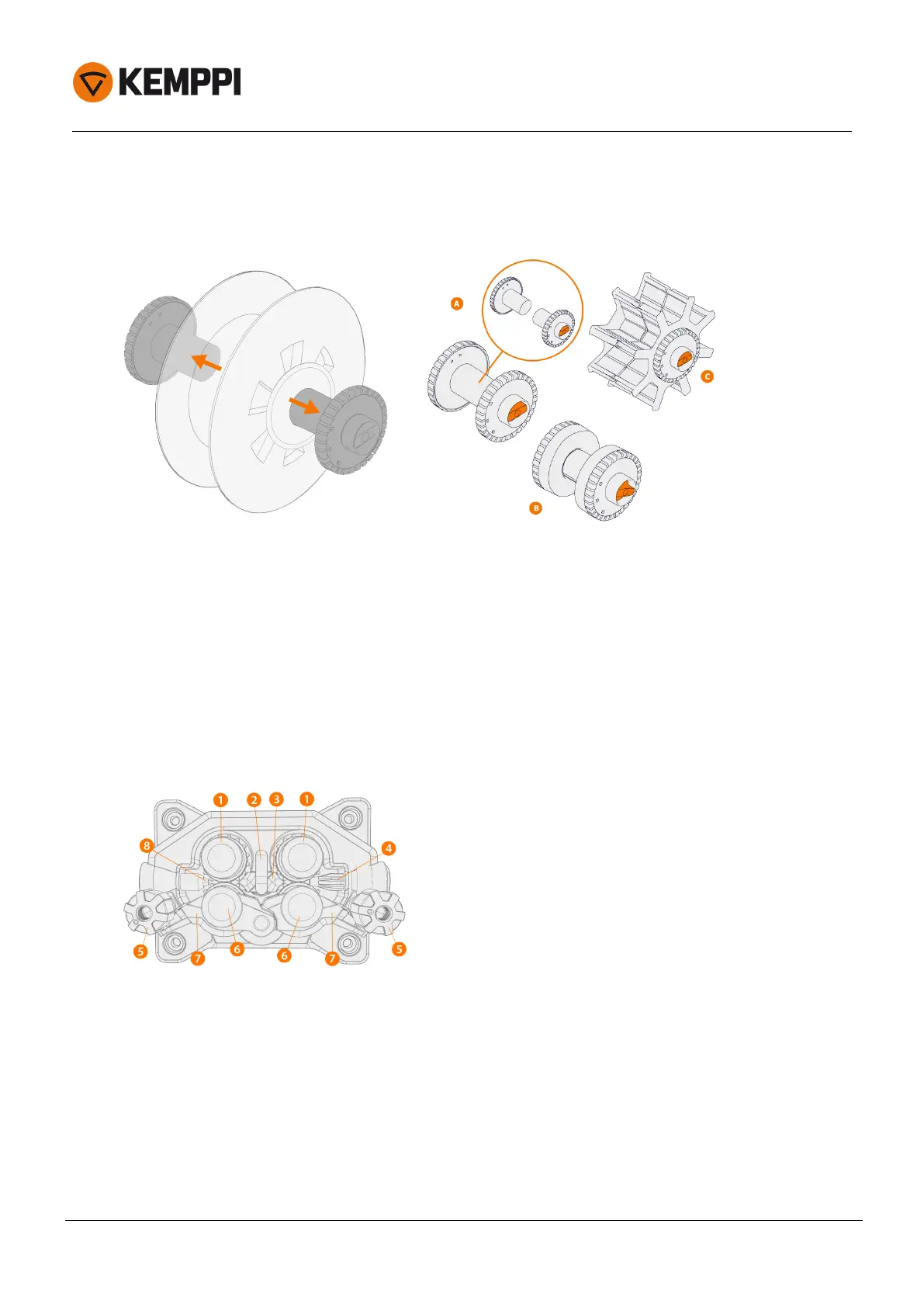

1.3.1 X5 Wire spools and hubs
X5 FastMig has three different wire spool hub options available for different wire spools:
• Standard spool (A)
• Spool hub for the small wire spool (B)
>> Attach the extension pieces to the standard spool halves.
• Spool hub for the wire spool with a large center hole (C)
All parts are delivered with the wire feeder.
Loosen and pull the spool hub halves apart to detach them.
1.3.2 X5 Wire feed mechanism
1. Drive rolls and drive roll mounting caps
2. Middle guide tube locking clip
3. Middle guide tube
4. Inlet guide tube
5. Pressure handles
6. Pressure rolls and pressure roll mounting pins
7. Pressure roll locking arms
8. Outlet guide tube.
