There is no need to pull the trigger. Trigger function is disabled at this stage.
7. Using the control panel, confirm the measured values.
3.2 Using X5 Manual control panel

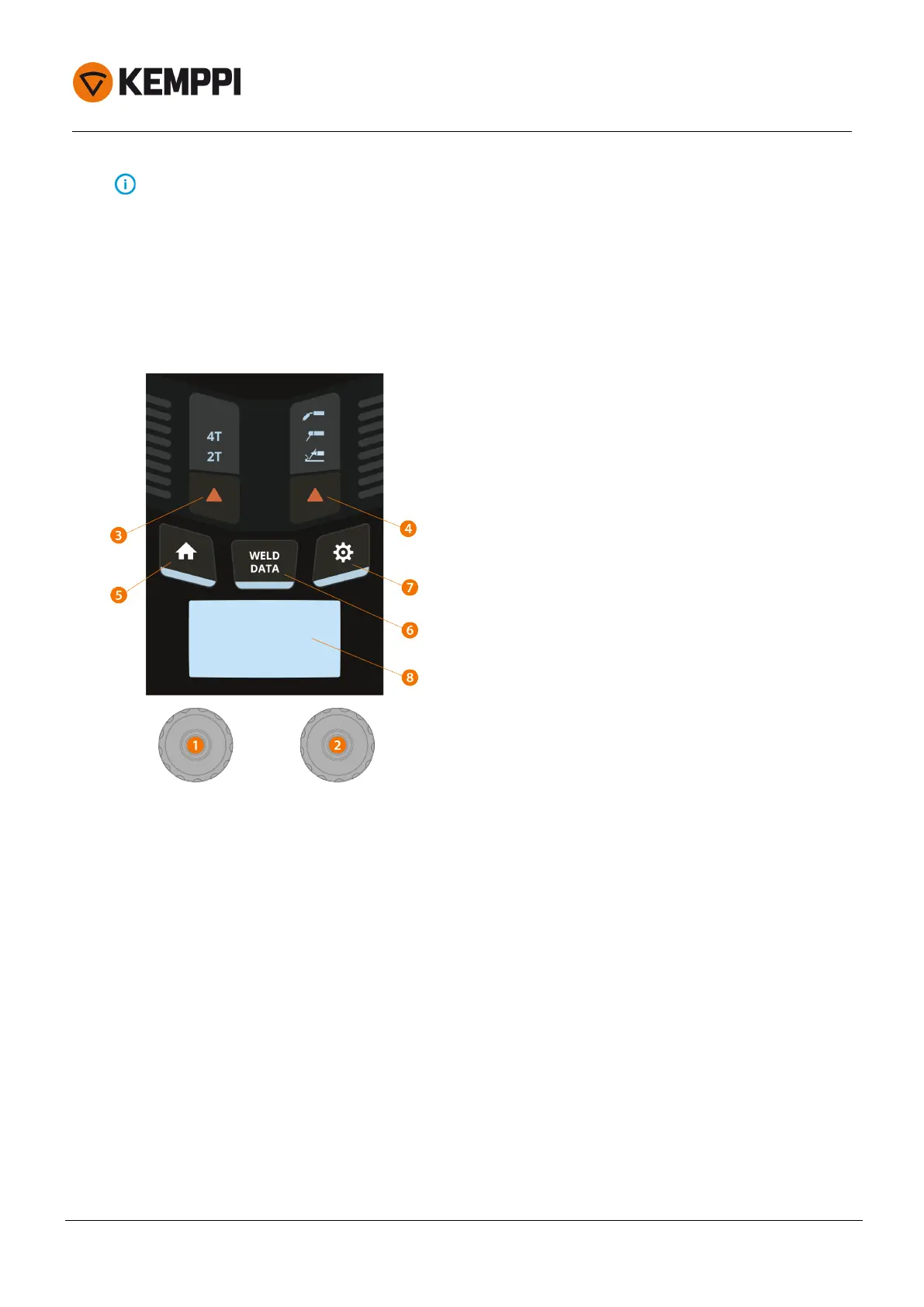

The X5 Wire Feeder 300 Manual control panel (membrane panel) includes the most essential features and functions
for MIG welding with the option to use the X5 FastMig also for MMA welding and gouging.
1. Left control knob
>> In MIG mode: Wire feed speed
>> In MMA mode: Welding current adjustment
>> In Gouging mode: Current adjustment
2. Right control knob
>> In MIG mode: Welding voltage adjustment
>> In MIG mode (push button):Switch between welding voltage and dynamics adjustment
>> In MMA mode:Dynamics adjustment
3. Trigger logic selection
>> Switches between 2T and 4T trigger logic modes
4. Welding process / operation mode selection
>> Switches between MIG, MMA and Gouging modes
5. Home button
>> Switches to the default welding view/mode
6. Weld data button
>> Shows the duration, current and voltage of the last weld
7. Settings menu button
8. Main display
