Keysight Technologies 34972A Service Guide

Theory of Operation 5
Keysight 34970A/34972A Service Guide 127

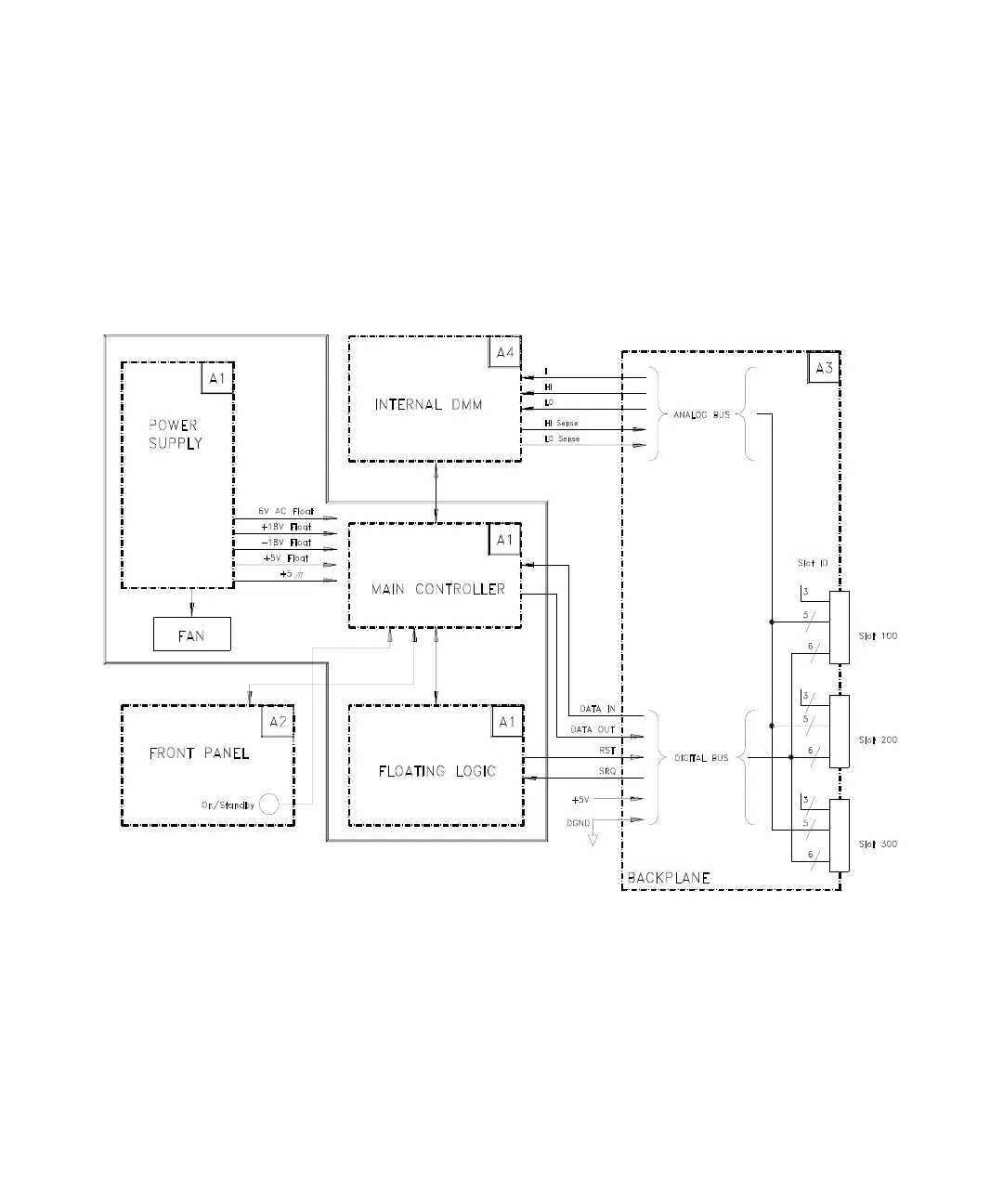

System Block Diagram
A simplified block diagram is shown below. Not all systems have an Internal DMM.
In these systems, the internal DMM connections to the analog bus and the
floating logic are left open. The major portions of each block are described in the
following sections.
