To Connect Wiring to a Module
– For detailed information on each module, refer to the
34970A/34972A User’s Guide.
– To reduce wear on the internal DMM relays, wire like
functions on adjacent channels.
– Use shielded twisted pair PTFE insulated cables to
reduce settling and noise errors.
– The diagrams on the next page show how to connect
wiring to a multiplexer module for each measurement
function.
20 AWG Typical
6 mm
4 Replace the module cover.
2 Connect wiring to the screw terminals.
Wiring Hints...
Slot Channel
Channel Number:

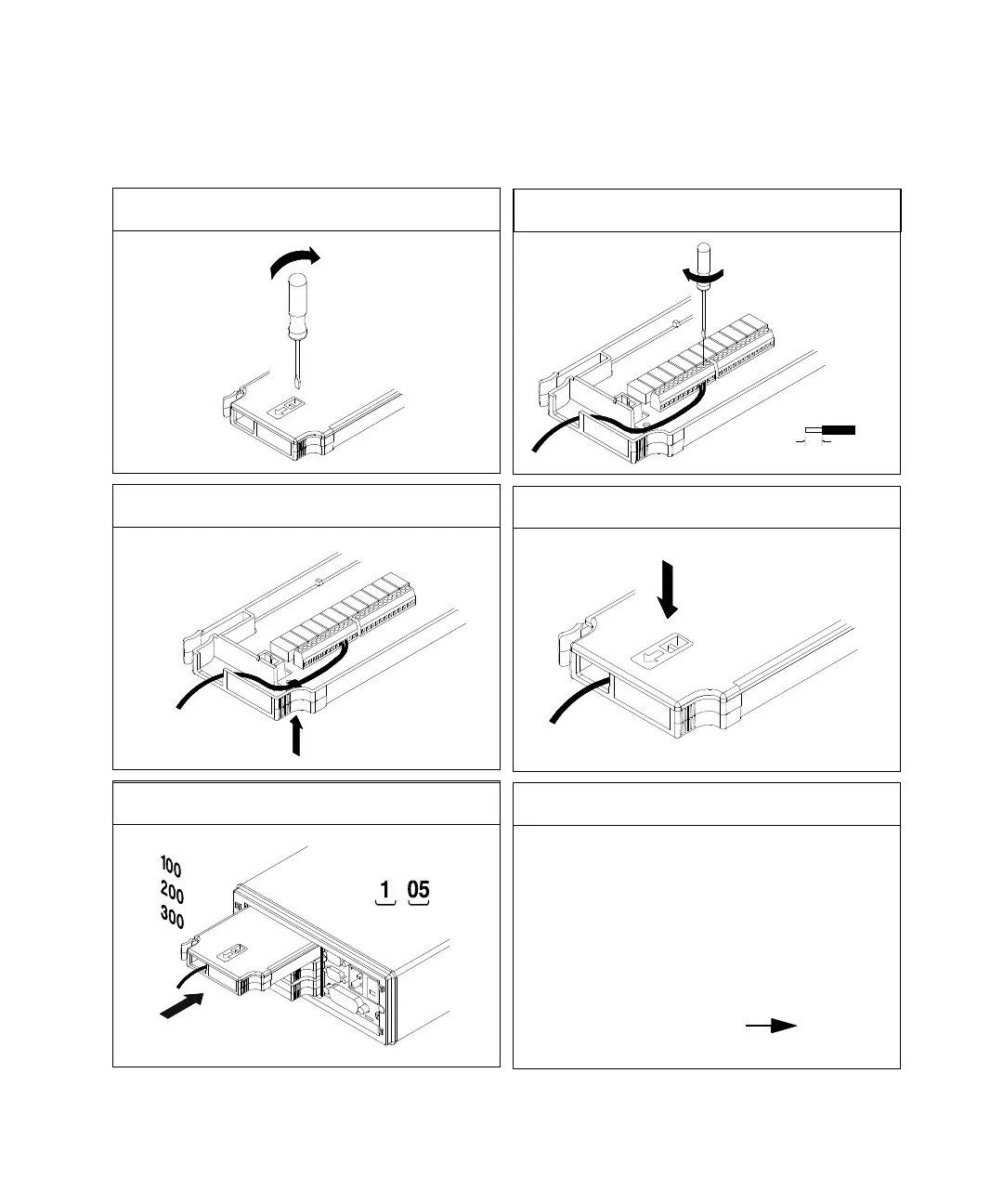

1 Remove the module cover.
3 Route wiring through strain relief.
5 Install the module into mainframe.
Cable Tie Wrap
(optional)
