34904A

Components in this discussion are located on the A1 circuit assembly

(34904-66501).

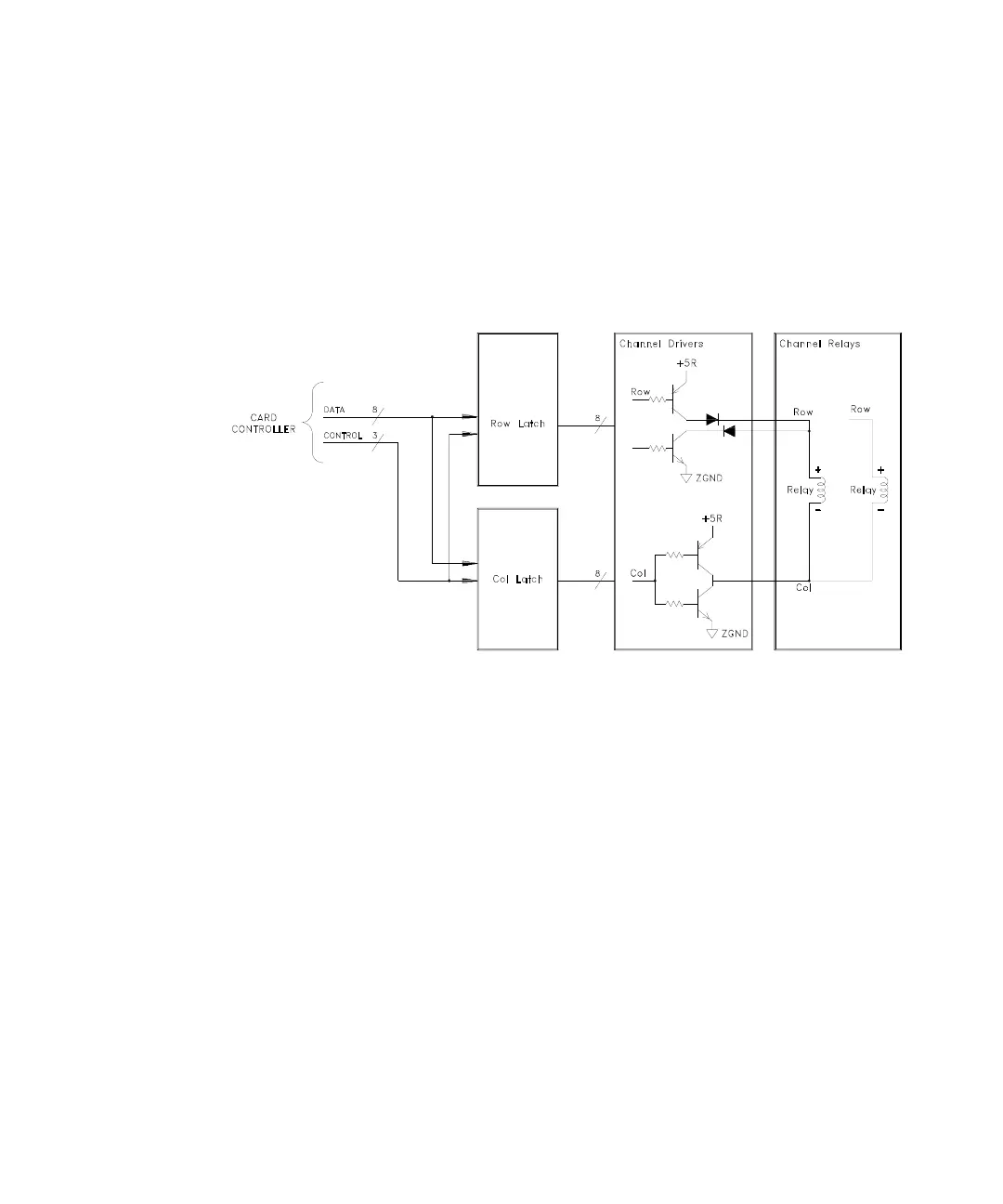

The control circuitry has four groupings of latches, relay drivers and relays divided

into 4 rows by 8 columns.
