Service 6

Keysight 34970A/34972A Service Guide 187

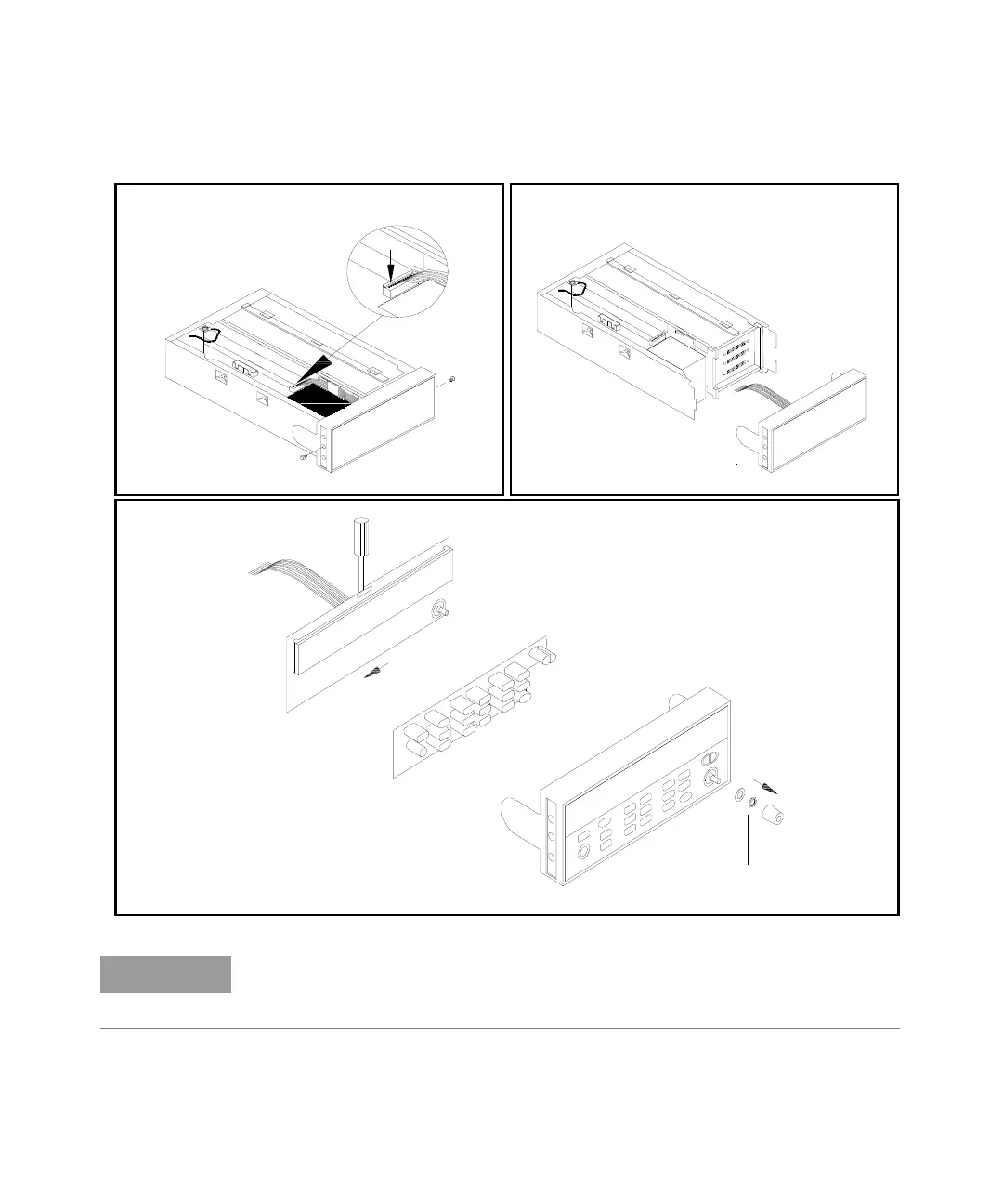

Front Panel Disassembly







Maximum Torque:

6 in/lbs (0.68 n/m)

NOTE

When reassembling the front panel, be sure to route the front panel cable as

shown above. Do not allow the front-panel cable to touch the digital ribbon

cable.
