Calibration Procedures 4

Keysight 34970A/34972A Service Guide 69

Input Connections

You will need an input multiplexer module to verify or adjust the internal DMM.

Input connections can be made using a 34901A

20-Channel Multiplexer.

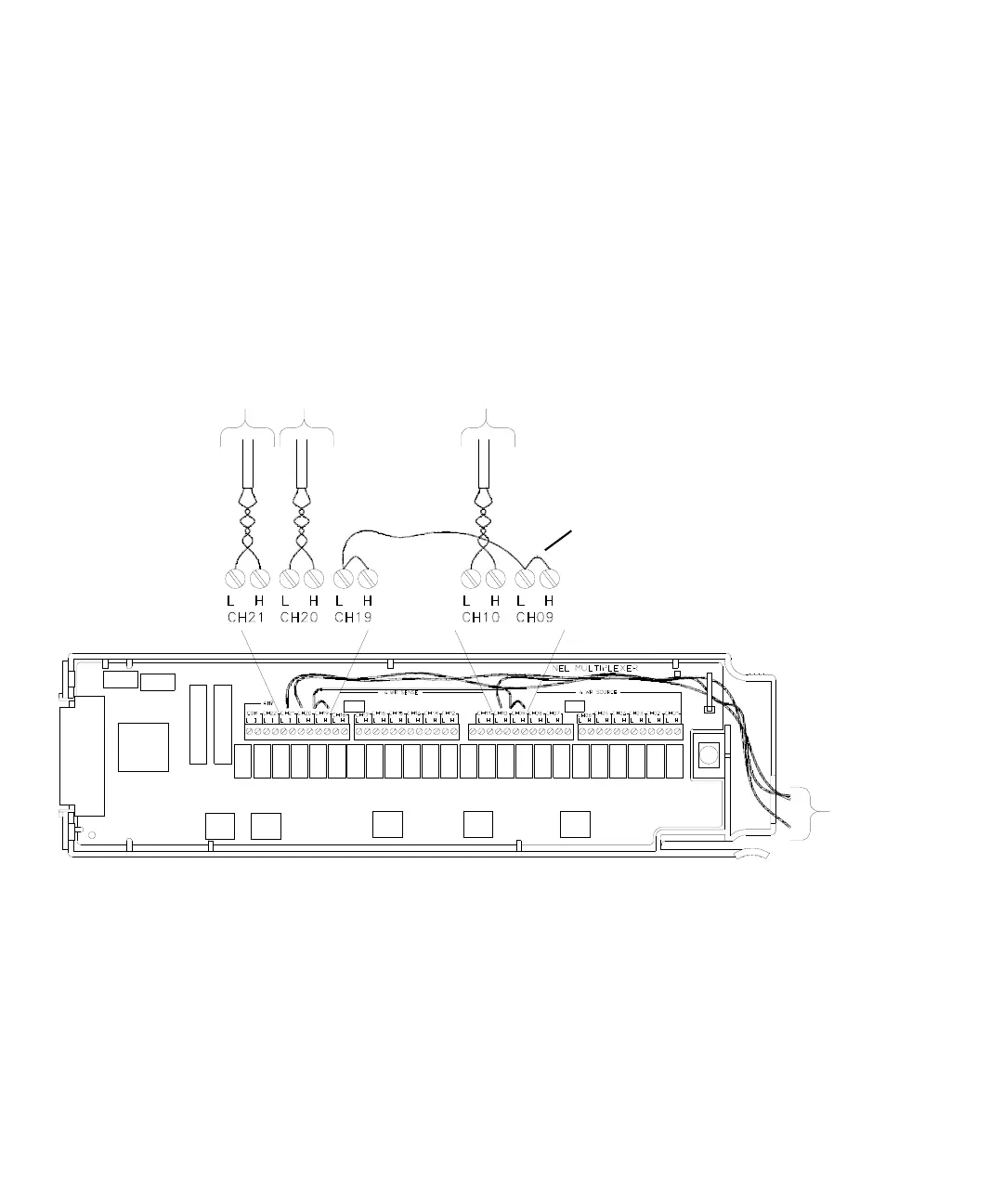

To use a 34901A to completely verify and adjust the internal DMM, make the

following connections:

Copper Short

Connections for

DC/AC Current

Connections for

4-wire Ohms

Connections for DC V, AC V,

2- and 4-wire Ohms

34901A

Calibrator
