16 Keysight 34970A/34972A Service Guide

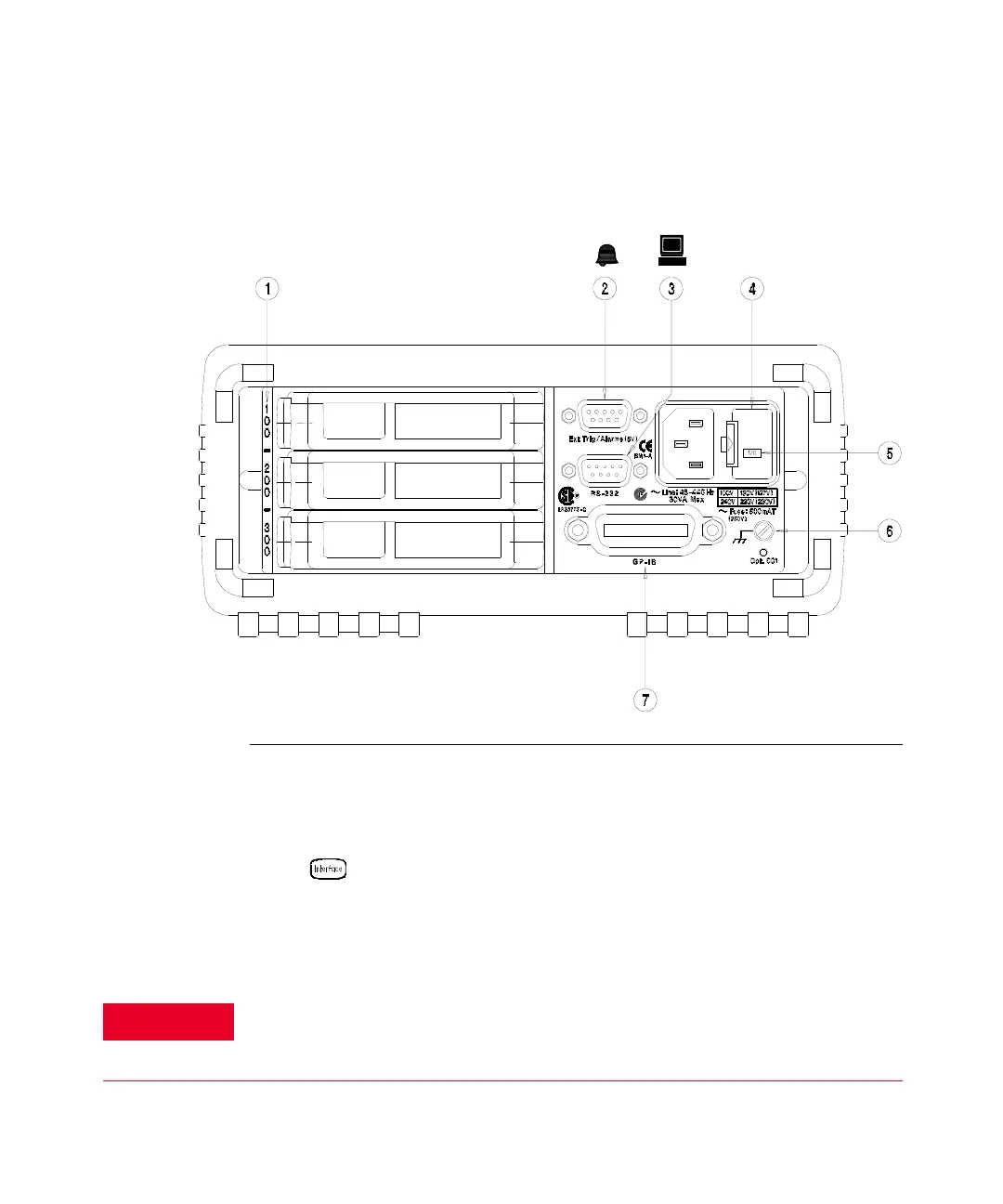

The 34970A Rear Panel at a Glance
1 Slot Identifier (100,200, 300)
2 Ext Trig Input / Alarm Outputs / Channel
Advance Input / Channel Closed Output
3 RS-232 Interface Connector
4 Power-Line Fuse-Holder Assembly
5 Power-Line Voltage Setting
6 Chassis Ground Screw
7 GPIB (IEEE-488) Interface Connector
Use the Menu to:
– Select the GPIB or RS-232 interface (see Chapter 2).
– Set the GPIB address (see Chapter 2).
– Set the RS-232 baud rate, parity, and flow control mode (see Chapter 2).
For protection from electrical shock, the power cord ground must not be
defeated. If only a two-contact electrical outlet is available, connect the
instrument’s chassis ground screw (see above) to a good earth ground.
