5 Theory of Operation

160 Keysight 34970A/34972A Service Guide

34908A

Components in this discussion are located on the A1 circuit assembly

(34908-66501).

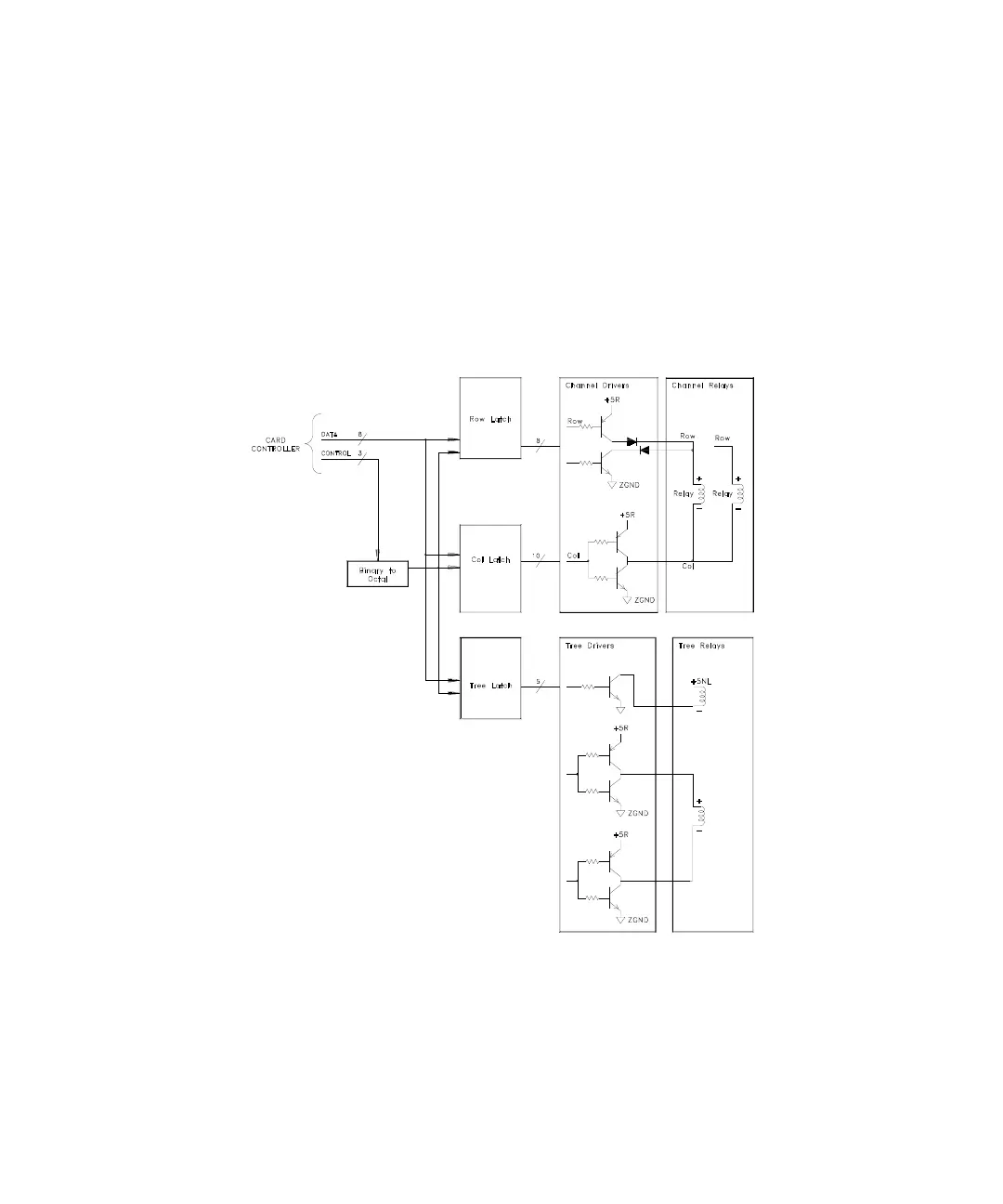

The control circuitry has three grouping of latches, relay drivers and relays. The 40

voltage and resistance measurement channels are, for control purposes, arranged

into 8 rows by 10 columns. Tree switching controls bank selection and

connections to the analog bus.
