5 Theory of Operation

162 Keysight 34970A/34972A Service Guide

Multifunction Module

The 34907A Multifunction module contains two 8-bit digital input/ output ports, a

totalizer input, and two 16-bit analog outputs.

Multifunction Control

Components in this discussion are located on the A1 circuit assembly

(34907-66501).

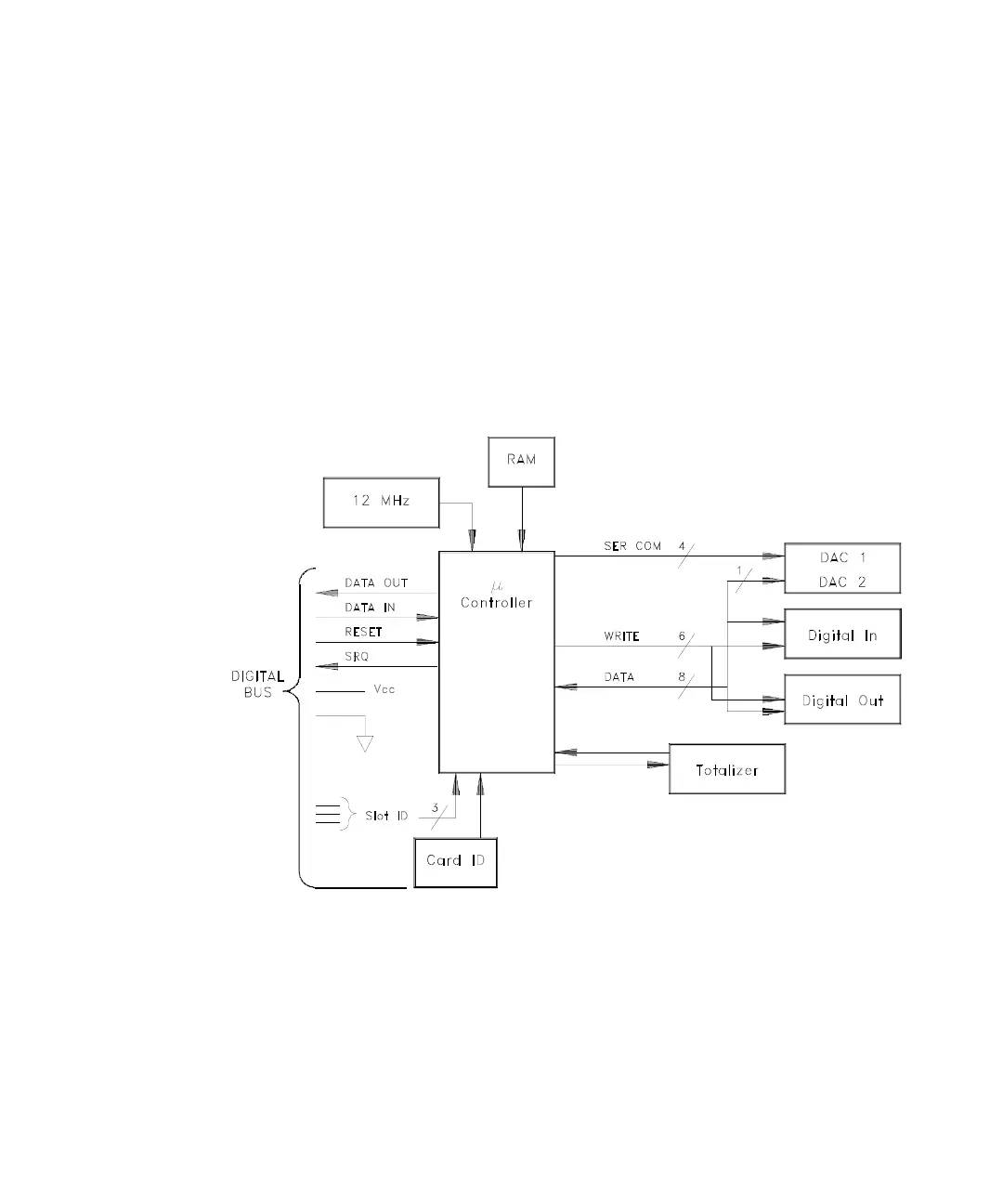

A simplified block of the module control circuit is shown below.
