Keysight Technologies 34972A Service Guide

Theory of Operation 5
Keysight 34970A/34972A Service Guide 157

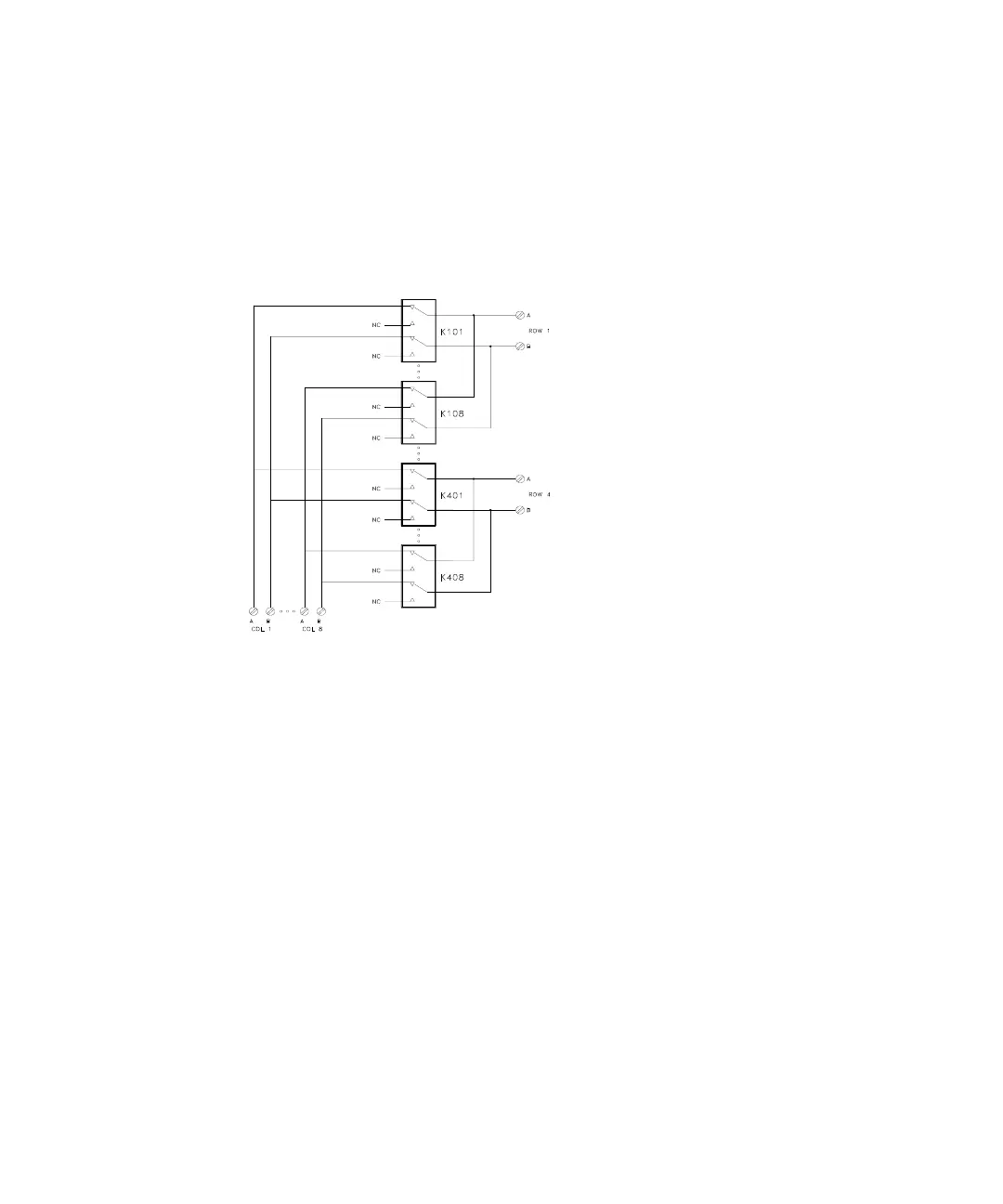

The row latch, U102, and column latch U103, control the relays. The row drivers
are divided into four groups of set and reset drivers. Each group of row drivers
controls eight relays. The column drivers operate as a pair. There are eight column
drivers each controlling four relays. The relays are arranged in 4 rows by 8
columns.

Keysight Technologies 34972A Specifications

General

Brand	Keysight Technologies
Model	34972A
Category	Switch
Language	English
