Keysight Technologies M9036A User Manual

Keysight M9036A PXIe Embedded Controller User Guide 3
M9036A at a Glance Introduction

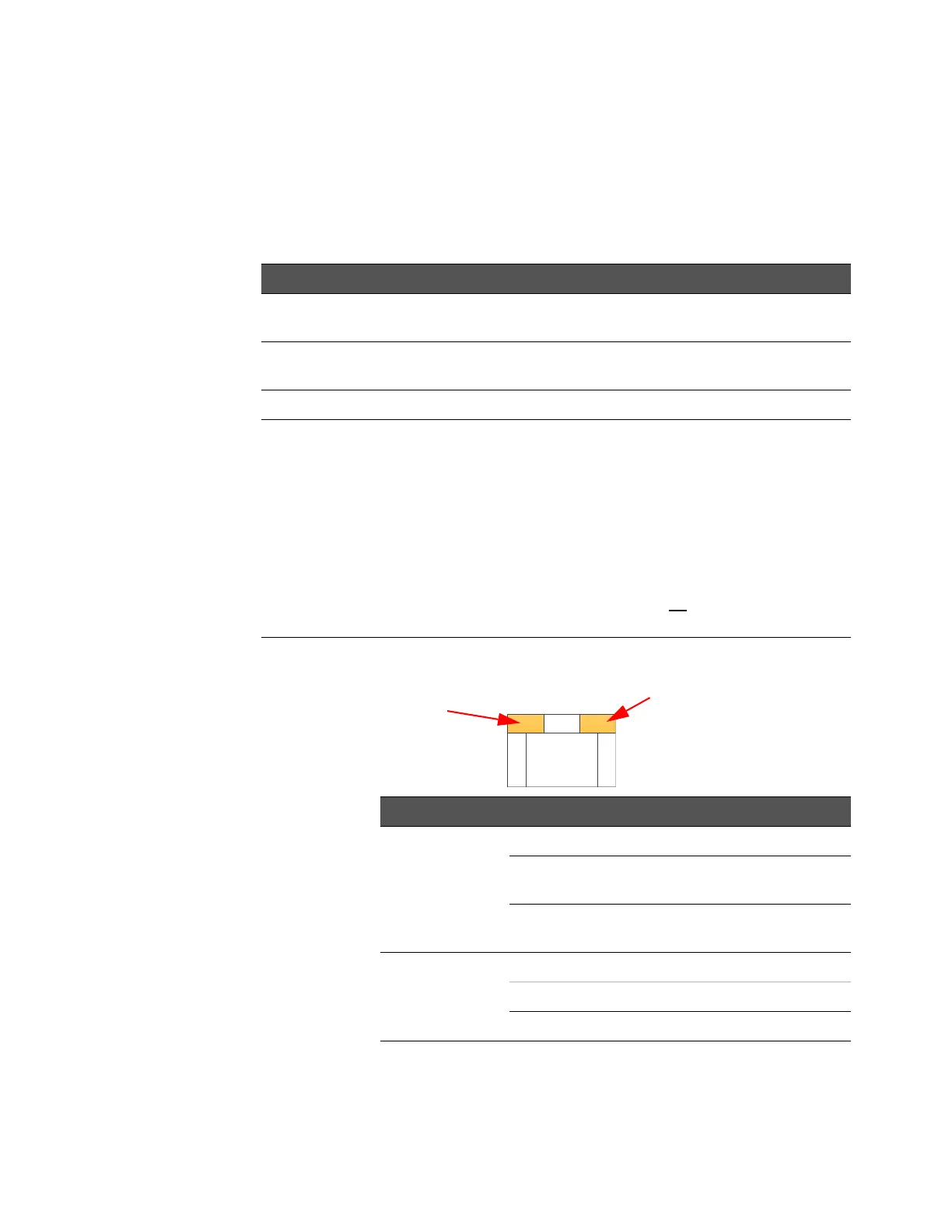

Front panel LED indicators
The following table lists the LEDs on the front panel and a brief description of
their use and what they indicate.
Gigabit Ethernet (GbE) connector LED
* WD stands for Watchdog Timer and is not implemented in the M9036A. However, it is possible for this LED to
turn on because of activity on the SMBus. Reboot the M9036A to turn the LED off.
LED Indicator Color Description
PWR Green If the LED is on, the power supply to the controller is good
and the system should boot.
SSD Yellow When the Solid State Drive (SSD) is active, the LED will
flash.
WD Red Not Used*
Status Blue
• If the LED is on and then turns off during system boot,
then the system status is normal.
• If the LED continues blinking or stays on, it indicates
the system is not able to shut down properly. When the
chassis Inhibit switch is in the Manual position, a
controller shutdown results in a Microsoft Windows
shutdown; however, the controller is not able to shut
down the chassis power supply. As a result, the LED
remains on until the Inhibit pin is pulsed low (thus
cycling the power supply) OR
the chassis power button
is pressed again causing Microsoft Windows to reboot.
LED Status Description
Active/Link LED
(yellow)
Off Ethernet port is disconnected
On Ethernet port is connected but
no data transmission
Flash Ethernet port is connected and
is transmitting/receiving data
Speed LED
Off 10Mbps
Green 100Mbps
Amber 1000Mbps
RJ-45
LED2: Speed and
Link 1Gbps: Amber
100Mbps: Green
LED1: ACT
Blinking when
accessing IO
