Keysight M9036A PXIe Embedded Controller User Guide 7
M9036A Functional Description Introduction

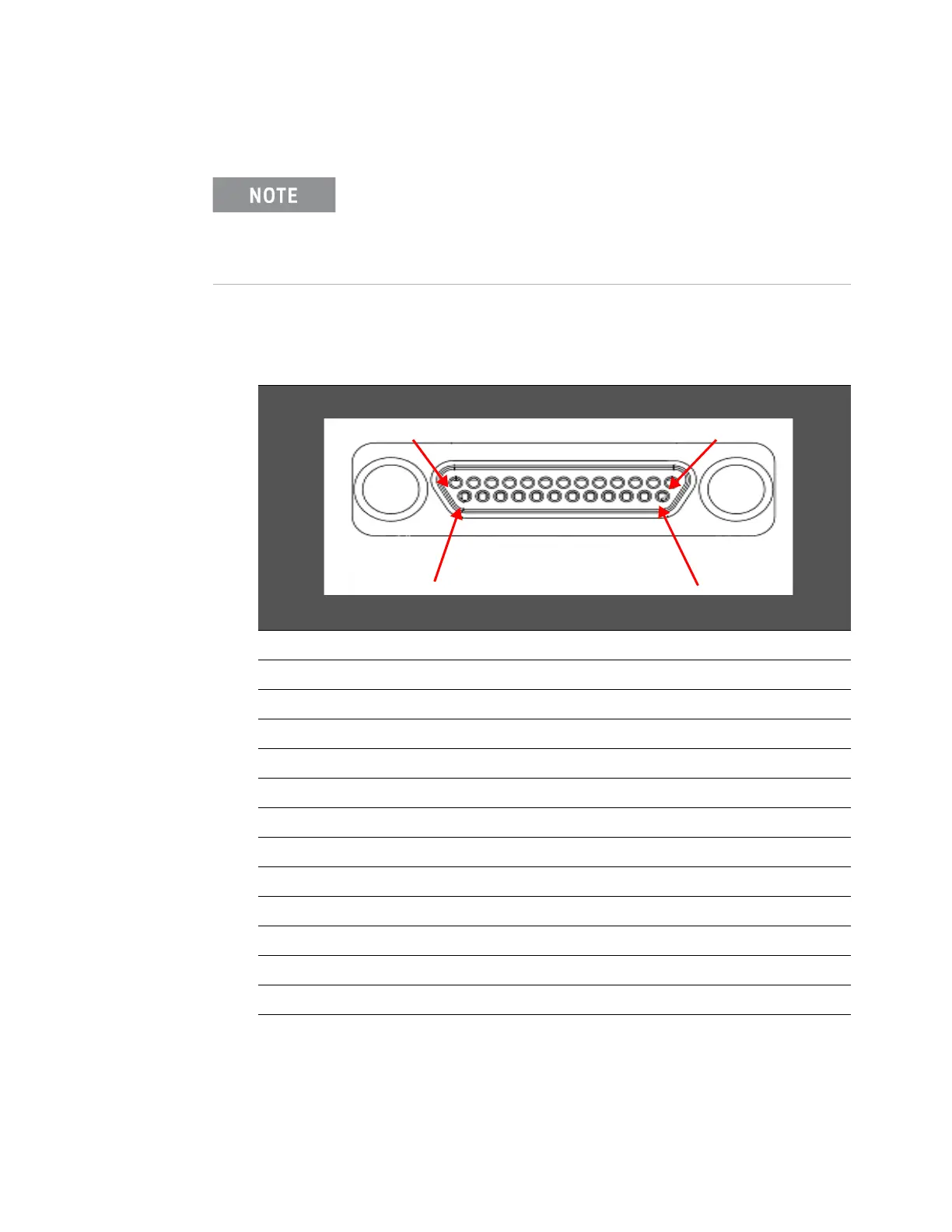

The following table provides the pin-out of the front panel micro D-sub 25-pin
GPIB connector.
Because there is no industry standard for the front panel micro
D-sub 25-pin GPIB connector, interoperability cannot be
guaranteed with other similar GPIB cables. A replacement adapter
cable may be ordered from Keysight with the part number:
M9036-31301.
Pin Signal Description Pin Signal Description
1 DIO1# GPIB Data 1 14 DIO5# GPIB Data 5
2 DIO2# GPIB Data 2 15 DIO6# GPIB Data 6
3 DIO3# GPIB Data 3 16 DIO7# GPIB Data 7
4 DIO4# GPIB Data 4 17 DIO8# GPIB Data 8
5 EOI End or Identify 18 REN Remote Enable
6 DAV Data Valid 19 Ground Signal Ground
7 NRFD Not Ready for Data 20 Ground Signal Ground
8 NDAC Not Data Accepted 21 Ground Signal Ground
9 IFC Interface Clear 22 Ground Signal Ground
10 SRQ Service Request 23 Ground Signal Ground
11 ATN Attention 24 Ground Signal Ground
12 Chassis Ground Chassis Ground 25 Ground Signal Ground
13 Ground Signal Ground
1
13
14
25
