32 Keysight M9036A PXIe Embedded Controller User Guide
Using the Controller Chassis shutdown
6 Click OK to save and exit the settings and then close the Windows Device
Manager.
Wake on Magic Packet
*
This mode is not supported.
Wake on Magic Packet
*
from power off This mode wakes the M9036A from a
power off state (S5) when it receives a Magic Packet
*
.
Wake on Link If this is the only mode selected, it requires the controller to be
in sleep or hibernate mode. This mode is not supported. However, when checked
along with Wake on Magic Packet from power off, the M9036A will power on when
plugging a LAN cable into the Port 2 connector.
Wake on Pattern Match This mode is not supported.

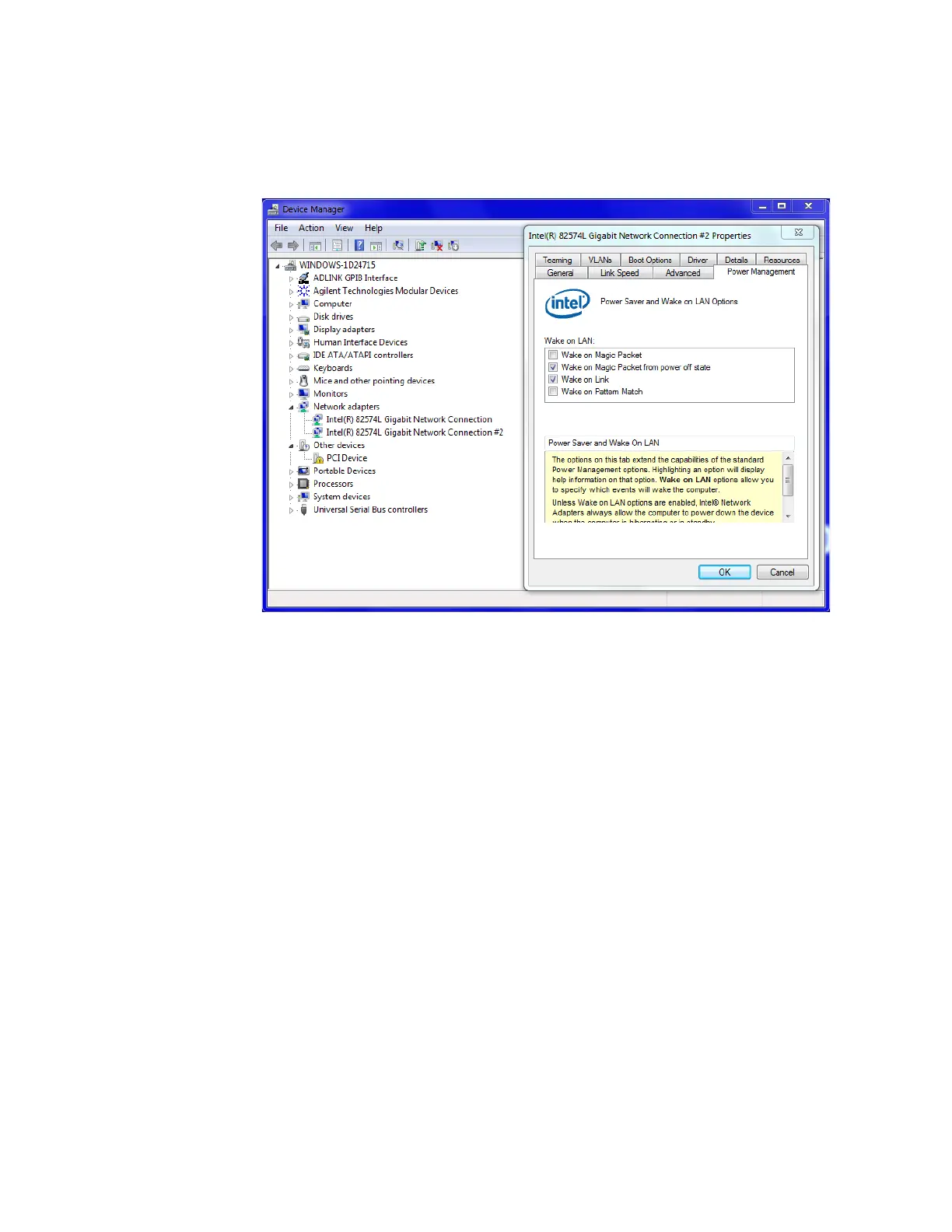

Figure 4 Set the Wake on LAN feature
* The Magic Packet is a broadcast (UDP) frame targeted to the controller. It contains 6 bytes of all 255
(FFFFFFFFFFFF in hexadecimal) followed by sixteen instances of the controller’s 48-bit MAC address, for a total
of 102 bytes. Typical ports for sending WoL Magic Packets are UDP 7 and 9. There are a number of free
network tools that can send WoL Magic Packets.
