86 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Optimizing Performance for All Models
Using the Dual Power Meter Display (with USB U2000A Series Power Sensors)
Using the Dual Power Meter Display
(with USB U2000A Series Power Sensors)
The dual power meter display can be used to display the current frequency and power of either one
or two power sensors. The display outputs the current frequency and power measured by the power
sensors in the larger center display and in the upper right corner of the display. Refer to Figure 5-2,
Figure 5-2, and Figure 5-3.

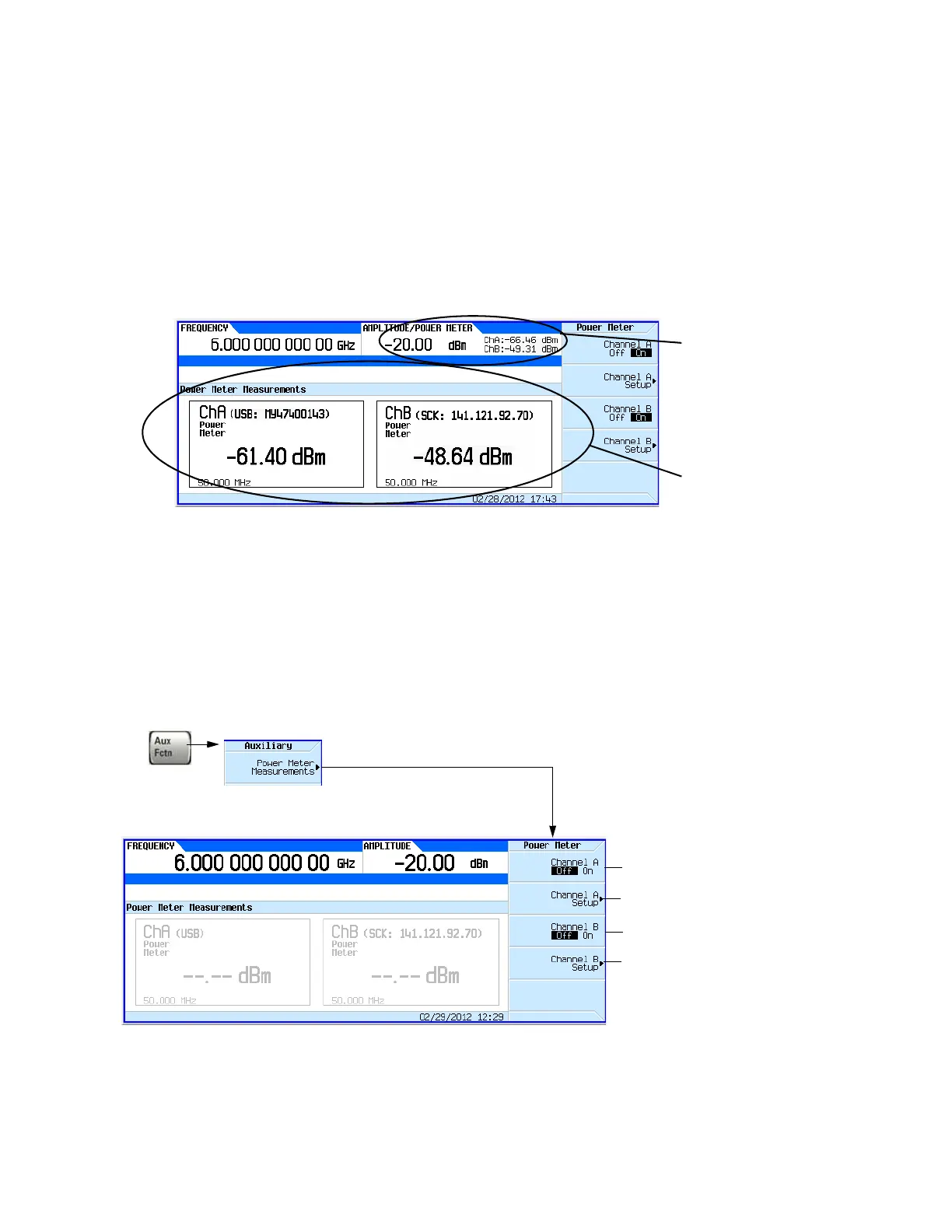

Figure 5-1 Dual Power Meter Display with Power Sensors A and B Calibrated
Figure 5-2 Dual Power Meter Display Menu
Once turned on, the
power meter
readings are always
visible, even if
another instrument
feature is selected
(i.e. Sweep, AM,
etc.).
This area is the main
display for the dual
power meter
calibration frequency
and current power
measured.
If channel A or
channel B power
sensors or both are
displayed, and the
AMPTD or the FREQ
softkeys are pressed,
the large power
meter measurements
remains displayed.
After the first
connection, if the
connection is
successful, the
model number and
serial number of the
power sensor is
displayed.
For details on each key, use key help as described on page56.
See page87
Enables the power sensor on
channel A.
Enables the power sensor on
channel B.
Channel B is configured similarly to
channel A. See page87
For details on each key, use key help
as described on page56.
