42 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Setting Preferences & Enabling Options for All Models

How to Set User Preferences

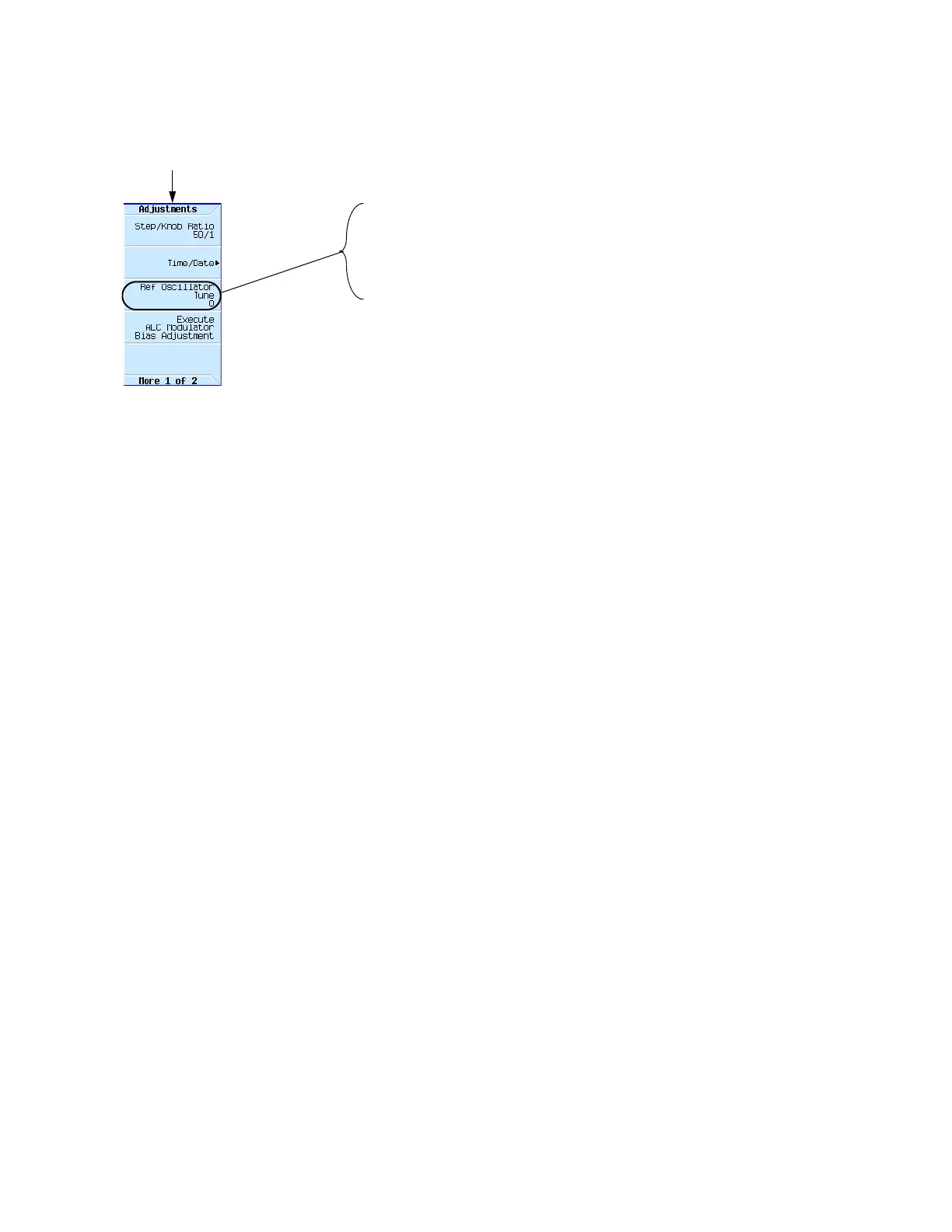

Reference Oscillator Tune

Tunes the internal VCTXCO oscillator frequency.

The user value offsets the factory tuned value (the value is added to the

factory calibrated DAC value). The tune value of 0 sets the factory

calibrated value.

The range; –8192 to 8192, can be set by using the front panel keypad,

knob or remote command.

For details on each key, use key help

as described on page56.

See also the SCPI Command Reference.

Utility > Instrument Adjustments

Default Chapter5
