420 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and
653/655/656/657
Clock Timing
Clock Timing
This section describes how clocking for the digital data is provided. Clock timing information and
diagrams are supplied for the different port configurations (serial, parallel, or parallel interleaved
data transmission) and phase and skew settings. All settings for the interface module are available
on the signal generator user interface (UI).
Clock and Sample Rates
A sample is a group of bits where the size of the sample is set using the Word Size softkey. The
clock is the signal that tells when the bits of a sample are valid (in a non-transition state). The clock
and sample rates are displayed in the first-level and data setup softkey menus. The clock rate and
sample rate are usually the same. They will differ when serial mode is selected, or when there are
multiple clocks per sample.

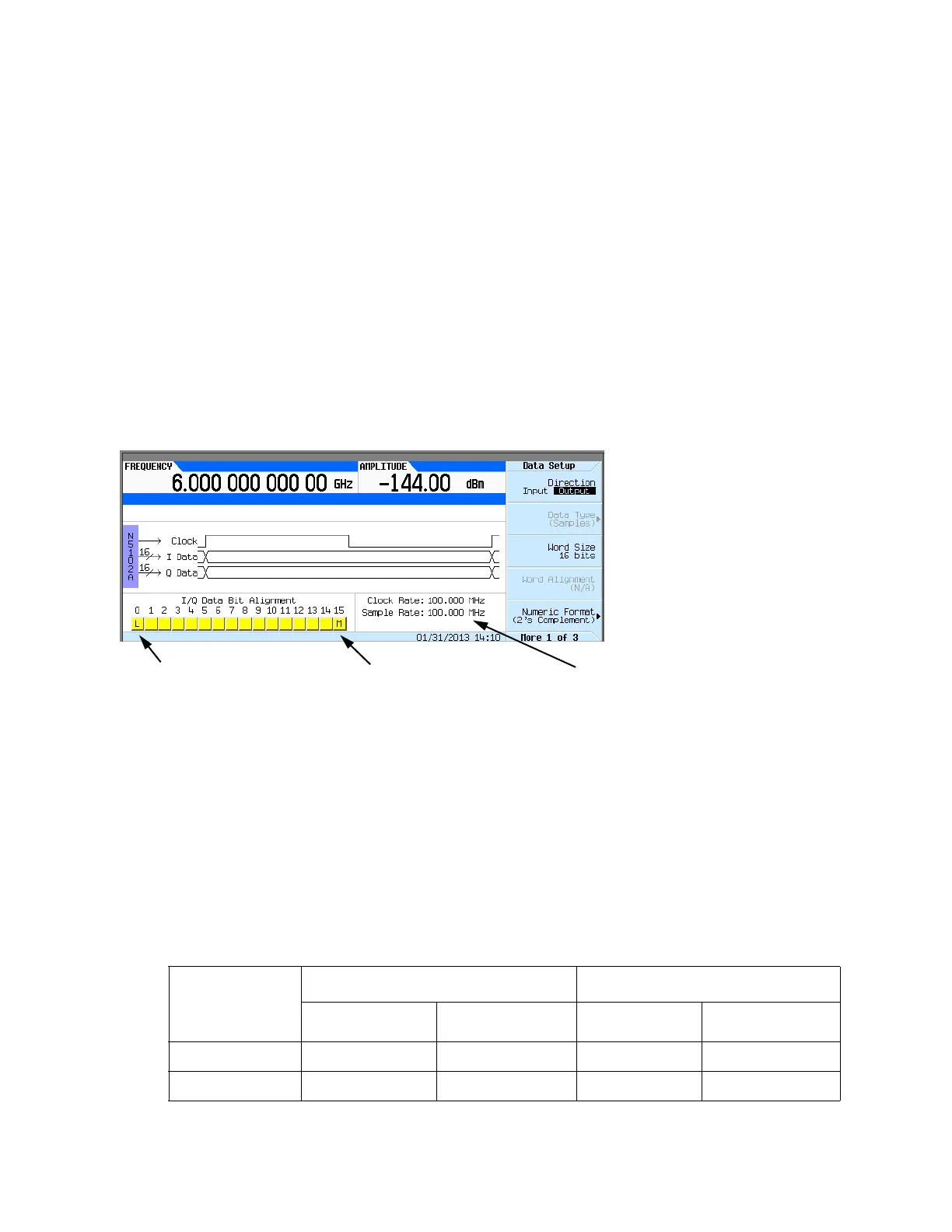

Figure 17-1 Data Setup Menu for a Parallel Port Configuration
The N5102A module clock rate is set using the Clock Rate softkey and has a range of 1 kHz to
400 MHz. The sample rate is automatically calculated and has a range of 1 kHz to 200 MHz. These
ranges can be smaller depending on logic type, data parameters, and clock configuration.
Maximum Clock Rates
The N5102A module maximum clock rate is dependent on the logic and signal type. Table 17-1 and
Table 17-2 show the warranted rates and the maximum clock rates for the various logic and signal
types. Notice that LVDS in the output mode using an IF signal is the only logic type where the
warranted and maximum rates are the same.
Table 17-1 Warranted Parallel Output Level Clock Rates and Maximum Clock Rates
Logic Type
Warranted Level Clock Rates Maximum Clock Rates (typical)
IQ Signal Type
IF Signal Type
1
IQ Signal Type IF Signal Type
LVTTL and CMOS 100 MHz 100 MHz 150 MHz 150 MHz
LVDS 200 MHz 400 MHz 400 MHz 400 MHz
Clock and sample rates
Least significant bit
Most significant bit
