50 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Setting Preferences & Enabling Options for All Models

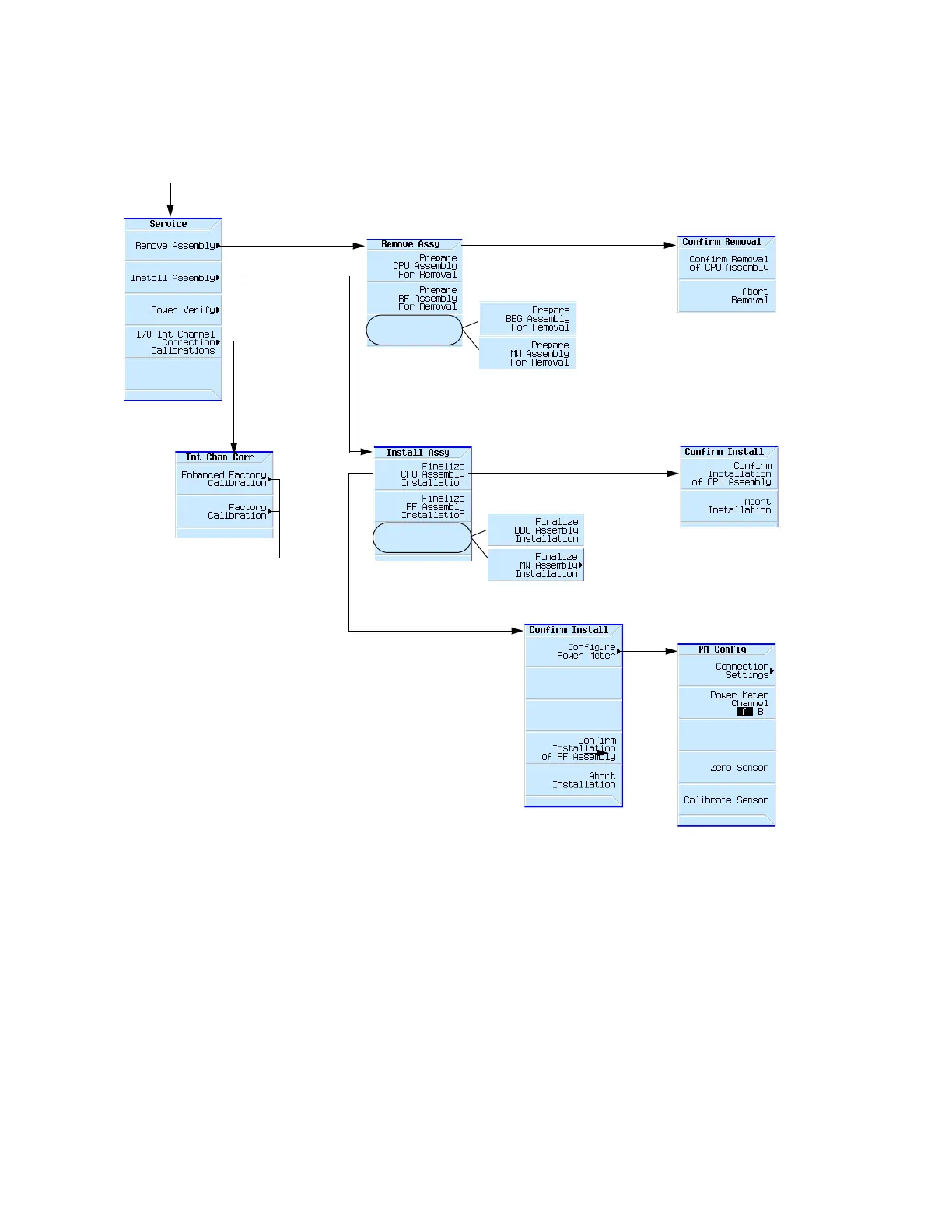

Hardware Assembly Installation and Removal Softkeys

Utility > More 2 of 2 >

For details on each key, use key help

as described on page56.

Verify output attenuator

operation using a power

meter at the RF Output.

Select either Enhanced Factory

Calibration or Factory Calibration

to calibrate your instrument.

The Enhanced Factory

Calibration requires a spectrum

analyzer in addition to a power

meter.

The Factory Calibration uses only

a power meter.

Whether a softkey

is available depends

on the model of signal

generator.

Whether a softkey is

available depends on

the model of signal

generator.
